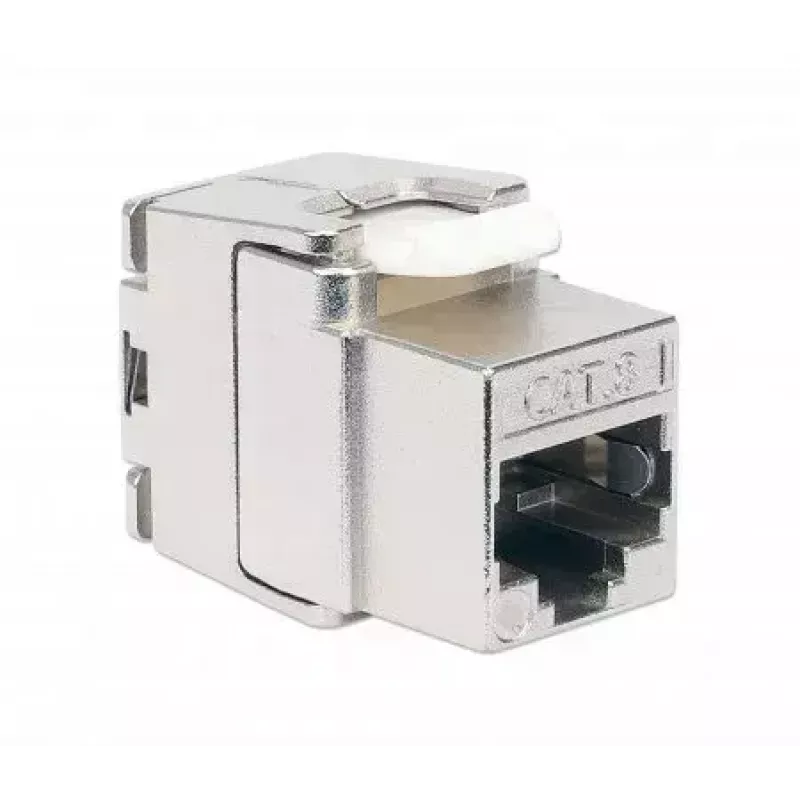

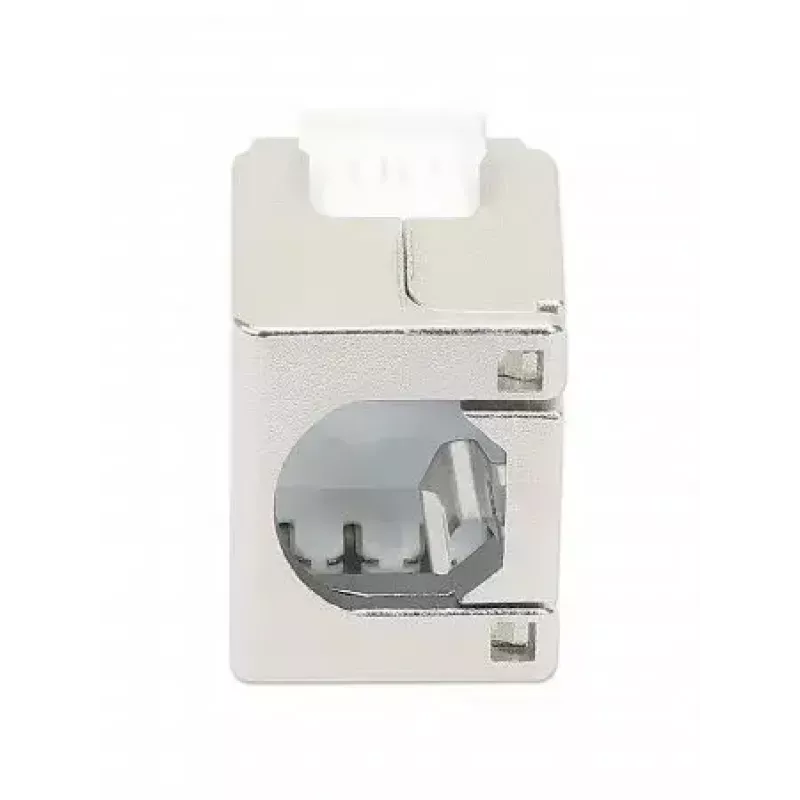

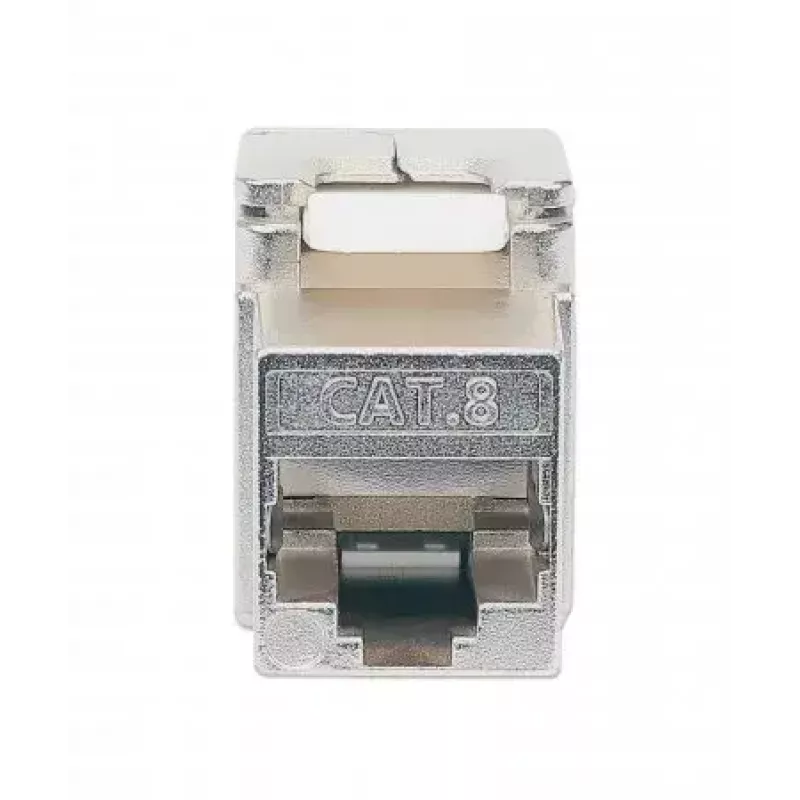

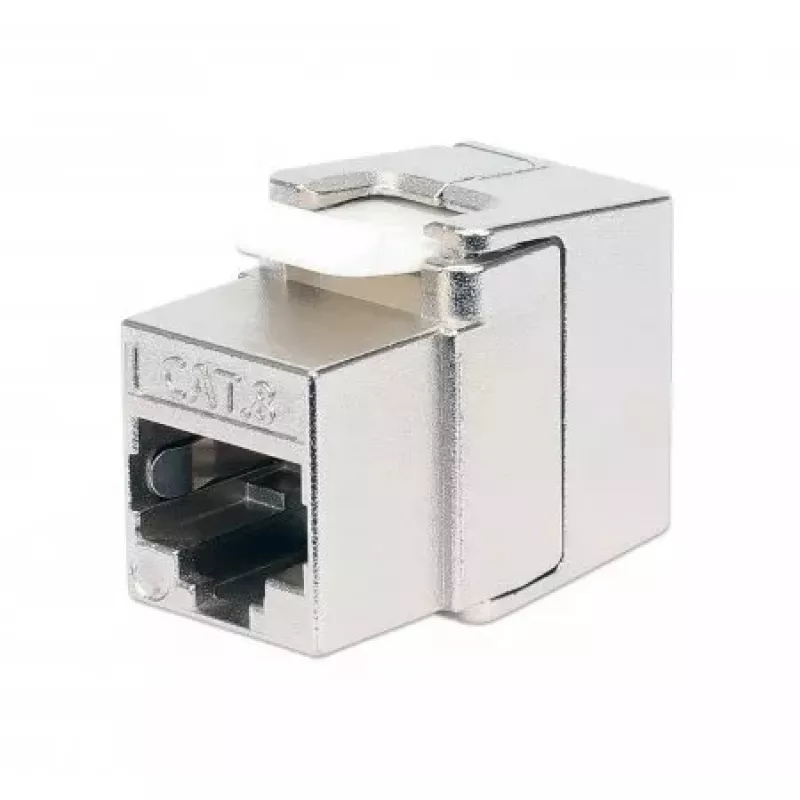

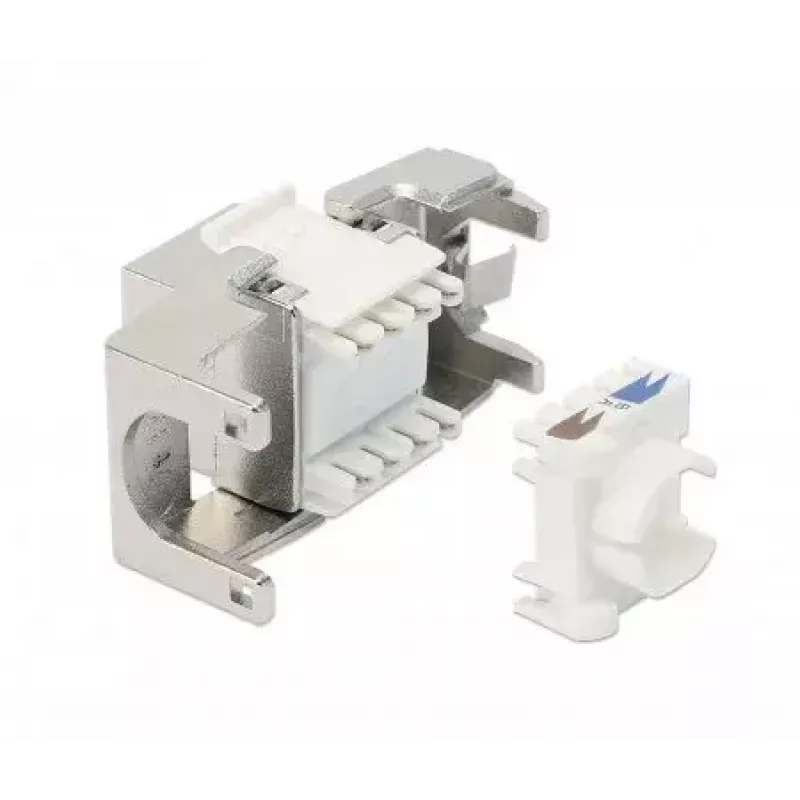

Keystone Jack RJ-45 sin herramienta apantallado Intellinet Cat8.1 40G plateado

The Intellinet Cat8.1 40G Shielded Toolless Keystone Jack RJ-45 in silver provides a compact, flat design with a metal housing and gold-plated contacts for high signal integrity. Designed for data center use, it snaps into blank patch panels, wall plates or surface connection boxes without special tools and supports both stranded and solid conductor cables for high-speed Ethernet applications up to 25GBase-T and 40GBase-T, including PoE up to IEEE 802.3bt (PoE++ / 4PPoE / Ultra PoE).

Advantages

This keystone jack offers 360° STP shielding and gold-plated contacts to maximise signal quality and reduce interference. Its toolless snap-in design enables fast deployment in Top of Rack (ToR) and Middle of Row (MoR) installations, while the metal housing and flat construction make it suitable for space-constrained environments. Compatible with both stranded and solid cables, it supports high-performance network and PoE applications.

Suitable for

• Data center Top of Rack (ToR) and Middle of Row (MoR) patching
• Patch panels, wall plates and surface-mount connection boxes
• High-speed Ethernet up to 25GBase-T and 40GBase-T
• Power over Ethernet deployments up to IEEE 802.3bt (PoE++ / 4PPoE)

Key specifications

• Standard: Cat8.1, supports 25GBase-T and 40GBase-T
• Connector: RJ-45
• Shielding: 360° STP
• Contacts: Gold-plated
• Compatibility: Stranded and solid conductor cables
• Colour: Silver
• Dimensions (W×D×H): 16.2 mm × 30.1 mm × 22.9 mm
• Weight: 0.02 kg

How to use

Terminate the network cable to the keystone jack according to the wiring colour code used (T568A or T568B). Insert the terminated module into a compatible blank patch panel, wall plate or surface-mount box until it snaps into place; no special tools are required. Ensure the cable shield is properly terminated to the jack housing to maintain 360° STP continuity and verify connections with appropriate network testers before deploying into production.

Recommendations

For optimal performance, use compatible Cat8.1 or high-quality Cat6A+/Cat7 cables and maintain correct shielding termination. Install in environments supporting higher-speed PoE power budgets when deploying devices requiring IEEE 802.3bt levels.
