Keystone Jack ROLINE Cat.6/Class E 26.11.0377 plateado

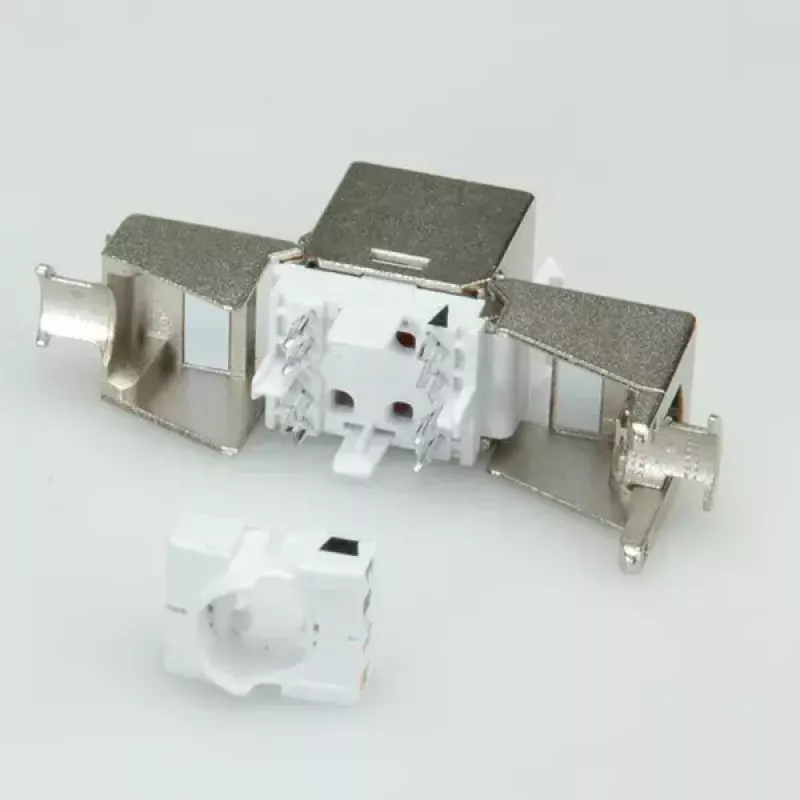

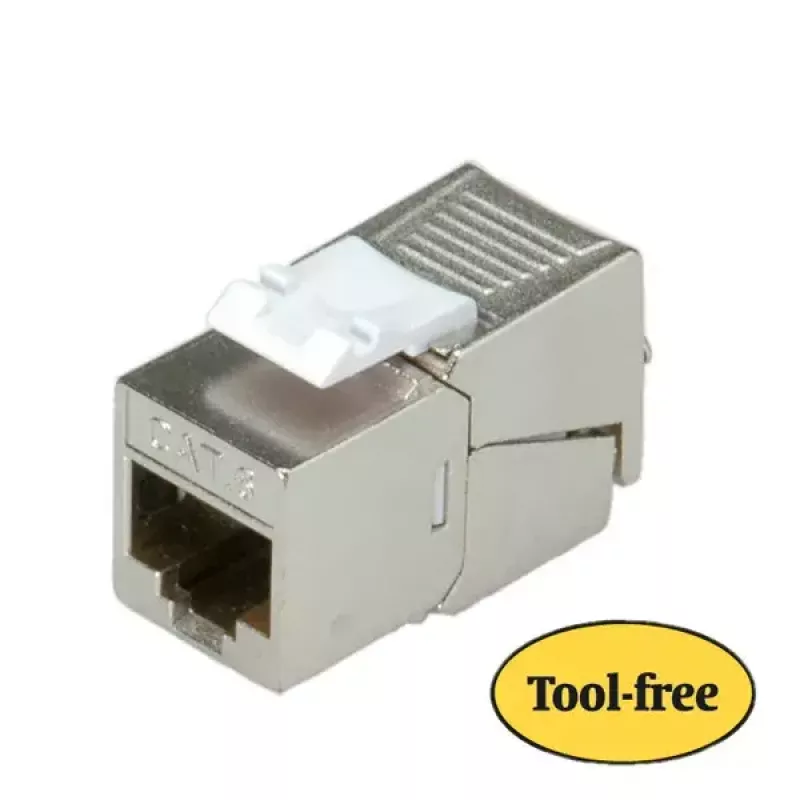

The ROLINE Cat.6/Class E 26.11.0377 silver keystone jack is a shielded, toolless RJ-45 connection module designed for use in shielded Cat.6/Class E structured cabling systems. It fits into 19" keystone patch panel frames and compatible flush-mount wall jacks and supports standard EIA/TIA 568 colour coding. The compact silver body is suited for installations where space is limited and where a shielded connection is required.

Advantages

This keystone jack provides a shielded termination for Cat.6/Class E cabling without the need for tools during assembly, reducing installation time. It is colour-coded to the EIA/TIA 568 standard for straightforward wiring and is compatible with standard RJ-45 patch panels and wall plates. The jack has been validated by the manufacturer in a 100 m channel to meet Class E performance.

Suitable for

• Shielded Cat.6/Class E structured cabling installations
• 19" keystone patch panel frames (use panel frame sold separately)
• Flush-mount wall jacks and keystone-compatible outlets
• Network setups requiring shielded RJ-45 terminations up to Class E

Key specifications

• Model: ROLINE Cat.6/Class E Keystone Jack, MPN 26.11.0377
• Connector type: RJ-45 keystone, shielded
• Cabling class: Cat.6 / Class E
• Assembly: Toolless
• Colour coding: EIA/TIA 568 standard
• Colour (housing): Silver
• EAN: 7611990111008

How to use

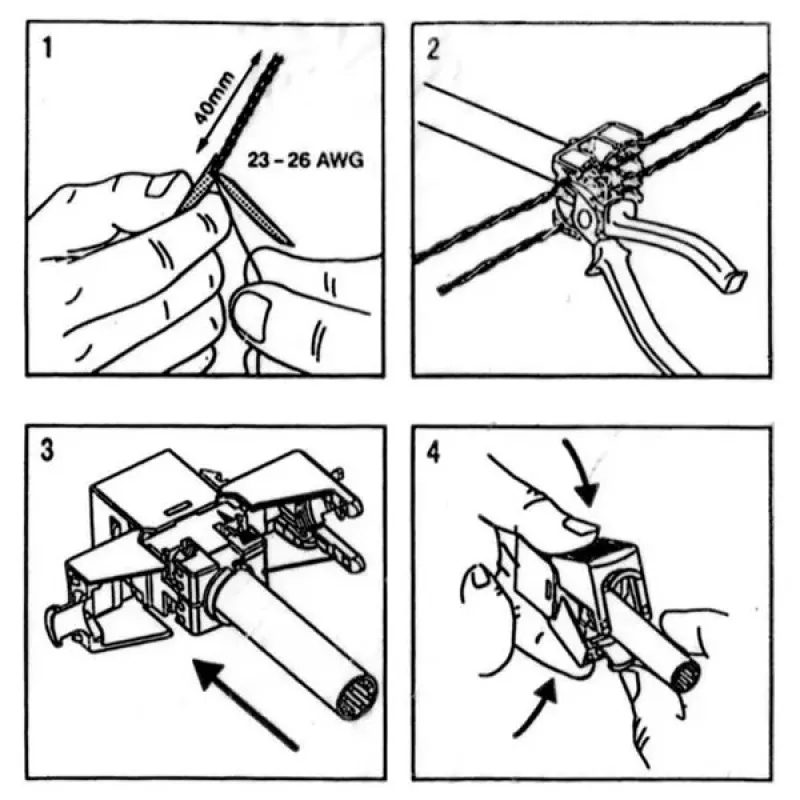

Insert the shielded Cat.6 cable conductors into the keystone jack according to the EIA/TIA 568 wiring colour code printed on the jack, then complete the toolless assembly to secure the wires. Snap the populated keystone jack into a compatible 19" keystone patch panel frame or an unloaded flush-mount wall jack. Connect standard shielded RJ-45 patch cords to the jack for network links.

Recommendations

For a complete shielded Cat.6/Class E installation use ROLINE S/FTP Cat.6 cable (solid AWG23), compatible unloaded flush-mount wall jacks and a shielded 19" keystone patch panel. The manufacturer's tests confirm Class E compliance in a 100 m channel when used with matching ROLINE components.
