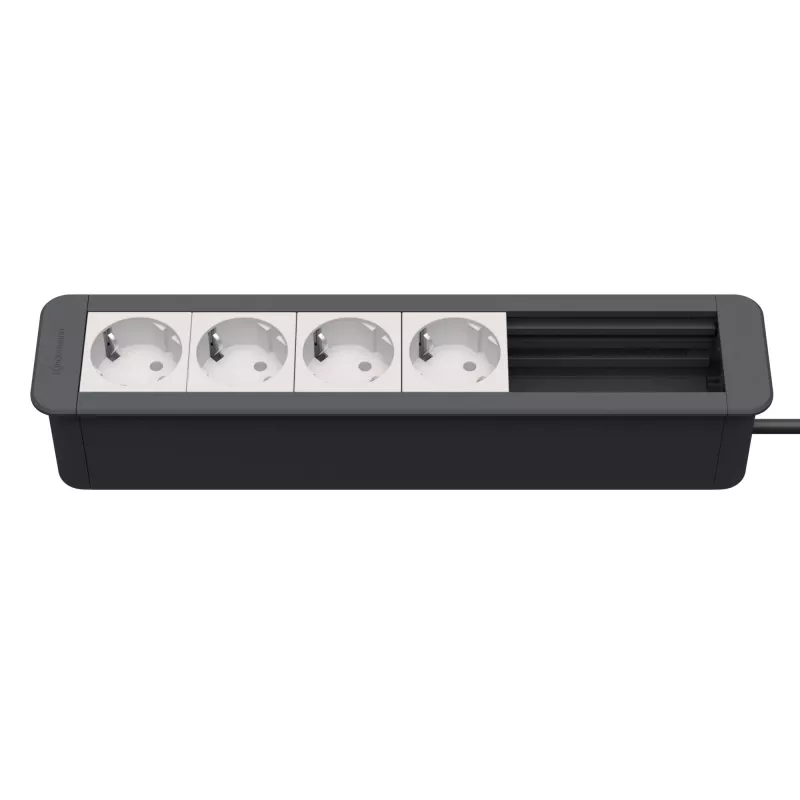

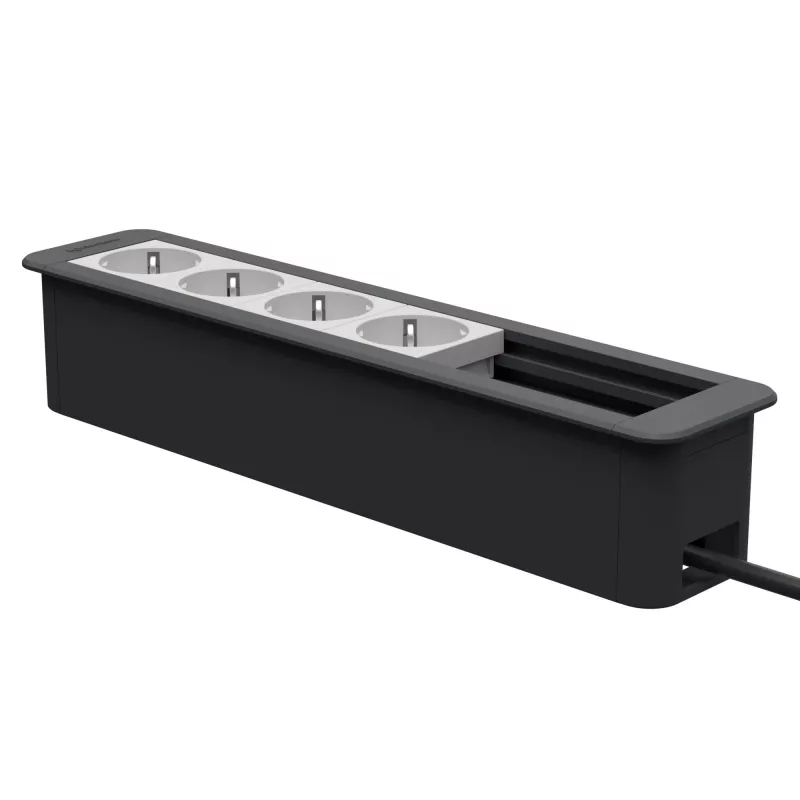

Kindermann CP Office Frame 6 tomas 4x alimentación (7551000304)

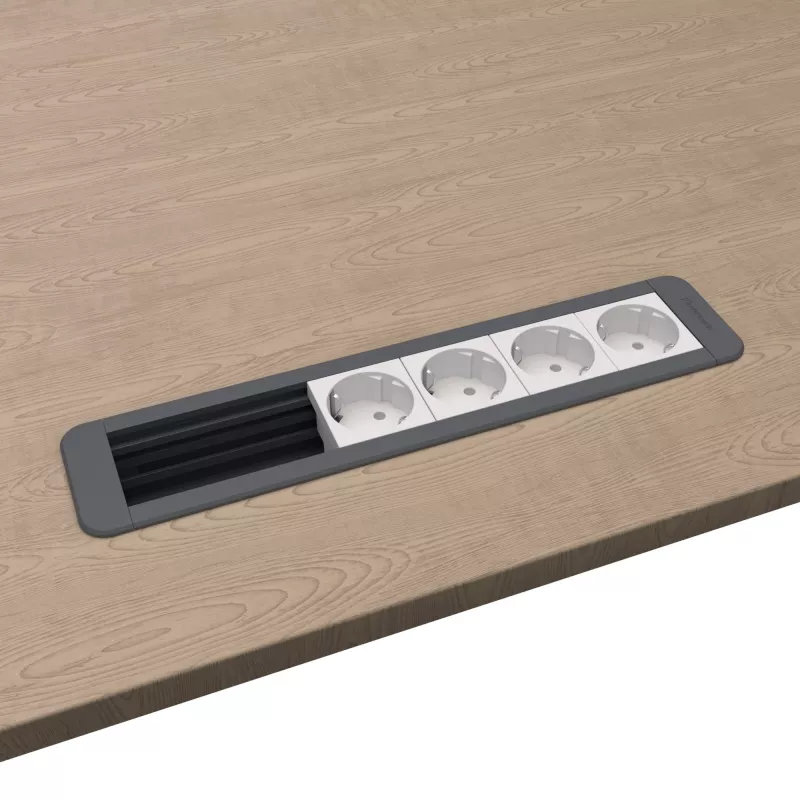

The Kindermann CP Office Frame 6-fold is a high-quality table connection panel designed for modern office and conference room environments. This flush-mount frame accommodates up to six modules and comes pre-equipped with four Schuko power sockets (CEE 7/3), leaving two empty slots for additional modules such as data, USB, or AV connections. The robust aluminum frame in silver with black modules ensures a professional appearance and long-lasting durability.

Advantages

• Space-saving design: integrates power and data connections directly into the table surface
• Flexible configuration: two empty module slots allow customization with Kindermann CablePort Office modules
• High-quality materials: aluminum frame and robust power components ensure reliability
• Easy installation: flush mount with clear cutout dimensions (188 x 128 mm) and 80 mm installation depth
• Safety certified: CE compliant with angled Schuko plug for low-profile connection

Suitable for

• Office desks and workstations
• Conference and meeting tables
• Training rooms and collaborative spaces
• Any environment requiring integrated power and data access

Key specifications

• Product Type: Table Connection Panel
• Number of Module Slots: 6
• Included Power Sockets: 4 x Schuko (CEE 7/3)
• Empty Module Slots: 2
• Mounting Type: Flush Mount
• Frame Material: Aluminum
• Frame Color: Silver
• Module Color: Black
• Power Input: 230V AC, 50/60 Hz
• Max Current Rating: 16 A
• Power Cable Length: 3 meters
• Power Cable Type: H05VV-F 3G1.5mm²
• Power Plug Type: Angled Schuko (CEE 7/7)
• Table Cutout Dimensions: 188 x 128 mm
• Installation Depth: 80 mm
• Compatibility: Kindermann CablePort Office modules
• Certifications: CE compliant

Recommendations

For a complete solution, pair this frame with Kindermann CablePort Office modules for USB, HDMI, or network connectivity. Ensure the table cutout is precisely 188 x 128 mm and the installation depth is at least 80 mm. Professional installation is recommended for flush-mount applications.
