Kindermann Módulo de interfaz OPS para pantallas TD-11xx/TD-12xx

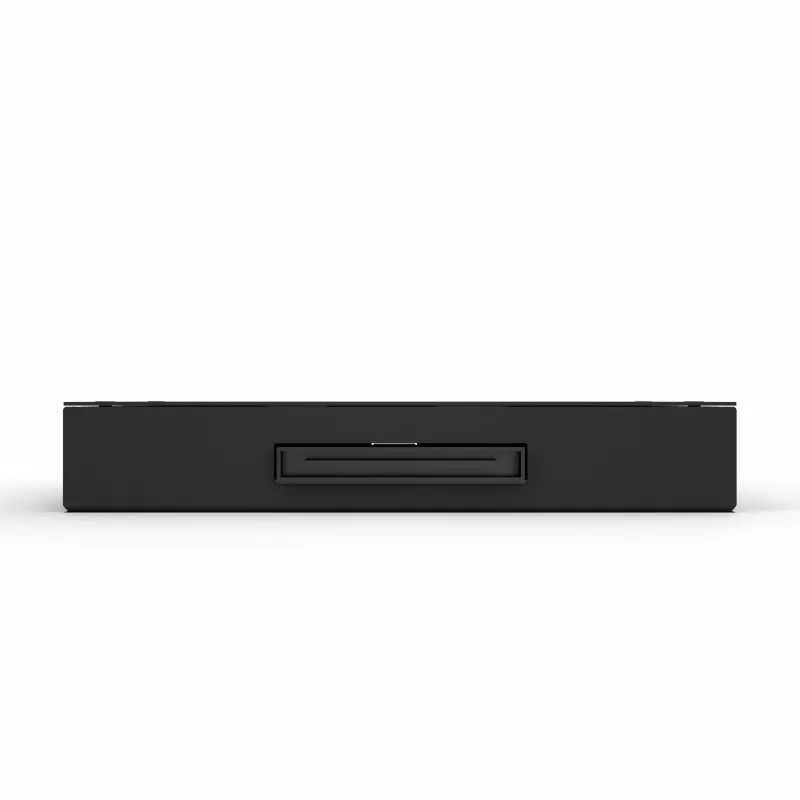

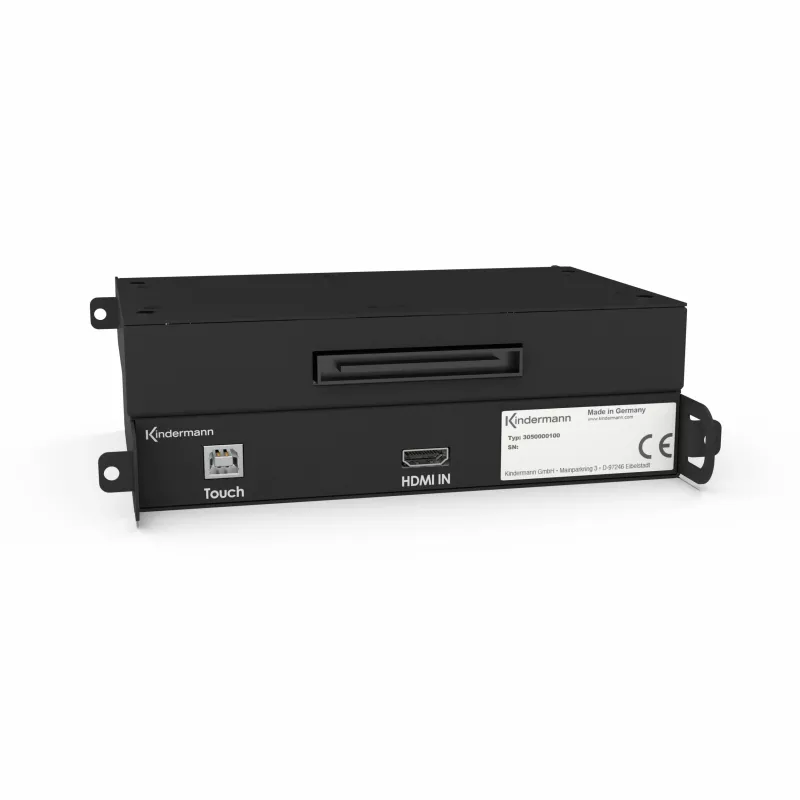

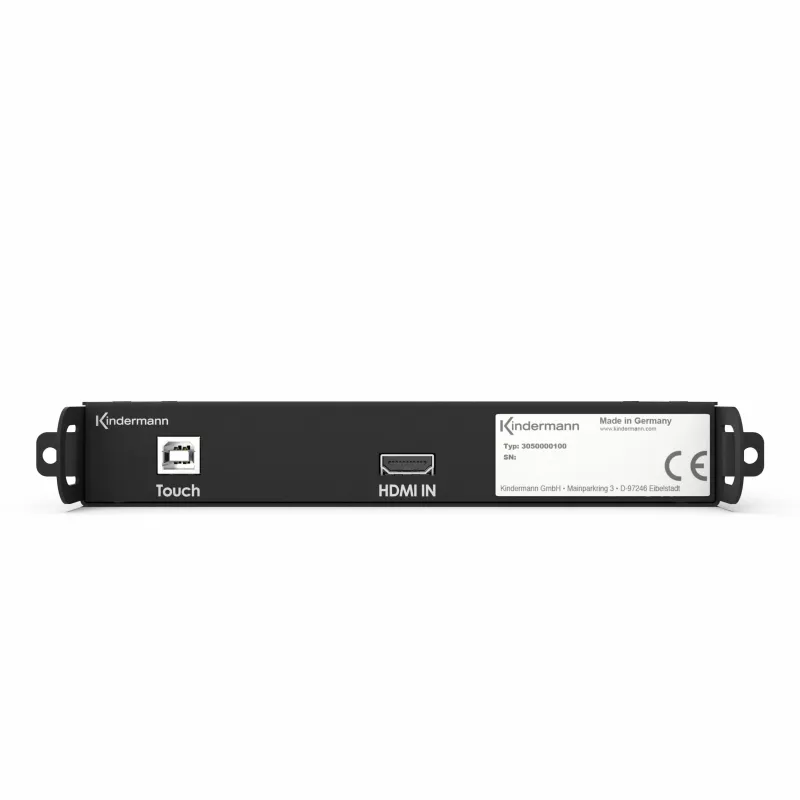

The Kindermann OPS Interface Module (model 3050000103) is a high-performance connectivity solution designed specifically for Kindermann TD-11xx and TD-12xx series displays. This module adheres to the Open Pluggable Specification (OPS) standard, enabling seamless integration and enhanced functionality for digital signage, interactive displays, and conference room applications.

Advantages

This OPS interface module provides a simple plug-and-play upgrade path, allowing you to expand the connectivity options of your compatible Kindermann display without the need for external adapters or messy cables. It supports ultra-high-definition video up to 4K UHD (3840x2160) via HDMI and DisplayPort inputs, ensuring crisp and clear visuals. The module also includes multiple USB ports, an RJ45 Ethernet port, and an RS232 control port, making it ideal for interactive and networked environments.

Suitable for

• Digital signage installations requiring reliable and high-bandwidth connectivity
• Interactive displays in education, corporate, and retail settings
• Conference rooms needing seamless integration with presentation systems
• Any Kindermann TD-11xx or TD-12xx display user looking to enhance functionality

Key specifications

• Product Type: OPS Interface Module
• Interface Standard: Open Pluggable Specification (OPS)
• Compatibility: Kindermann TD-11xx and TD-12xx series displays
• Video Input: 1x HDMI, 1x DisplayPort
• Data Ports: 2x USB 3.0, 2x USB 2.0, 1x RJ45 Ethernet
• Audio Port: 1x 3.5mm Audio Jack
• Control Port: 1x RS232
• Power Supply: Via OPS slot from display
• Video Resolution Support: Up to 4K UHD (3840x2160)
• Plug & Play: Yes
• Operating System Support: OS Independent
• Housing Material: Metal / Plastic
• Color: Black

Recommendations

For optimal performance, ensure your Kindermann display is compatible with OPS modules. This interface module is designed to work exclusively with TD-11xx and TD-12xx series displays. No additional drivers or software are required for basic operation.
