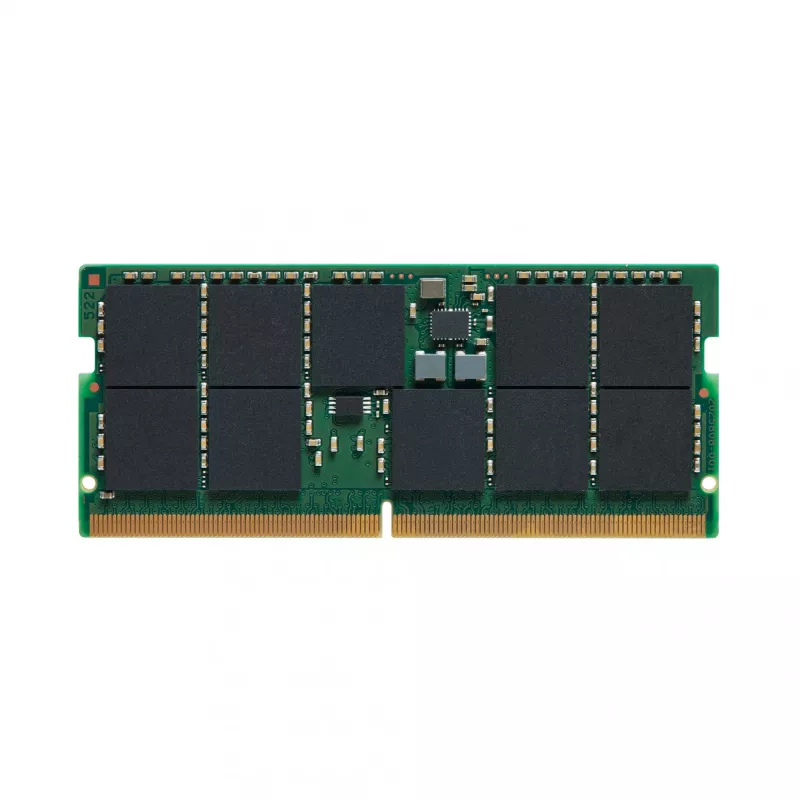

Kingston KSM56T46BD8KM-32HA Memoria de servidor DDR5 32 GB 1 x 32 GB 5600 MHz SO-DIMM de 262 pines KSM56T46BD8K

The Kingston KSM56T46BD8KM-32HA is a 32GB DDR5-5600 ECC SO-DIMM memory module designed for server applications. It is organized as 4G x 72-bit with parity (2R x8) and built from twenty 2G x 8-bit FBGA components. The module uses a 262-pin SO-DIMM connector with gold contact fingers and is programmed to JEDEC DDR5-5600 timing of 46-45-45 at 1.1V to ensure compatibility with systems supporting standard DDR5 timings.

Advantages

This Kingston 32GB DDR5 5600MHz ECC module provides error-correcting code (ECC) support to improve data integrity and reduce the risk of memory-related errors in critical server workloads. With DDR5-5600 speed and CAS latency CL46, it delivers higher bandwidth compared with previous generations while maintaining standard JEDEC timings. The 262-pin SO-DIMM form factor allows installation in compact server systems and compatible workstations.

Suitable for

• Enterprise and rack servers that require ECC memory
• Small form factor servers and compact workstations using 262-pin SO-DIMM
• Database, virtualization, and other critical applications needing reliable memory

Key specifications

• Capacity: 32 GB
• Type: DDR5 SDRAM
• Speed: 5600 MHz (DDR5-5600)
• CAS Latency: CL46 (timings 46-45-45)
• ECC: Yes (parity, 72-bit width)
• Organization: 4G x 72-bit, 2Rx8
• Components: twenty 2G x 8-bit FBGA
• Form factor: 262-pin SO-DIMM
• Voltage: 1.1 V
• Color: Black, Green
• Manufacturer part number (MPN): KSM56T46BD8KM-32HA
• EAN: 0740617335989

How to use

Power down the system and disconnect it from its power source before installing the module. Locate the SO-DIMM slot on the motherboard or server module bay, align the notch in the 262-pin SO-DIMM with the slot, insert the memory module at a slight angle, and press down until the side clips engage. Reconnect power and start the system; verify that the BIOS/UEFI and operating system recognize the 32GB DDR5 module and that ECC is enabled if required by the platform.

Recommendations

Install memory modules in matched pairs or according to the server manufacturer's recommended population rules. Use the latest BIOS/UEFI updates to ensure DDR5-5600 timing compatibility. For systems requiring maximum data integrity, enable ECC in firmware and validate memory operation with manufacturer diagnostic tools.
