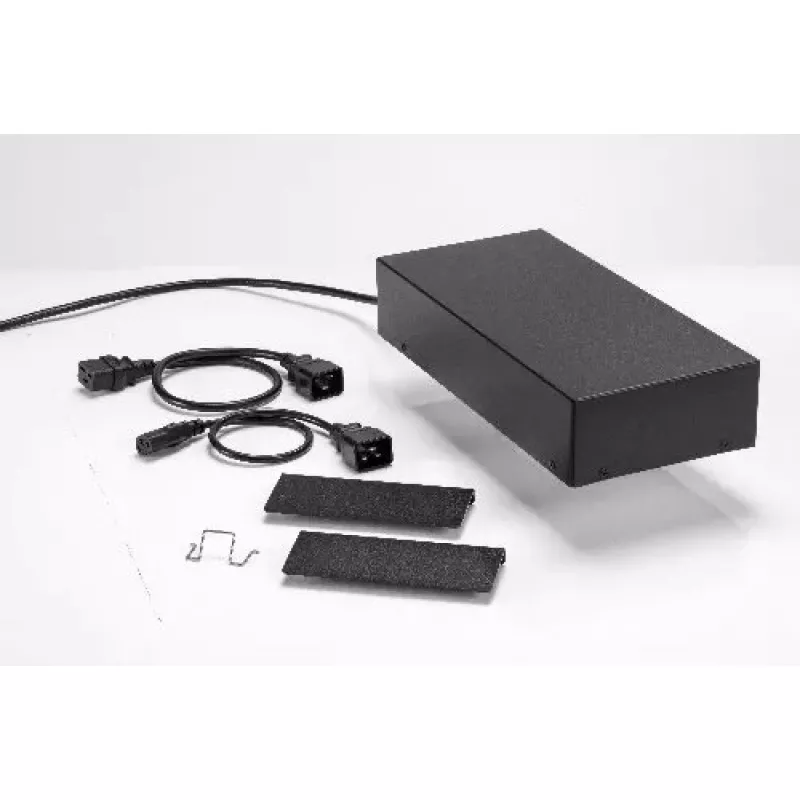

Kit de instalación EATON 9SXIK3KI para Eaton 9SX 3000i Marine, negro, 440×370×80 mm

Installation kit EATON 9SXIK3KI is designed for mounting the Eaton 9SX 3000i Marine UPS in Marine & Offshore environments. The black steel and plastic kit (440×370×80 mm) provides a stable fit and alignment for the UPS, simplifying installation and service access while matching the environmental requirements for coated boards and high-temperature compatibility.

Advantages

The kit is made of steel and plastic and is sized to accommodate the Eaton 9SX 3000i Marine, enabling secure attachment to decks, bulkheads or shelves. It includes vibration absorbers mounted under the UPS cabinet and is compatible with DNV-GL type approved 9SX Marine units, supporting reliable operation in marine conditions.

Suitable for

• Mounting Eaton 9SX 3000i Marine UPS in marine vessels
• Securing UPS on offshore platforms and installations
• Installation in confined technical spaces where stable alignment is required

Key specifications

• Model: EATON 9SXIK3KI
• Compatible UPS: Eaton 9SX 3000i Marine
• Material: steel and plastic
• Color: black
• External dimensions: 440 × 370 × 80 mm
• Includes vibration absorbers for mounting under the UPS cabinet
• Designed for Marine & Offshore environments; compatible with coated boards and high-temperature conditions

How to use

Position the installation kit at the chosen mounting location (deck, bulkhead or shelf) and secure it by bolting or welding according to shipyard or platform procedures. Place the Eaton 9SX 3000i Marine UPS onto the kit, align it for access and service, and fit the supplied vibration absorbers under the UPS cabinet. Follow the UPS manufacturer instructions for final electrical connections and commissioning.

Recommendations

Use certified marine-grade fasteners and follow DNV-GL and local installation regulations. Verify corrosion protection and high-temperature compatibility of surrounding structures, and inspect vibration absorbers during routine maintenance.
