Sistema de alimentación ininterrumpida Eaton Ellipse PRO 650 FR, SAI line-interactive, 0,65 kVA (400 W), 4 tomas tipo E, LCD, torre

The Eaton Ellipse PRO 650 FR is a line-interactive uninterruptible power supply (UPS) designed to protect workstations and small office equipment running demanding applications. With a capacity of 0.65 kVA (400 W), four Type E AC outlets and a C14 power inlet, this compact UPS provides automatic voltage regulation and built-in surge protection to ensure stable power and data-line protection for Ethernet, internet and telephone connections.

Advantages

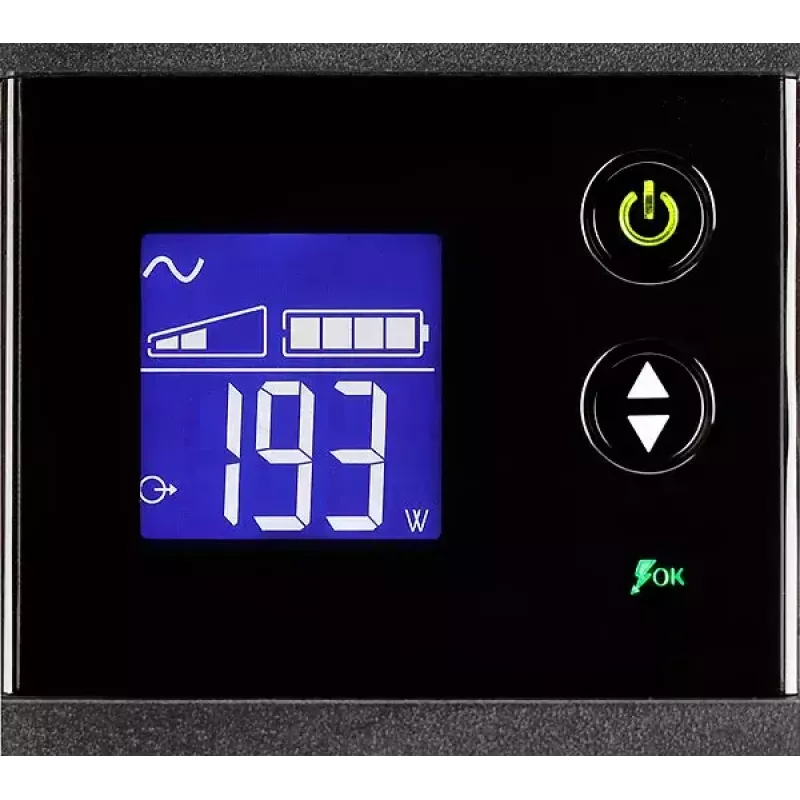

The UPS delivers clean output with Automatic Voltage Regulation (AVR) including both buck and boost functions, and features an LCD display for real-time status and measurements. EcoControl power outlets reduce standby energy use by up to 20% compared with previous generation models. The unit includes Advanced Surge Reduction compliant with IEC 61643-1, a USB port and Eaton UPS Companion software for safe system shutdown, energy metering and UPS configuration. Its extra-flat tower design and 2U rack compatibility allow flexible installation in office environments.

Suitable for

• Protecting desktop PCs and workstations running business or creative applications
• Securing small office networks and peripherals (printers, external drives)
• Providing short-term backup for orderly shutdowns (typical ~9 minutes at half load)
• Protecting data lines such as Ethernet, internet and telephone connections

Key specifications

• Output power: 400 W (0.65 kVA)
• AC outlets: 4 x Type E
• Input connector: C14
• Battery type: sealed lead-acid
• Typical backup time: ~9 minutes at 50% load
• USB: 1 x USB 2.0 port
• Standards: Advanced Surge Reduction compliant with IEC 61643-1; IEC/EN safety compliance
• Weight: 6.6 kg
• Colour: Black

How to use

Install the Eaton Ellipse PRO 650 FR in a ventilated location and connect protected equipment to the Type E outlets. Use the C14 input to connect mains power. Monitor status and measurements on the front LCD display and connect the USB port to a computer to enable Eaton UPS Companion software for controlled shutdowns, configuration and energy monitoring. During a mains failure the UPS provides AVR-corrected output and battery backup for orderly shutdown of connected devices.

Recommendations

For reliable operation, place the UPS on a stable surface, avoid placing it in direct sunlight or near heat sources, and perform periodic battery checks. Use the EcoControl outlets to switch off non-essential peripherals to reduce energy consumption. Configure shutdown parameters in Eaton UPS Companion according to your system’s requirements.
