Kit de montaje Alphacool Eiszapfen adaptador en ángulo doble 45° giratorio

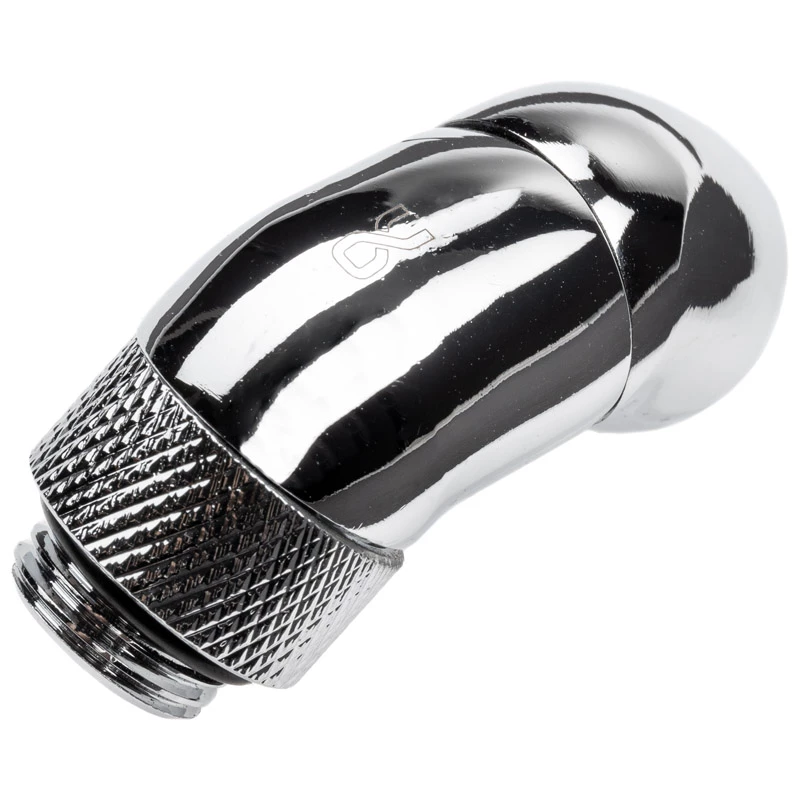

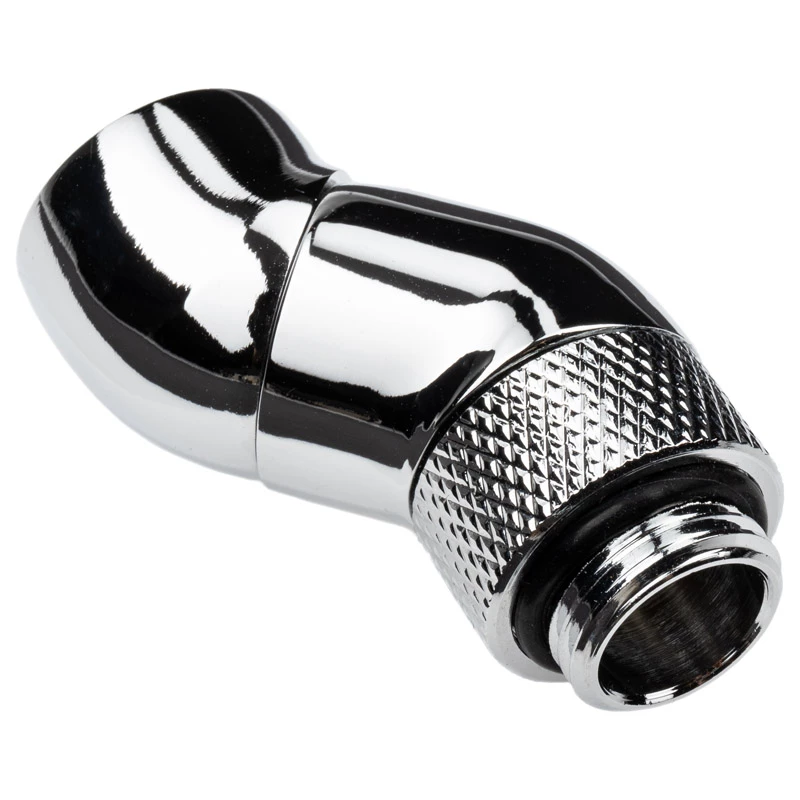

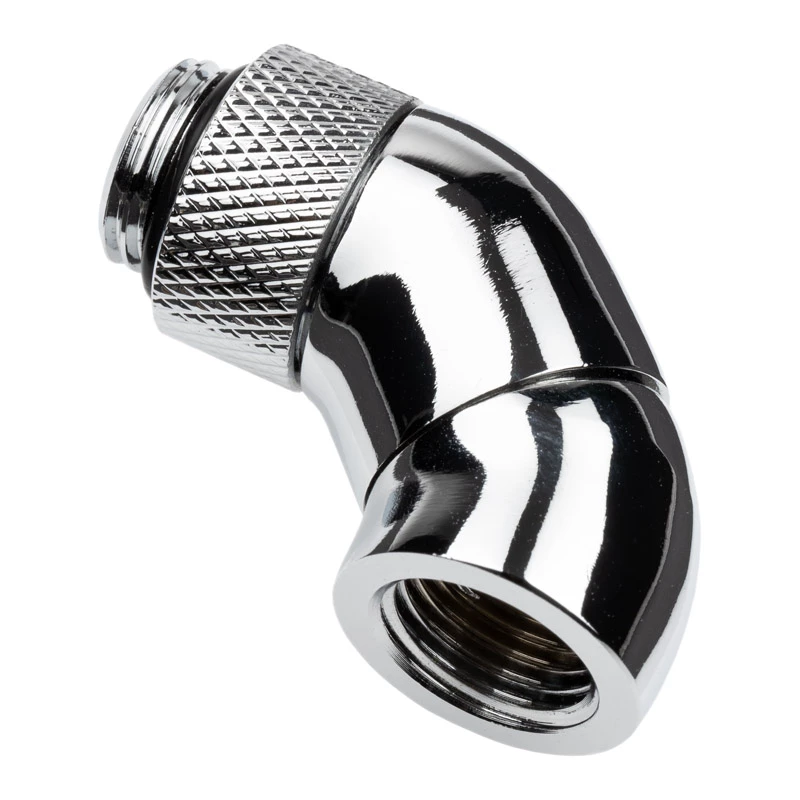

The Alphacool Eiszapfen double 45° angled adapter is a rotatable G1/4 connector designed for PC water cooling systems. Manufactured from brass with a durable chrome finish, this adapter provides two 45° bends and a rotatable joint between the angled sections. One end features a rotatable 1/4" external thread and the other end a 1/4" internal thread, enabling flexible alignment in confined or difficult-to-reach areas without changing thread orientation.

Advantages

The adapter combines high flow capability with precise machining and a corrosion-resistant chrome surface. A special coating process secures the finish to the base material to reduce chipping and peeling. Included coloured O-rings and optional UV-reactive rings allow visual matching with the rest of the cooling loop. The Alphacool logo and distinctive shape make the part easy to identify and integrate into existing Alphacool Eiszapfen components.

Suitable for

• Routing hard tubing or soft tubing in tight spaces
• Adjusting flow direction where fixed-angle fittings do not fit
• Custom PC water-cooling loops requiring G1/4 threaded connectors

Key specifications

• Model: Double 45° Angle Adapter (rotatable)
• Thread standard: G1/4 (1/4" external and internal thread)
• Material: Brass with chrome finish
• Dimensions (approx.): 18.5 mm (W) x 41.5 mm (D) x 18.5 mm (H)
• Weight: 0.1 kg
• Colour: Chrome
• MPN: 17251; EAN: 4250197172516

How to use

Install the adapter into the loop by screwing the 1/4" external or internal threaded side into a compatible G1/4 port. Rotate the central joint between the two 45° sections to obtain the desired orientation, then tighten to secure the connection. Use the supplied O-ring on the mating thread to ensure a leak-free seal. When connecting to hard tubing, plan the routing and cut tubes to length before final tightening to avoid stress on fittings.

Recommendations

For reliable long-term performance, hand-tighten the fitting and then apply a small additional turn with an appropriate wrench; do not overtighten. Inspect O-rings for correct seating and replace them if damaged. If using coloured or UV O-rings, verify compatibility with coolant to avoid unwanted chemical reactions.
