Kit de montaje D-Sub 15 pines conector macho a RJ45 conector hembra DeLOCK 66647

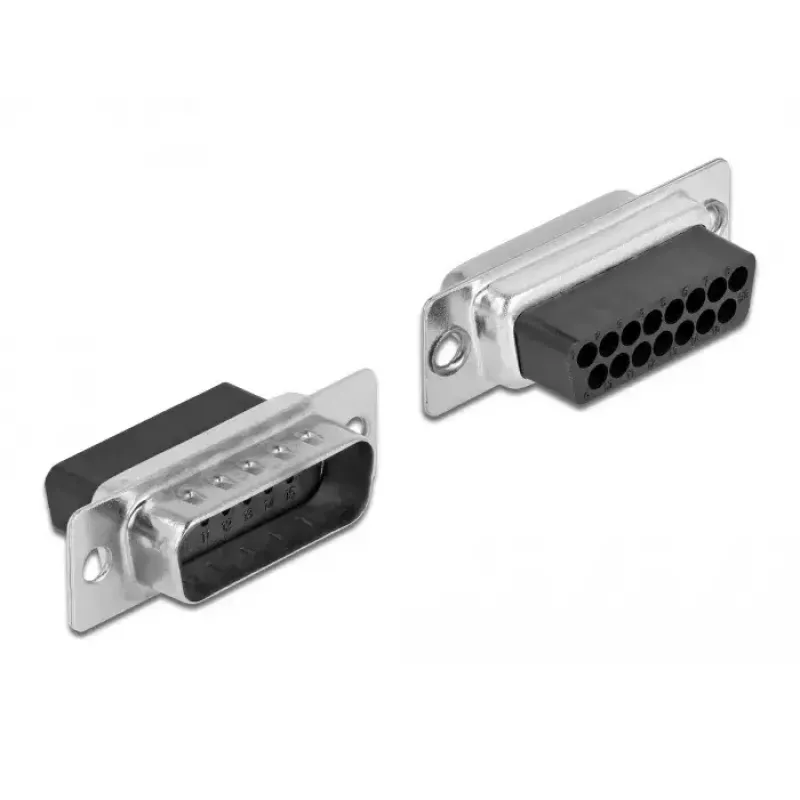

The DeLOCK Assembly Kit D-Sub 15 pin male to RJ45 female (model 66647) enables connection between a D-Sub 15 pin male connector and an RJ45 female socket using an optional Cat.5/5e/6 cable. The adapter housing accepts the cable end in selectable positions so the pin assignment can be set individually. The kit is finished in black and designed for reliable serial and data interface connections.

Advantages

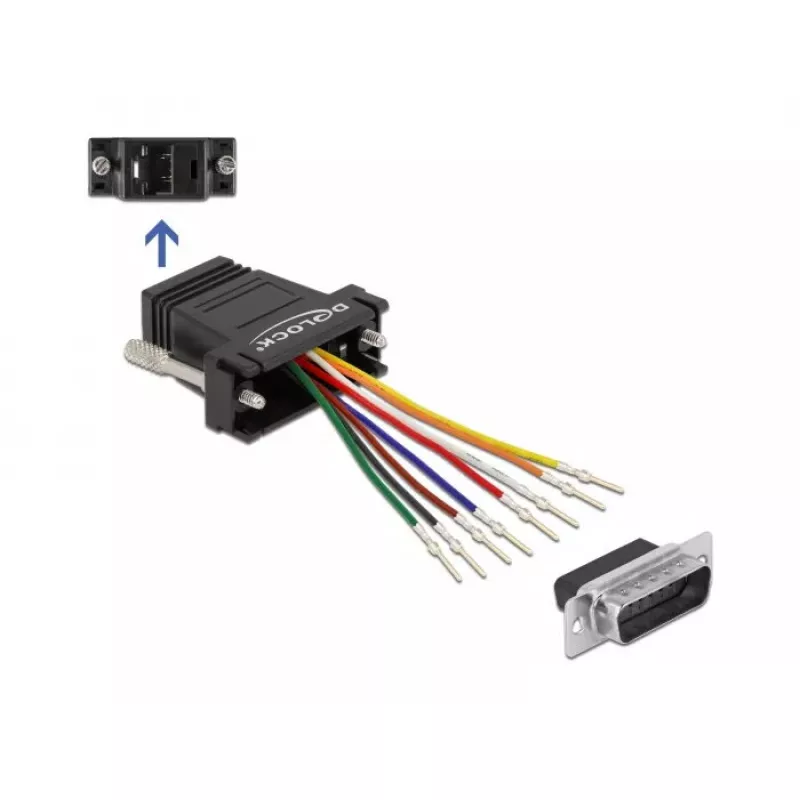

This assembly kit allows flexible pin assignment by inserting the cable conductor into the desired hole of the connector and locking it into the housing. It supports use with standard Cat.5, Cat.5e and Cat.6 cables, offers a compact footprint and a robust construction suitable for repeated assembly. The design provides a secure RJ45 female interface matched to a D-Sub 15 pin male connector.

Suitable for

• Serial interface extension using Cat.5/5e/6 cable
• Custom pinout wiring between D-Sub 15 and RJ45
• Networking and data transfer setups requiring D-Sub to RJ45 adaptation

Key specifications

• Connector 1: D-Sub 15 pin (male)
• Connector 2: RJ-45 (female)
• Compatible cable types: Cat.5 / Cat.5e / Cat.6
• Product colour: Black
• Brand: DELOCK, MPN: 66647, EAN: 4043619666478

How to use

Insert the conductors of a suitable Cat.5/5e/6 cable into the appropriate holes of the D-Sub connector according to the desired pin assignment, then push the cable end into the adapter housing until it locks. Connect the D-Sub 15 pin male to the corresponding device and plug network equipment or patch cables into the RJ45 female socket as required. Follow standard wiring diagrams for signal assignment and secure all fastenings before operation.

Recommendations

Use shielded cables if electromagnetic interference is a concern, verify pin assignments with a multimeter before powering connected equipment, and avoid exceeding the electrical specifications of the connected devices.
