Kit de montaje en rack ATEN para consola LCD consola y KVM CL31xx, CL37xx, CL38xx; set de montaje estándar 2 en 1U

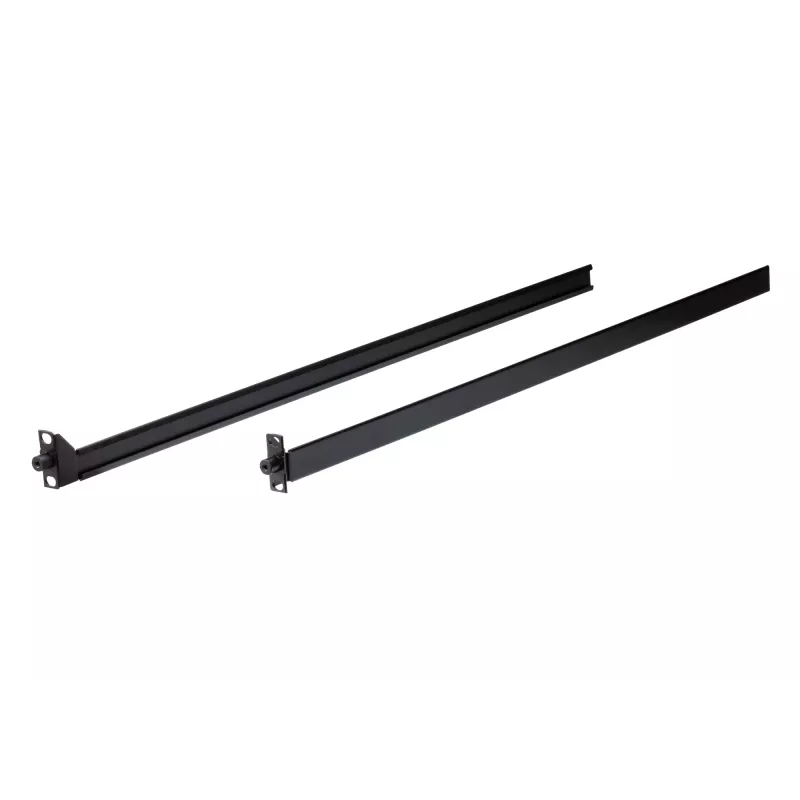

The ATEN Mounting kit ATEN CL31xx CL37xx CL38xx is a 2‑in‑1U solution that lets you combine an ATEN CL3800/CL3700/CL3100 LCD KVM console with a rack KVM switch in a single 1U rack space. The kit supports adjustable mounting depths from 78 cm to 105 cm, has a lightweight design (approximately 650 g) and includes M4*6 and M3*5 screws. Two installation variants are available: a Standard Installation (models 2K-0001 and 2K-0007) for rack mounting that requires at least two people, and an Easy Installation version (2K-0002) designed to allow a single person to mount the console and switch.

Advantages

The mounting kit reduces required rack space by integrating an LCD KVM console and a KVM switch into 1U, improving space efficiency in server rooms or control racks. Adjustable depth and included screws simplify installation and compatibility with different rack setups. The availability of both Standard and Easy Installation options provides flexibility depending on installation requirements and available personnel.

Suitable for

• Data center or server room racks where space optimization is required
• IT closets and small network cabinets with limited rack units
• Environments using ATEN CL31xx, CL37xx or CL38xx LCD KVM consoles together with compatible ATEN KVM switches

Key specifications

• Form factor: 2‑in‑1U mounting kit for LCD console and KVM switch
• Compatible consoles: ATEN CL3800 / CL3700 / CL3100 series
• Rack capacity: 1U
• Adjustable mounting depth: 78 cm – 105 cm
• Weight: approx. 650 g
• Included fasteners: M4*6 and M3*5 screws
• Models: 2K-0001 (rack KVM switch option), 2K-0007 (KVM over IP switch option), 2K-0002 (Easy Installation)

How to use

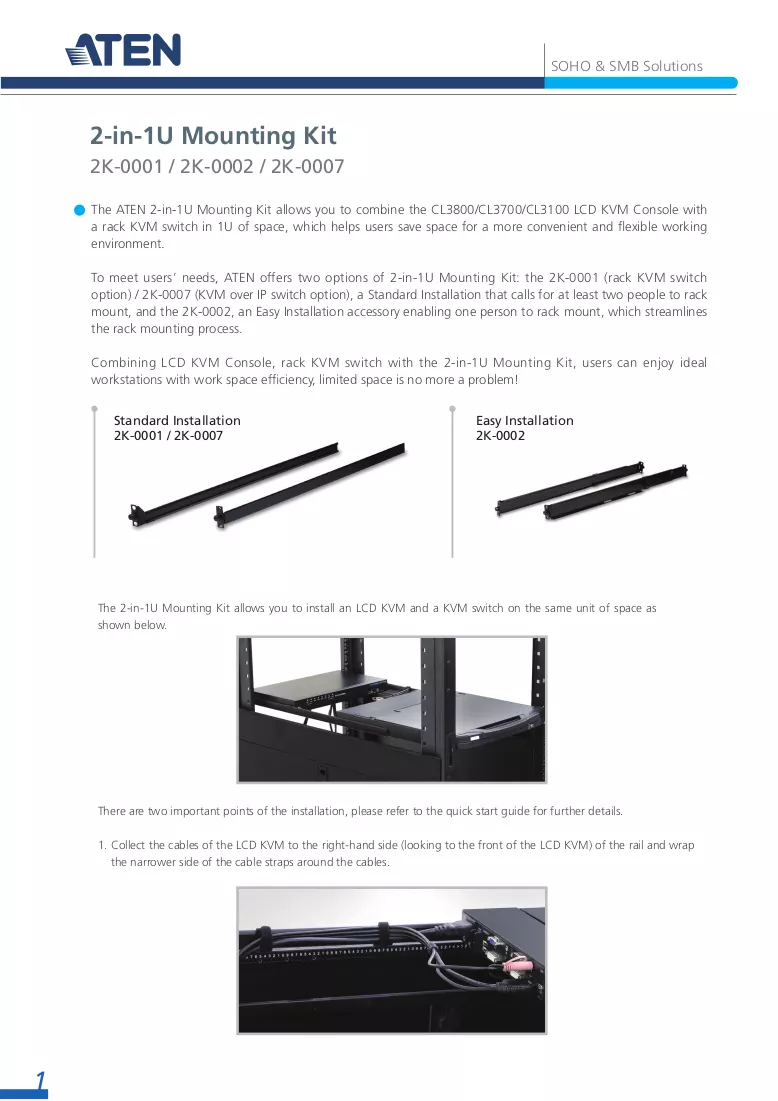

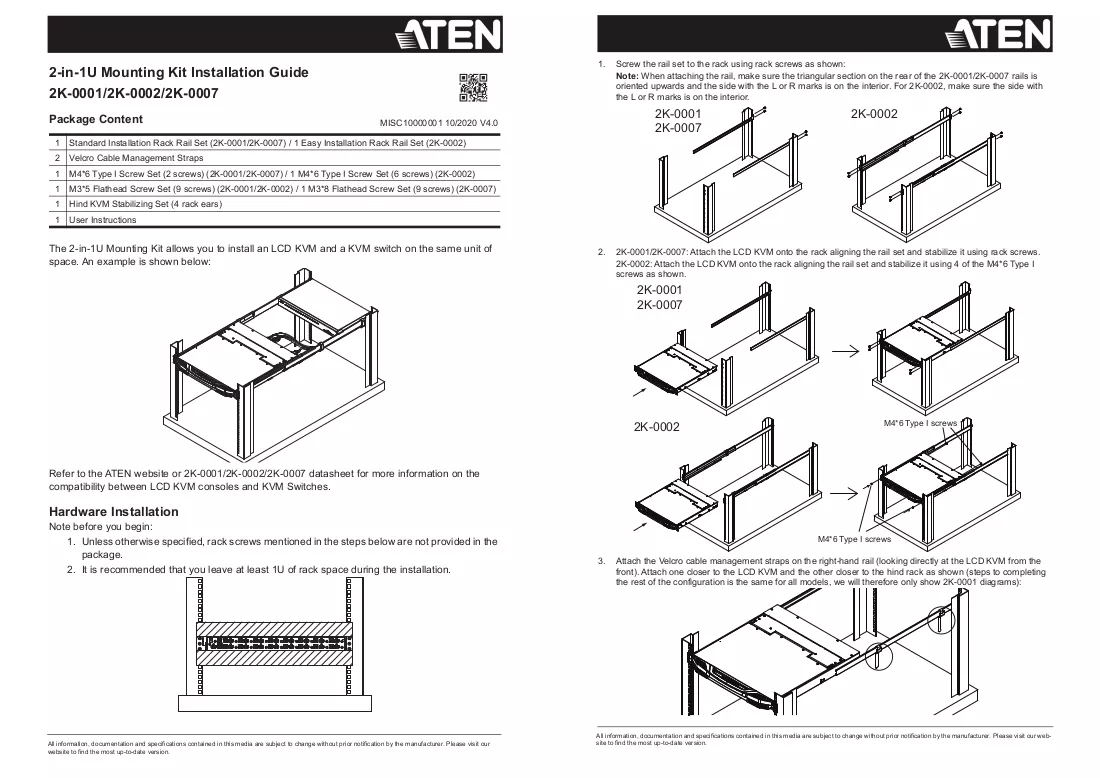

Select the kit model that matches your KVM switch type and installation preference. For Standard Installation (2K-0001 / 2K-0007), plan for two people to mount the LCD console and KVM switch into the 1U space using the supplied screws and adjust the mounting depth within the 78–105 cm range to fit your rack. For the Easy Installation kit (2K-0002), follow the manufacturer instructions to allow a single installer to secure the console and switch. Refer to the product datasheet on the ATEN Support and Downloads page for exact compatibility, detailed mounting steps and recommended rack depths.

Recommendations

Verify the rack depth and the exact model compatibility (LCD console and KVM switch) in the datasheet before installation. Use the Easy Installation kit when a single technician must mount the equipment; use the Standard Installation kit when two or more people are available to ensure safe handling during rack mounting.
