Kit de montaje en rack Rackmount.IT para WatchGuard Firebox T20 / T40

The RM-WG-T6 Rackmount.IT mounting bracket allows installation of the WatchGuard Firebox T20 and T40 into a standard 19" rack. Designed specifically for these models, the kit positions the device connections at the front for convenient access and provides a compact 1U solution with a black finish. The package includes necessary LAN (RJ-45) and USB cables for immediate connection.

Advantages

The bracket is tailored to the WatchGuard Firebox T20 and T40 to ensure a precise fit and stable mounting in a 19" rack. Front-facing connections improve cable management and accessibility. The kit is compact (1U height) and includes LAN and USB cables, reducing the need to source additional accessories.

Suitable for

• Mounting WatchGuard Firebox T20 in a 19" rack
• Mounting WatchGuard Firebox T40 in a 19" rack
• Small server rooms and network cabinets where front access is required

Key specifications

• Compatible models: WatchGuard Firebox T20, T40
• Form factor: 1U rackmount bracket
• Width: 482 mm (19")
• Depth: 217 mm
• Height: 44 mm
• Colour: Black
• Included cables: LAN (RJ-45) and USB
• Manufacturer part number (MPN): RM-WG-T6
• EAN: 8718868918710

How to use

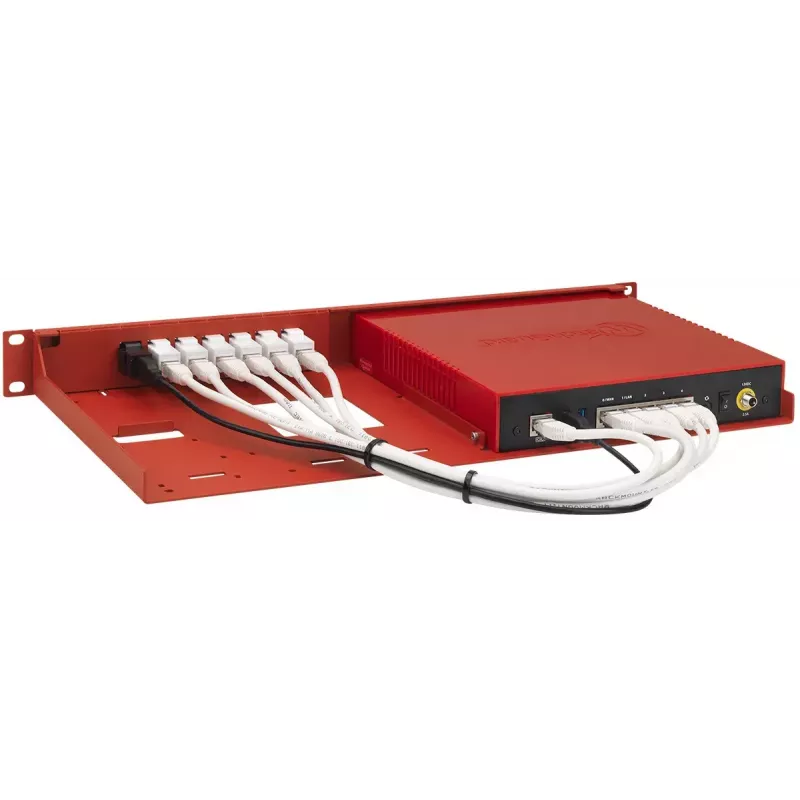

Install the RM-WG-T6 by sliding your WatchGuard Firebox T20 or T40 into the bracket, secure it using the supplied retainers, and connect the included LAN and USB cables to the front keystone ports. Assembly typically takes about five minutes and does not require specialised tools.

Recommendations

Ensure the rack unit has sufficient ventilation and follows the equipment spacing recommendations from WatchGuard. Tighten retainers securely but avoid over-torquing; verify cable routing to prevent strain on the front connectors.
