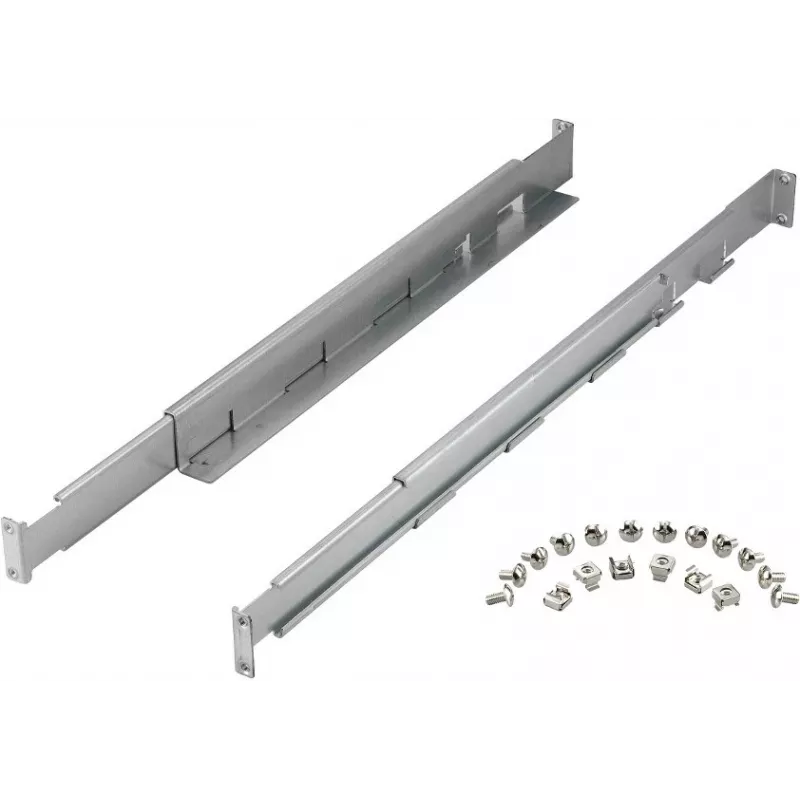

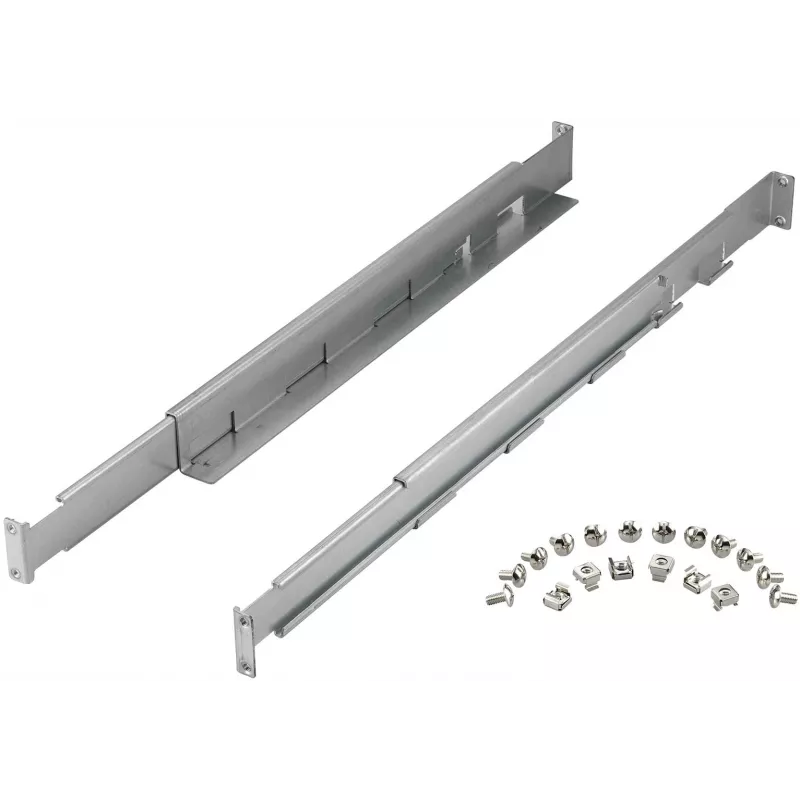

Kit de raíles para rack PowerWalker 10120531 — plateado, ancho 550 mm, alto 140 mm, fondo 70 mm, compatible con profundidad de rack 78–120 cm, peso 3,1 kg

The PowerWalker 10120531 rack rail kit is designed for mounting PowerWalker VFI 6000P/RT LCD and VFI 10000P/RT LCD units into server cabinets. The kit features a silver finish and includes left and right rack rails along with M6*16 rack screws, nuts, and washer plates. The rails are extendable up to 780 mm, which allows installation in cabinets that already have fixed middle support frames and supports cabinets up to 1200 mm depth.

Advantages

The extendable rack rails provide flexibility during installation and adapt to cabinets with various internal layouts. Supplied hardware (M6*16 screws, nuts and washer plates) ensures a secure attachment of the rails to both the UPS and the cabinet. The metal construction and silver finish offer stable support and professional appearance compatible with standard server environments.

Suitable for

• PowerWalker VFI 6000P/RT LCD
• PowerWalker VFI 10000P/RT LCD
• 19-inch server cabinets with middle support frames
• Server cabinets up to 1200 mm depth

Key specifications

• Model: PowerWalker 10120531
• Compatible models: VFI 6000P/RT LCD, VFI 10000P/RT LCD
• Extendable length: up to 780 mm
• Supported cabinet depth: up to 1200 mm
• Dimensions (W×D×H): 550 × 70 × 140 mm
• Finish: silver
• Included hardware: left and right rack rails, 12 × M6*16 screws, 4 nuts, washer plates
• Brand: PowerWalker
• MPN: 10120531
• EAN: 4260074974607

How to use

Extend the rack rails to the required length (maximum 780 mm) and position them inside the server cabinet so that the rails align with the cabinet’s support frames. Secure the rails to the cabinet using the supplied M6*16 screws, nuts and washer plates. Slide the UPS unit into the mounted rails and fasten it to the rails to prevent movement. Check alignment and tighten all fasteners to ensure stable installation.

Recommendations

Confirm cabinet depth and internal support frame positions before installation. Do not exceed the maximum extendable length of 780 mm and follow standard safety practices when mounting heavy equipment; use appropriate lifting assistance if required.
