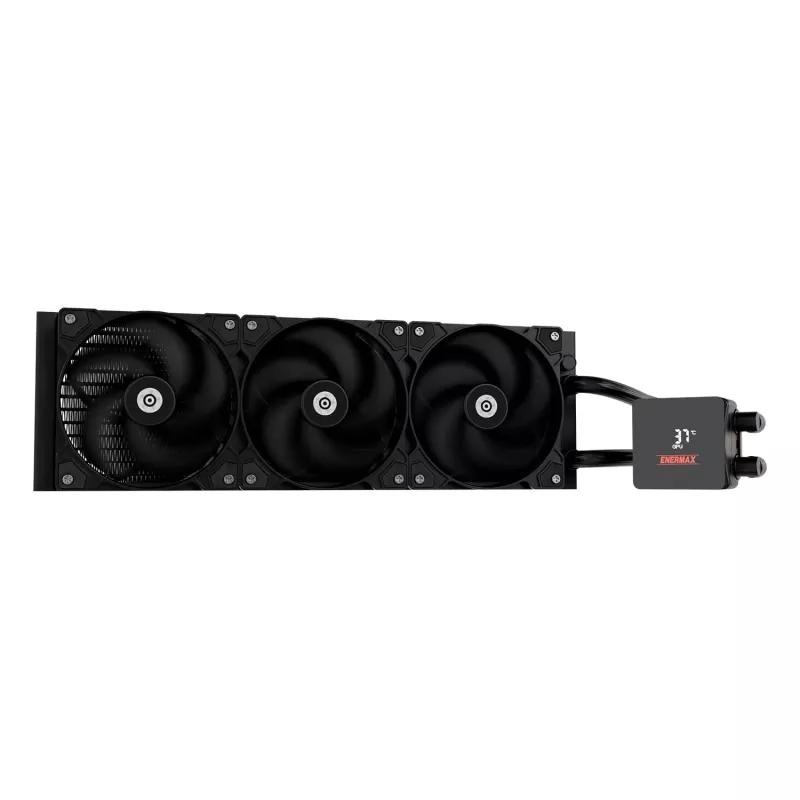

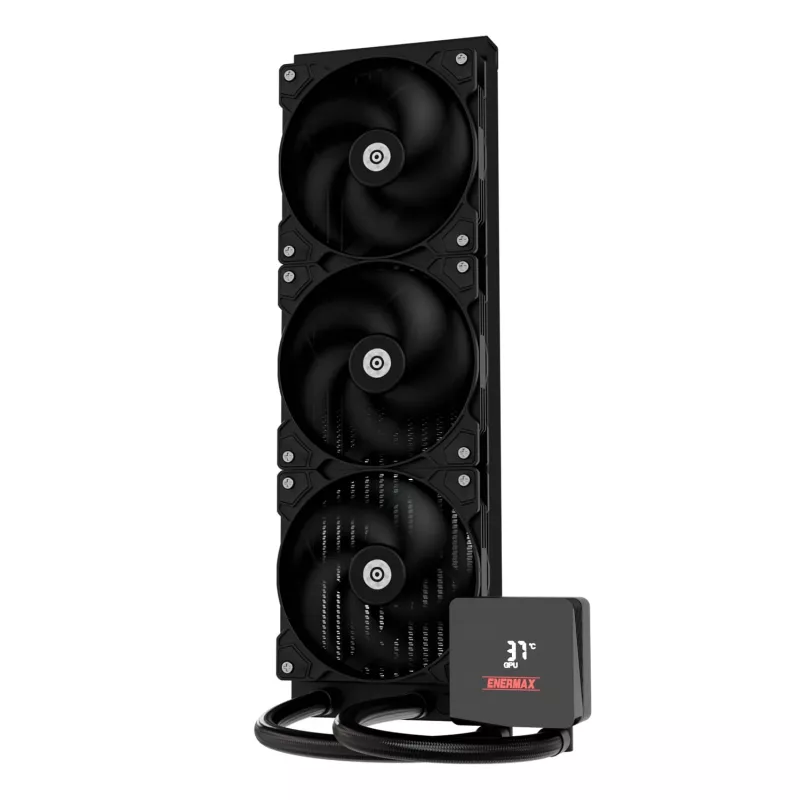

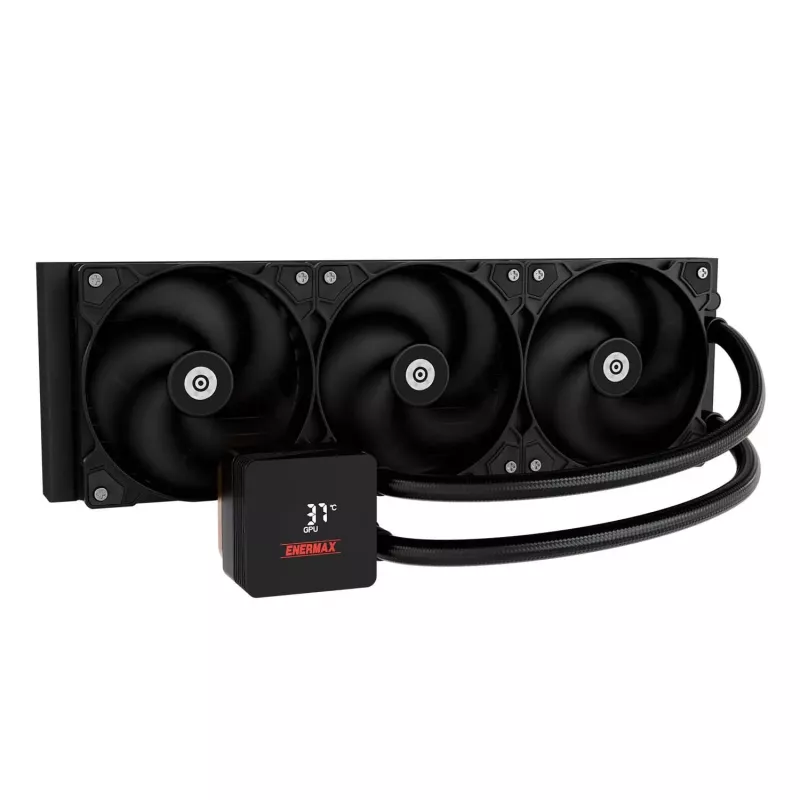

Kit de refrigeración líquida Enermax ELC-LMIV360-SF 12 cm negro

The Enermax ELC-LMIV360-SF 12 cm Black is a liquid cooling kit for processors that pairs a patented dual-chamber water block with Enermax Gen.2 Xtreme pump technology. The cooler uses a larger base and an optimized pump to increase flow rate and improve heat dissipation, and includes a magnetic rotatable real-time digital display for system data monitoring. The unit is supplied with 120 mm fans and a black finish suitable for a variety of PC builds.

Advantages

The Gen.2 Xtreme Pump features a 35% larger base and delivers a 31% increase in flow rate compared with previous designs, enabling up to a 5°C lower temperature on a 250 W CPU versus other high-performance liquid cooling solutions. PWM-controlled radiator and pump fans balance noise and cooling performance, while the magnetic rotatable digital display provides real-time temperature and fan speed readouts and can be adjusted manually for optimal orientation.

Suitable for

• Cooling high-performance desktop processors with up to 390 W TDP
• Custom and compact PC builds that accept 120 mm fans
• Systems using Intel sockets such as LGA 1700 and LGA 2066 (also compatible with LGA 1851 as stated in manufacturer materials)

Key specifications

• Type: Liquid cooling kit
• Model: Enermax ELC-LMIV360-SF
• Fan diameter: 120 mm (12 cm)
• TDP rating: 390 W
• Fan speed: 500–1800 RPM
• Pump speed: 1500–3100 RPM
• Supported processor sockets: LGA 1700, LGA 2066 (manufacturer also lists LGA 1851 support)
• Airflow: 58.03 CFM
• Color: Black

How to use

Install the radiator and fans in a compatible case location using the supplied mounting hardware, fit the water block onto the processor following the socket-specific bracket instructions, and connect PWM headers for the radiator fans and pump to the motherboard for automatic speed control. Position and attach the magnetic digital display on the water block, and verify that system temperatures and fan speeds are shown correctly on the display and within motherboard monitoring software.

Recommendations

Mount the radiator where case airflow is optimal, ensure secure and even contact between the cooler base and CPU with appropriate thermal paste, and allow the pump and fans to run at default PWM control to maintain a balance of cooling and noise. Check compatibility with your case and motherboard headers before installation.
