Klauke 103R6 Terminal tubular 16 mm² M5 cobre estañado gris

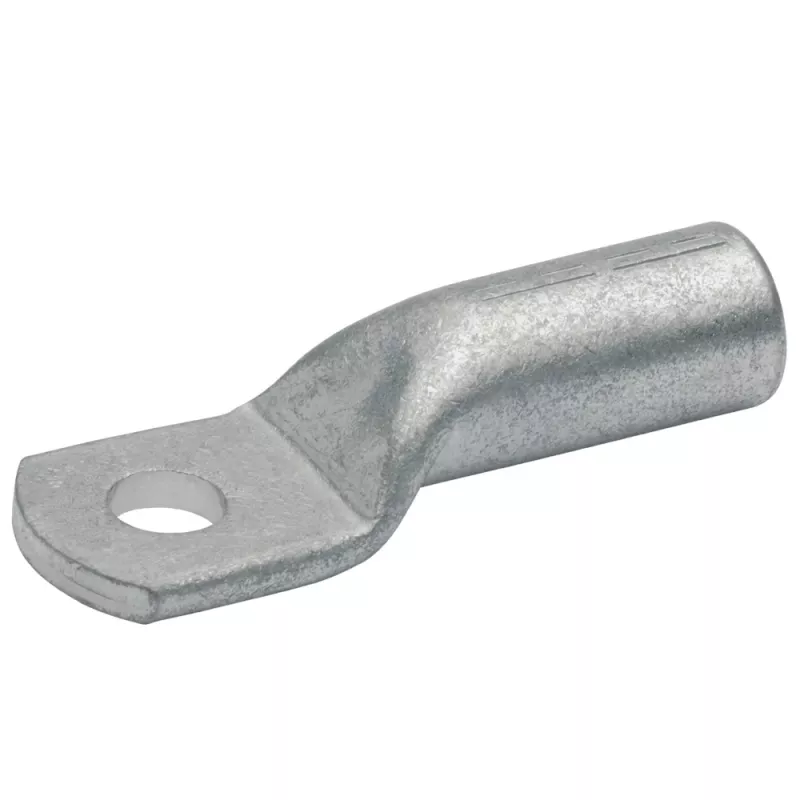

The Klauke 103R6 is a high-quality tubular cable lug designed for reliable and permanent connections of copper conductors. Manufactured by Klauke, a trusted brand in electrical connection technology, this lug ensures secure crimping and excellent conductivity. It is tin-plated for corrosion resistance and suitable for a wide range of industrial and commercial applications.

Advantages

Tin-plated surface provides superior corrosion protection and long-lasting performance. Electrolytic copper construction ensures optimal electrical conductivity. Complies with DIN 46235 standard for quality and reliability. Inspection hole allows visual verification of proper conductor insertion.

Suitable for

• Connecting copper conductors to electrical components
• Power distribution and control panels
• Industrial machinery and equipment
• Automotive and marine electrical systems

Key specifications

• Product Type: Tubular Cable Lug
• Conductor Cross-Section: 16 mm²
• Bolt Hole Diameter: 5.5 mm (M5)
• Material: Electrolytic Copper
• Surface Treatment: Tin-plated
• Connection Method: Crimp
• Standard: DIN 46235
• Total Length: 20 mm
• Barrel Inner Diameter: 5.8 mm
• Barrel Outer Diameter: 8.5 mm
• Palm Width: 11 mm
• Palm Thickness: 1.5 mm
• Inspection Hole: Yes
• Colour: Metallic Grey
• RoHS Compliant: Yes

Recommendations

For best results, use with a suitable crimping tool designed for tubular cable lugs. Ensure conductor is fully inserted and crimp according to manufacturer's specifications.
