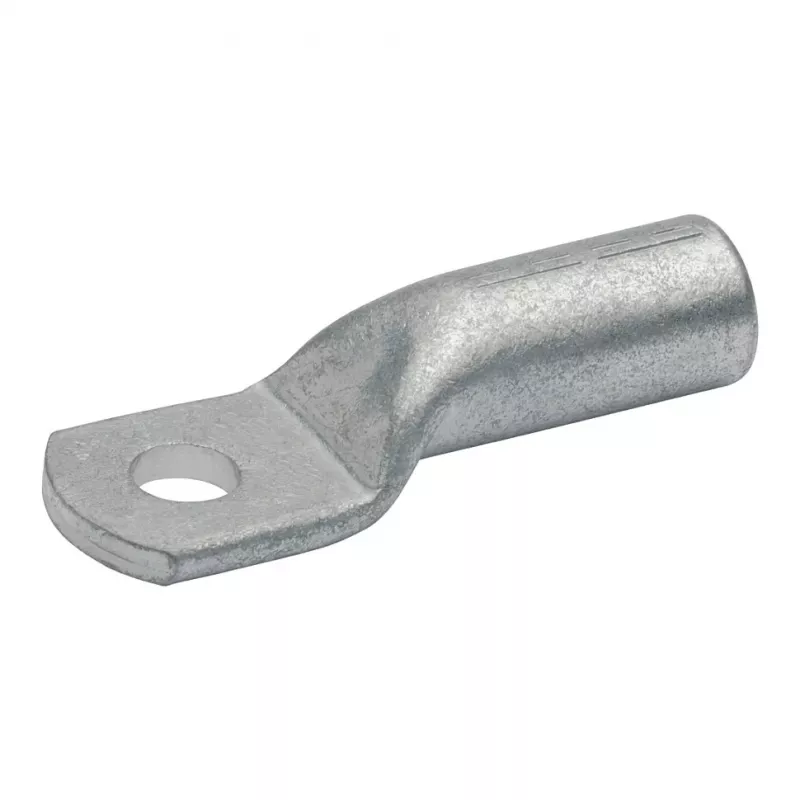

KLAUKE 109R12 Terminal de cable de tubo de cobre estañado, 120 mm², taladro para perno M12, DIN 46235

The KLAUKE 109R12 is a high-quality tin-plated copper tube cable lug designed for reliable crimp connections of copper conductors up to 120 mm². Manufactured from electrolytic copper (E-Cu) and conforming to DIN 46235, this lug ensures excellent electrical conductivity and corrosion resistance. The M12 bolt hole and robust construction make it ideal for industrial and electrical installations where secure, long-lasting terminations are required.

Advantages

Tin-plated surface provides superior corrosion protection and solderability. Electrolytic copper ensures maximum conductivity. Precision manufacturing guarantees consistent dimensions and reliable crimping. Complies with RoHS standards for environmental safety.

Suitable for

• Crimping copper conductors up to 120 mm²
• Power distribution and electrical panels
• Industrial machinery and equipment
• Automotive and marine electrical systems
• Renewable energy installations

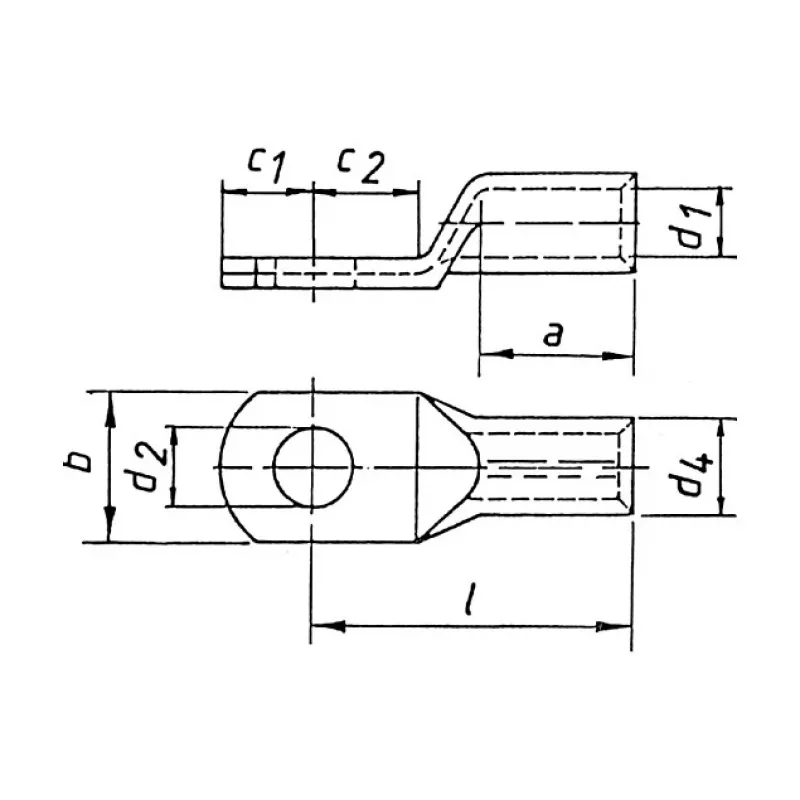

Key specifications

• Product Type: Tube Cable Lug
• Conductor Cross-Section: 120 mm²
• Bolt Hole Size: M12
• Material: Electrolytic Copper (E-Cu)
• Surface Treatment: Tin-plated
• Standard: DIN 46235
• Overall Length: 55 mm
• Barrel Inner Diameter: 14.5 mm
• Barrel Outer Diameter: 18 mm
• Flange Width: 28 mm
• Flange Thickness: 4.5 mm
• Wall Thickness: 1.75 mm
• Number of Bolt Holes: 1
• Color: Metallic (Tin-grey)
• Connection Type: Crimp
• RoHS Compliance: Yes

Recommendations

For optimal performance, use with a suitable crimping tool and ensure the conductor is properly stripped and inserted. Always follow manufacturer guidelines for crimping force and die selection.
