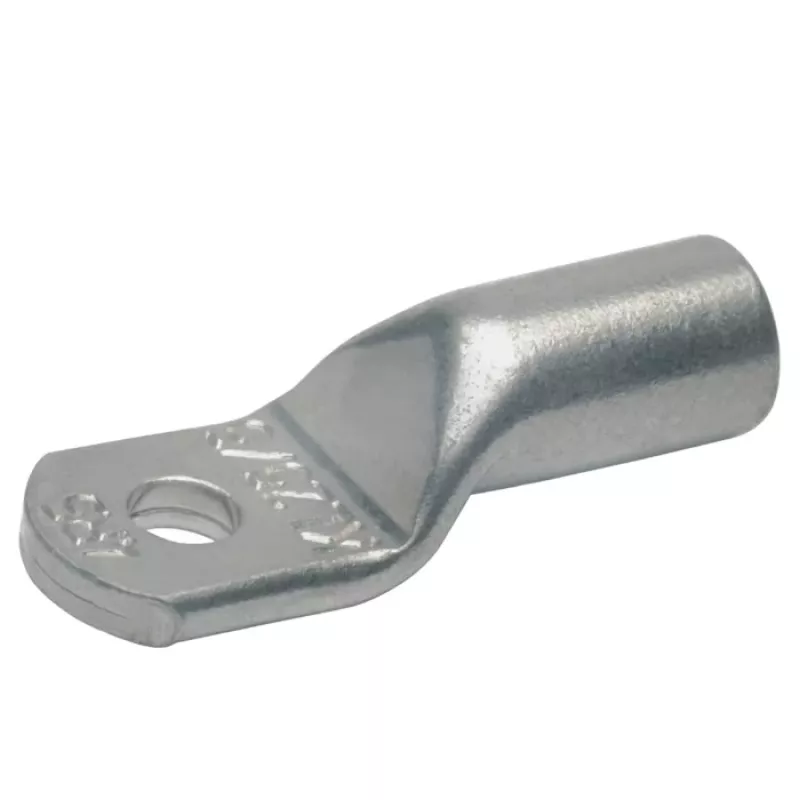

Klauke 10R16 Terminal de anillo - 150 mm² - cobre estañado - orificio para perno M10 - recto

The Klauke 10R16 is a high-quality ring terminal designed for reliable and durable electrical connections. Manufactured by Klauke, a trusted brand in electrical connectivity, this terminal is suitable for fine-stranded and multi-stranded copper conductors up to 150 mm². It features a tubular barrel with a flared entry for easy conductor insertion and an inspection hole to verify proper crimping. The terminal is tin-plated for excellent corrosion protection and complies with DIN 46235 standards.

Advantages

Tin-plated surface provides superior corrosion resistance and long-term reliability. The flared entry simplifies conductor insertion, while the inspection hole allows visual confirmation of correct crimping. Straight shape ensures a neat and professional installation.

Suitable for

• Power distribution and control panels
• Industrial machinery and equipment
• Automotive and marine electrical systems
• Renewable energy installations

Key specifications

• Cable Cross-Section: 150 mm²
• Bolt Hole Diameter: 10 mm (M10)
• Material: Electrolytic Copper (E-Cu)
• Surface Treatment: Tin-plated
• Connection Type: Ring Terminal
• Barrel Type: Tubular
• Conductor Compatibility: Fine-stranded and Multi-stranded Copper Conductors
• Standard Compliance: DIN 46235
• Inspection Hole: Yes
• Entry Type: Flared
• Operating Temperature Range: -55°C to +150°C
• Voltage Rating: Up to 1000 V
• Shape: Straight
• Crimping Method: Hexagonal Crimping
• Manufacturer Series: R Series

Recommendations

For optimal performance, use with Klauke crimping tools and follow the recommended crimping specifications. Always ensure proper conductor preparation and insertion before crimping.
