Klauke 737V terminal tubular - cobre - recto - metálico - cobre estañado - 2,5 mm²

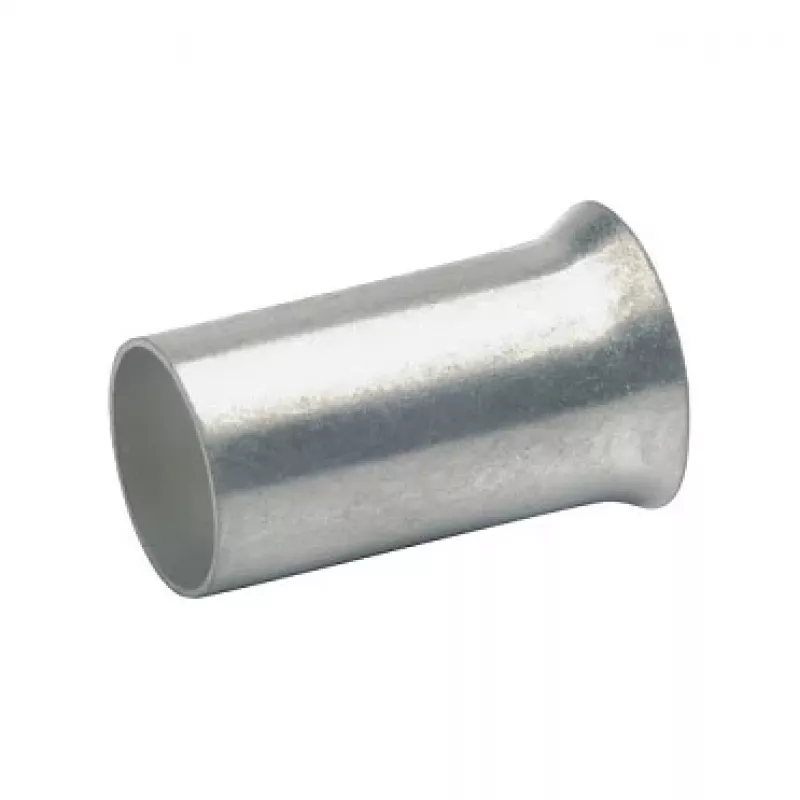

The Klauke 737V is a high-quality wire end ferrule designed for reliable and secure connections in electrical installations. Made from electrolytic copper with electro-tinned surface treatment, this ferrule ensures excellent conductivity and corrosion resistance. It is uninsulated, straight in design, and suitable for crimping. Compliant with DIN 46228 Part 1, it is ideal for fine-stranded and super fine-stranded conductors.

Advantages

Electro-tinned copper provides superior corrosion resistance and long-lasting performance. The funnel-shaped wire entry simplifies conductor insertion, reducing installation time. RoHS and halogen-free compliance ensures environmental safety.

Suitable for

• Electrical panel building
• Control cabinet wiring
• Automation systems
• Industrial machinery

Key specifications

• Conductor cross-section: 2.5 mm²
• Material: Electrolytic copper, electro-tinned
• Insulation: Uninsulated
• Design: Straight
• Connection method: Crimp
• Standard: DIN 46228 Part 1
• Overall length: 12 mm
• Sleeve length: 6 mm
• Inner diameter: 2.3 mm
• Outer diameter: 2.8 mm
• Temperature resistance: -40°C to +105°C
• Voltage rating: Up to 1000 V
• Packaging unit: 100 pieces

Recommendations

For best results, use with a suitable crimping tool designed for wire end ferrules. Ensure proper conductor stripping length before insertion.
