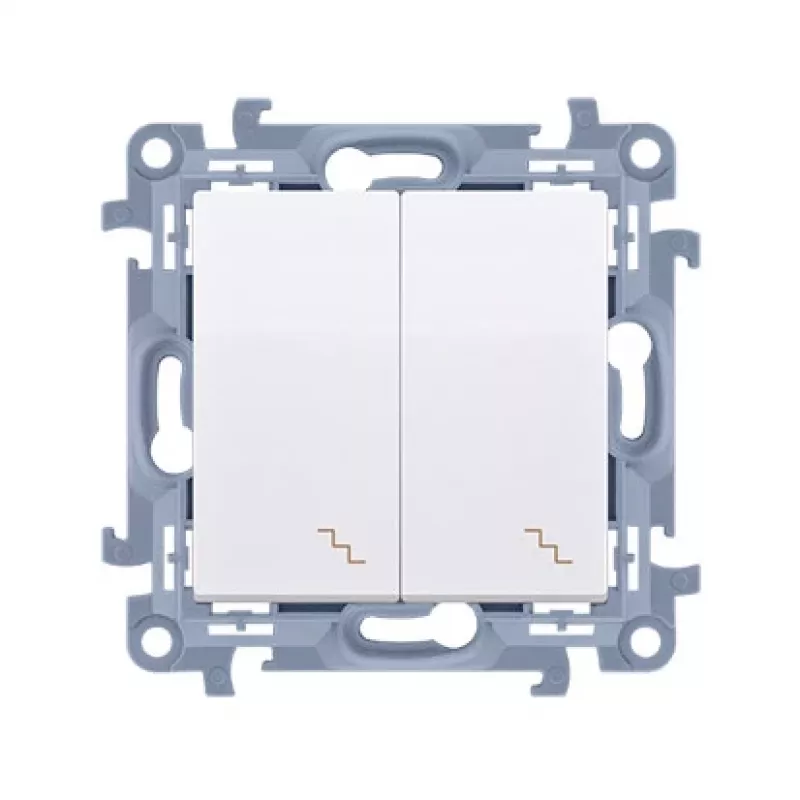

KONTAKT SIMON 10 módulo interruptor universal blanco 2x bornes de tornillo 10AX 250V

The KONTAKT SIMON 10 Module Universal Switch is a high-quality flush-mount switch designed for modular installation systems. With a 1-pole changeover (SPDT) function and screw terminal connections, it offers reliable switching for lighting and other electrical loads up to 10AX at 250V AC. The white thermoplastic construction ensures durability and a clean aesthetic, suitable for residential and commercial environments.

Advantages

This universal switch provides flexibility in control applications, allowing for changeover switching in a compact 1-module size. The screw terminals accommodate conductors from 1.5 to 2.5 mm², ensuring secure and easy wiring. Its flush-mount design integrates seamlessly with compatible frames and cover plates from the Simon 10 series.

Suitable for

• Lighting control in homes and offices
• Changeover switching for fans or appliances
• Modular electrical installations requiring a universal switch

Key specifications

• Product Type: Universal Switch
• Series: Simon 10
• Colour: White
• Rated Current: 10 AX
• Rated Voltage: 250 V AC
• Switch Function: Changeover (SPDT)
• Number of Poles: 1-pole
• Connection Method: Screw Terminals
• Number of Terminals: 3
• Mounting Type: Flush Mount
• Module Size: 1-module
• IP Rating: IP20
• Material: Thermoplastic
• Operating Temperature Range: -5°C to +35°C
• Certifications: CE, RoHS
• Installation System: Modular (requires frame and cover plate)
• Terminal Capacity: 1.5 - 2.5 mm²
• Backlight/Indicator: No

Recommendations

For complete installation, pair this switch with a compatible Simon 10 frame and cover plate. Ensure proper wiring according to local electrical codes. Suitable for indoor use only.
