KONTAKT SIMON 10 Módulo negro mate Pulsador de timbre autoajustable 10AX 250V

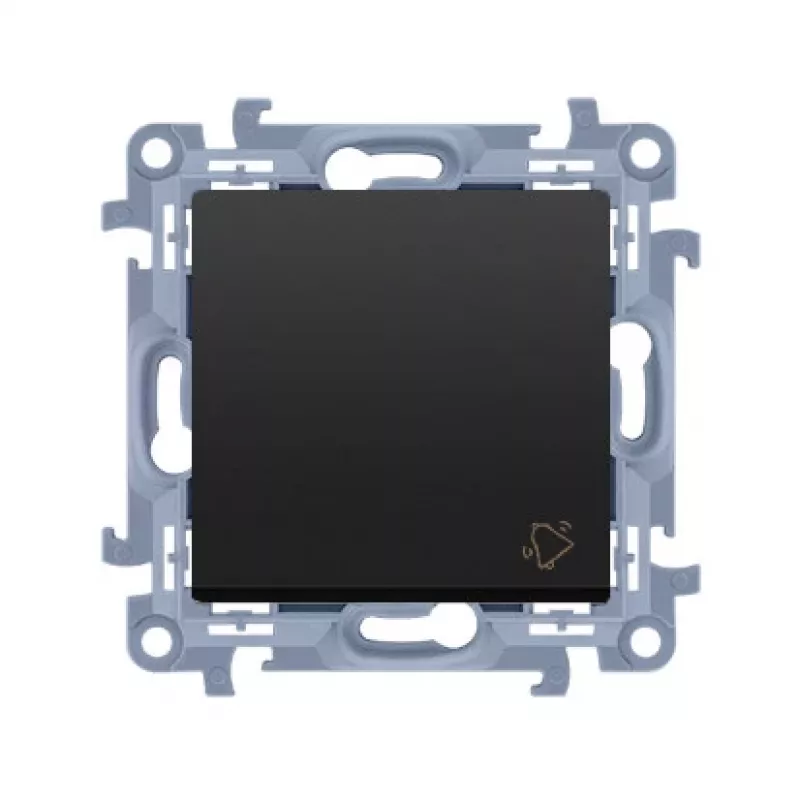

The KONTAKT SIMON 10 Module Matte Black Bell Push-Button is a high-quality momentary switch designed for doorbell and control circuit applications. Manufactured by KONTAK-SIMON, this push-button features a sleek matte black finish and self-clamping (screwless) terminals for quick and secure installation. Rated at 10AX and 250V AC, it is suitable for flush mounting in standard 1-module frames.

Advantages

This bell push-button offers easy installation with self-clamping terminals, eliminating the need for screws. Its momentary (push-to-make) operation ensures reliable performance for doorbells and other signaling applications. The matte black finish provides a modern, elegant look that complements any interior design.

Suitable for

• Doorbell systems
• Momentary control circuits
• Residential and commercial buildings
• Flush-mounted installations

Key specifications

• Product Type: Bell Push-Button
• Series: Simon 10
• Operation Type: Momentary (Push-to-make)
• Number of Poles: 1-pole
• Rated Current: 10 AX
• Rated Voltage: 250 V AC
• Connection Type: Self-clamping (Screwless terminals)
• Mounting Type: Flush mounting
• Color: Matte Black
• Finish: Matte
• Material: Thermoplastic
• IP Rating: IP20
• Module Size: 1 Module (1M)
• Contact Configuration: 1 NO (Normally Open)
• Application: Doorbell, momentary control circuits
• Compatibility: Simon 10 series frames and mounting boxes
• Certifications: CE

Recommendations

For best results, use with KONTAKT SIMON 10 series frames and mounting boxes. Ensure proper flush mounting for optimal performance and aesthetics.
