KOPP 143705086 Cable alargador, enchufe plano con toma de tierra a acoplamiento Schuko, 5 m, negro

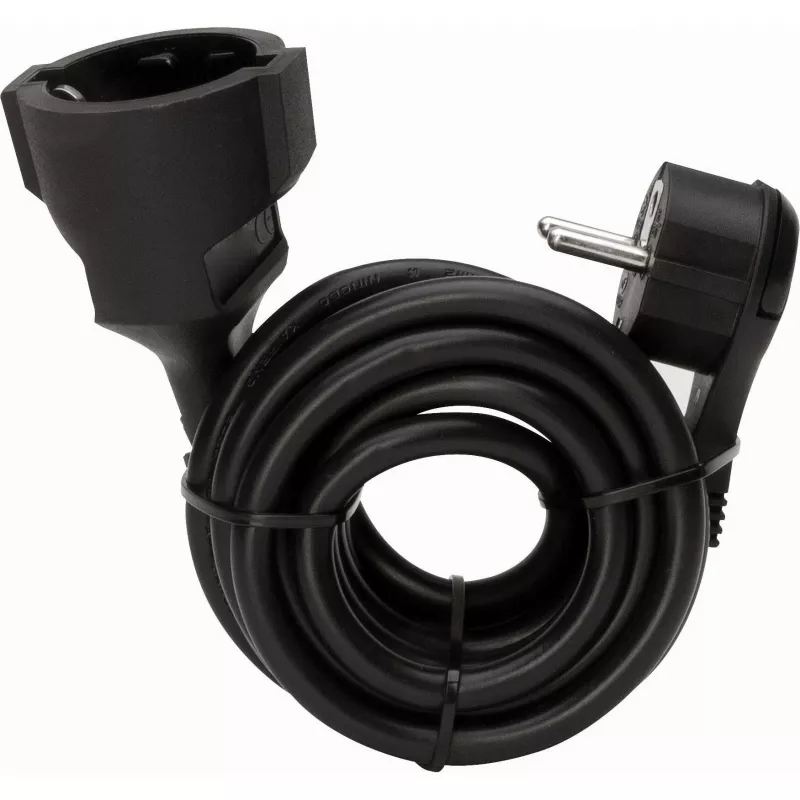

The KOPP 143705086 is a black extension cable with a grounded flat plug (CEE 7/4, type F) and a Schuko coupling. It has a 5 m H05VV-F 3G1.5 mm² cable and is rated for 16 A at 250 V~.

Key features

• Grounded flat plug (CEE 7/4, type F) to Schuko coupling
• Increased touch protection
• Protection class IP20
• Angled cable entry on plug, straight on coupling
• Black PVC sheath

Specifications

• Brand: Kopp
• MPN: 143705086
• Product colour: Black
• Nominal current: 16 A
• Nominal voltage: 230 V
• Frequency: 50 Hz
• Number of cores: 3
• Conductor cross-section: 1.5 mm²
• Cable type: H05VV-F 3G1.5 mm²
• Outer diameter: 8.5 mm
• Length: 5 m
• Protective conductor: Yes
• Connection 1: Protective contact plug CEE 7/4 (type F)
• Connection 2: Safety coupling
• Cable entry connection 1: Angled
• Cable entry connection 2: Straight
• Sheath material: PVC
• Protection class (IP): IP20
