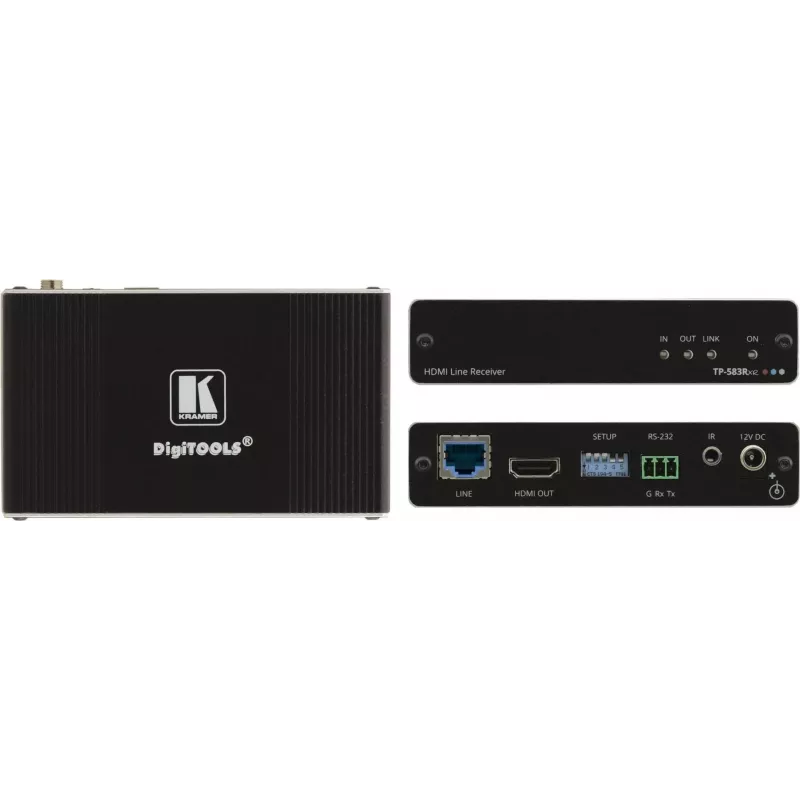

Kramer DigiTOOLS TP-583Rxr Receptor HDBaseT - Extensión HDMI, audio, IR y serie hasta 200 m

The Kramer DigiTOOLS TP-583Rxr is a compact HDBaseT receiver designed to extend HDMI, audio, IR, and serial signals over long distances. It supports resolutions up to 4K@60Hz (4:4:4) and features Power over HDBaseT (PoE) for easy installation. Ideal for professional AV setups, this receiver ensures high-quality signal transmission with minimal latency.

Advantages

Extends HDMI, audio, IR, and RS-232 signals up to 200m over Kramer BC-UNIKAT cable. Supports 4K@60Hz 4:4:4 resolution with 18 Gbps data rate. PoE eliminates the need for a local power supply. Compact DigiTOOLS enclosure fits easily into any setup.

Suitable for

• Professional AV installations in conference rooms, classrooms, and auditoriums
• Digital signage and video wall applications
• Home theater systems requiring long-distance HDMI extension

Key specifications

• HDBaseT Receiver with 1 x RJ-45 input
• 1 x HDMI output (HDMI 2.0, HDCP 2.2)
• 1 x 3.5mm mini jack audio output (unbalanced stereo)
• 1 x 3.5mm mini jack IR output
• 1 x RS-232 (3-pin terminal block)
• Max range: 40m at 4K@60Hz 4:4:4, 70m at 1080p, 200m at 1080p Deep Color over BC-UNIKAT
• Power over HDBaseT (PoE) from compatible transmitter
• Supports HDR, Deep Color, EDID and CEC pass-through
• Audio de-embedding from HDMI to analog stereo

Recommendations

For optimal performance, use Kramer BC-UNIKAT cable for maximum range. Pair with a compatible HDBaseT transmitter such as the Kramer TP-580Txr.
