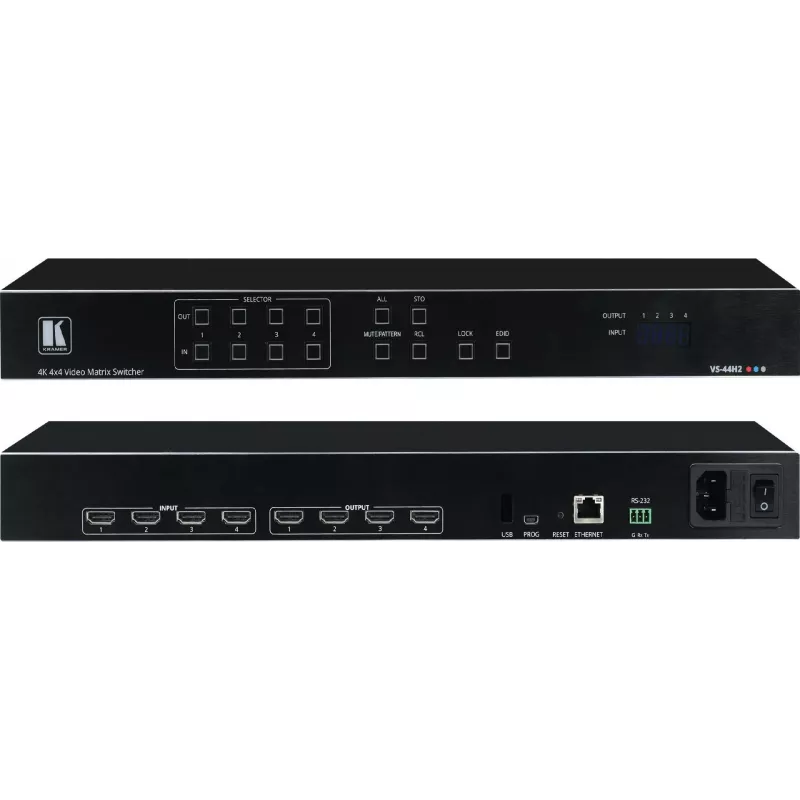

Kramer VS-44H2 Conmutador de matriz HDMI 4x4 4K HDR HDCP 2.2

The Kramer VS-44H2 is a professional 4x4 HDMI matrix switcher supporting 4K@60Hz (4:4:4) with HDR10 and HDCP 2.2 compliance. It enables seamless routing of any of four HDMI sources to any of four displays, ideal for conference rooms, classrooms, and AV installations.

Advantages

Supports 18Gbps data rate for pristine 4K HDR video, advanced EDID management per input, and audio de-embedding via S/PDIF coaxial outputs. Rack-mountable in 1U with included ears.

Suitable for

• Professional AV systems requiring flexible source-to-display routing
• Corporate meeting rooms, lecture halls, and digital signage
• Home theater setups with multiple 4K HDR sources

Key specifications

• Inputs: 4x HDMI (Type A female)
• Outputs: 4x HDMI (Type A female)
• Max Resolution: 4K@60Hz (4:4:4)
• Data Rate: 18Gbps (6Gbps per graphic channel)
• HDCP Compliance: HDCP 2.2
• HDR Support: HDR10
• Color Depth: 8-bit, 10-bit, 12-bit
• Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
• Audio Support: HDMI embedded, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, LPCM 2-Ch
• Audio De-embedding: Yes, via S/PDIF (coaxial) per output
• Control Ports: RS-232, Ethernet (RJ-45), IR, Front Panel Buttons
• EDID Management: Advanced EDID management per input
• Power Source: 12V DC, 2A
• Rack Mount: Yes, 1U rack mountable (rack ears included)
• Firmware Upgrade: Via Ethernet or USB
• Switching Time: < 2 seconds (typical)

Recommendations

For optimal performance, use high-speed HDMI cables certified for 18Gbps. The VS-44H2 is a reliable solution for distributing 4K HDR content across multiple displays with professional control options.
