KSV-400 R=300 HDG Escalera vertical Out

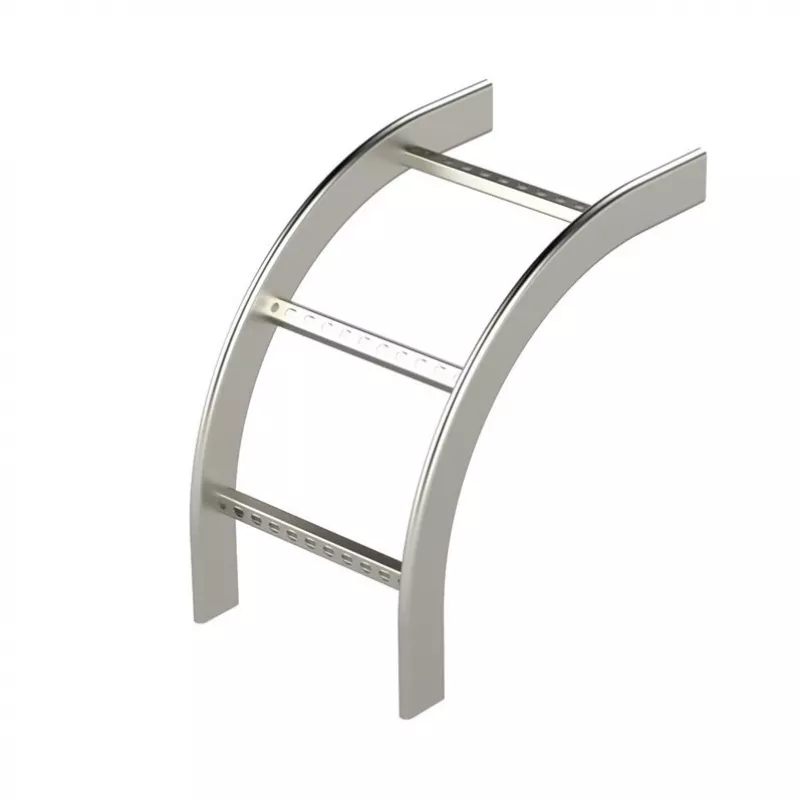

The OBO Bettermann KSV-400 R=300 HDG Ladder Vertical Out is a high-quality cable ladder vertical bend designed for changing the vertical direction of cable runs in cable management systems. Manufactured from hot-dip galvanized steel, this component offers excellent corrosion resistance and durability for both indoor and outdoor installations.

Advantages

This vertical bend ensures smooth cable transitions, reducing stress on cables and maintaining signal integrity. The hot-dip galvanized finish provides long-lasting protection against environmental factors, making it suitable for industrial and commercial environments. Easy to integrate with standard KSV cable ladder systems.

Suitable for

• Industrial cable management systems
• Data centers and server rooms
• Commercial building installations
• Outdoor cable routing applications

Key specifications

• Product Type: Cable Ladder Vertical Bend
• System Compatibility: OBO Bettermann KSV Cable Ladder System
• Material: Steel
• Surface Finish: Hot-dip galvanized (HDG)
• Nominal Ladder Width: 400 mm
• Bend Radius: 300 mm
• Bend Angle: 90 degrees
• Bend Orientation: Vertical Out (Riser)
• Application: Changing vertical direction of cable runs
• Corrosion Resistance: High (Class C3/C4 according to ISO 12944)
• Standard Compliance: DIN EN 10346 (Material), IEC 61537 (Cable Management Systems)
• Mounting: Requires screw connectors for ladder sections
• Environmental Use: Suitable for indoor and outdoor installations
• UV Stability: Excellent
• Color: Metallic Grey
• Side Rail Compatibility: Compatible with standard KSV cable ladder side rail heights (e.g., 60mm, 110mm)
• Fire Resistance: Non-combustible material
• Load Capacity: Dependent on overall ladder system design

Recommendations

For optimal performance, use with OBO Bettermann KSV cable ladder sections and appropriate screw connectors. Ensure proper support and spacing according to system design guidelines.
