KSVI-600 R=300 HDG Escalera Curva Vertical Interior 90° Ancho 600mm Radio 300mm

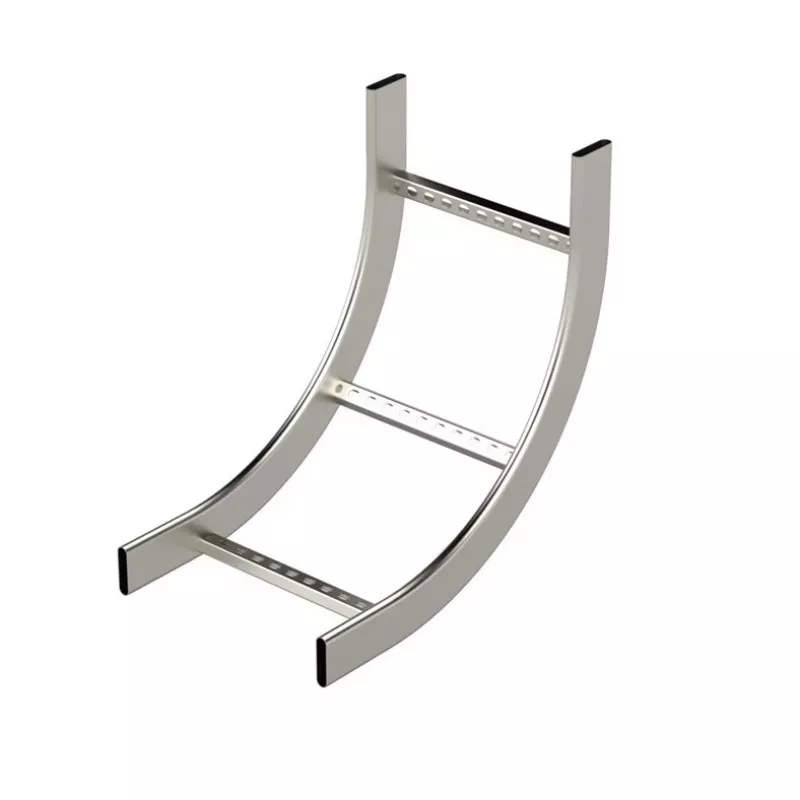

The KSVI-600 R=300 HDG Ladder Vertical Inside Bend is a high-quality accessory designed for OBO Bettermann cable ladder systems. This vertical inside bend allows for a 90-degree direction change with a 300 mm bend radius, ensuring smooth cable routing and protection. Manufactured from hot-dip galvanized steel, it offers excellent corrosion resistance and durability for both indoor and outdoor installations.

Advantages

Hot-dip galvanized finish provides long-lasting protection against corrosion, suitable for harsh environments. The 300 mm bend radius minimizes cable stress and ensures compliance with industry standards. Easy to install and compatible with standard 600 mm wide cable ladders with 60 mm side rail height.

Suitable for

• Vertical direction changes in cable ladder runs
• Industrial and commercial electrical installations
• Indoor and outdoor applications requiring corrosion protection class C3
• Heavy-duty cable support systems

Key specifications

• Product Type: Vertical Inside Bend
• System Compatibility: OBO Bettermann Cable Ladder System
• Material: Steel
• Surface Finish: Hot-Dip Galvanized (HDG)
• Compatible Ladder Width: 600 mm
• Bend Radius: 300 mm
• Bend Angle: 90 degrees
• Compatible Side Rail Height: 60 mm
• Corrosion Protection Class: C3
• Standard Compliance: DIN EN 61537
• Application: Vertical direction change for cable ladders
• Installation Type: Inside bend (cables on the inside of the curve)
• Mounting Type: Connects to straight cable ladder sections
• Suitable Environment: Indoor and outdoor installations
• Color: Metallic Grey
• UV Resistance: Yes
• Fire Resistance: Yes
• Load Capacity: Heavy-duty

Recommendations

For optimal performance, use with OBO Bettermann cable ladder sections of matching width and side rail height. Ensure proper grounding and bonding as per local electrical codes.
