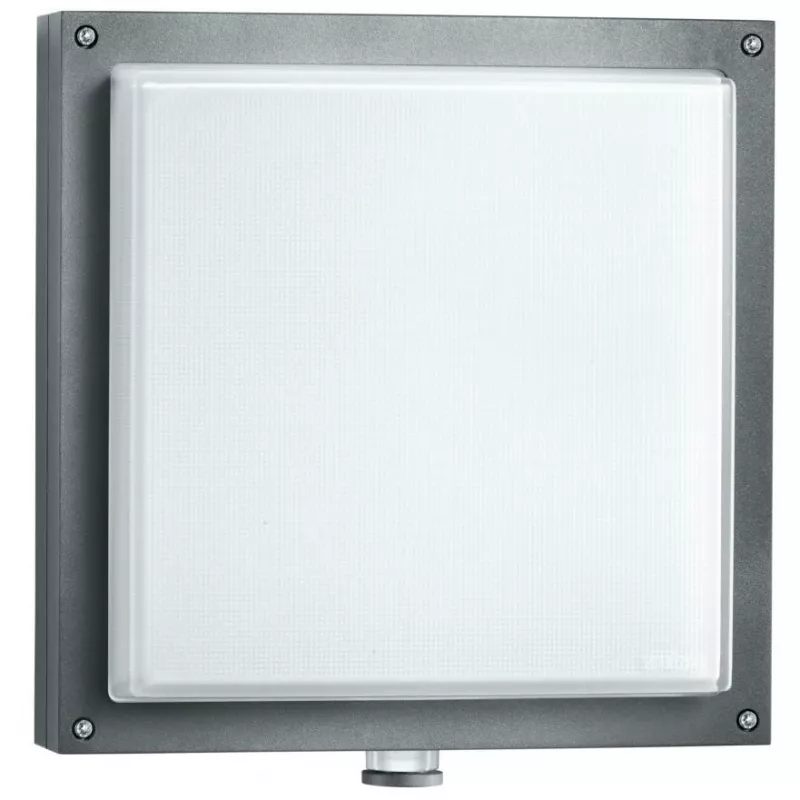

Lámpara de pared exterior Steinel L 690 S PMMA, LED 8,5 W, antracita, sensor PIR 360°/7 m, aluminio/plástico, 220–240 V

L 690 S PMMA anthracite is a square outdoor wall light with integrated motion sensor and LED lighting. It delivers 700 lm while consuming 8.5 W, offers a durable aluminium base with impact‑resistant diffuser (IK07) and includes a self‑adhesive sheet for illuminating house numbers. The 360° infrared mini sensor covers up to 7 m and provides four selectable programs, plus adjustable time and twilight thresholds and a basic light level setting. The luminaire can be interconnected by cable for professional installations.

Advantages

The L 690 S provides efficient, sensor‑controlled illumination that reduces energy use compared with continuously lit LED fixtures of the same wattage. It combines proven square design with durable materials and improved illumination characteristics. The unit is suitable for entrance areas, façades and pathways and is designed for long service life with LEDs rated at approximately 60,000 hours and robust IP44 protection.

Key specifications

• Type: Outdoor wall light, non‑replaceable LED module, 8.5 W
• Light output and colour: 700 lm, 3000 K (warm white)
• Housing: Aluminium and plastic, colour anthracite; protection rating IP44; impact resistance IK07
• Sensor: 360° infrared mini sensor, range up to 7 m, 4 programs, adjustable time and twilight threshold, basic light level, soft start
• Lifespan: LED approx. 60,000 h
• Dimming and control: Dimmable behaviour via sensor settings; motion sensor operation
• Power: AC mains
• Application areas: Entrance, façade, pathway
• Additional: Includes self‑adhesive house number sheet; interconnectable via cable

How to use

Install the L 690 S on a suitable outdoor wall following local electrical regulations and ensure mains connection by a qualified person. Adjust the sensor programs, time and twilight thresholds to match the location and desired switching behaviour. Position the fixture so the 360° infrared sensor can detect movement within its 7 m range and the illuminated house number sheet is visible from the approach route. For multiple units, connect via cable where a networked installation is required.

Recommendations

For best performance, mount the luminaire at the manufacturer’s recommended height and avoid direct obstruction of the sensor. Use the adjustable twilight threshold to prevent unnecessary switching during dusk and dawn hours. Check IP44 and IK07 suitability for exposed locations and consider professional installation for cable interconnection.
