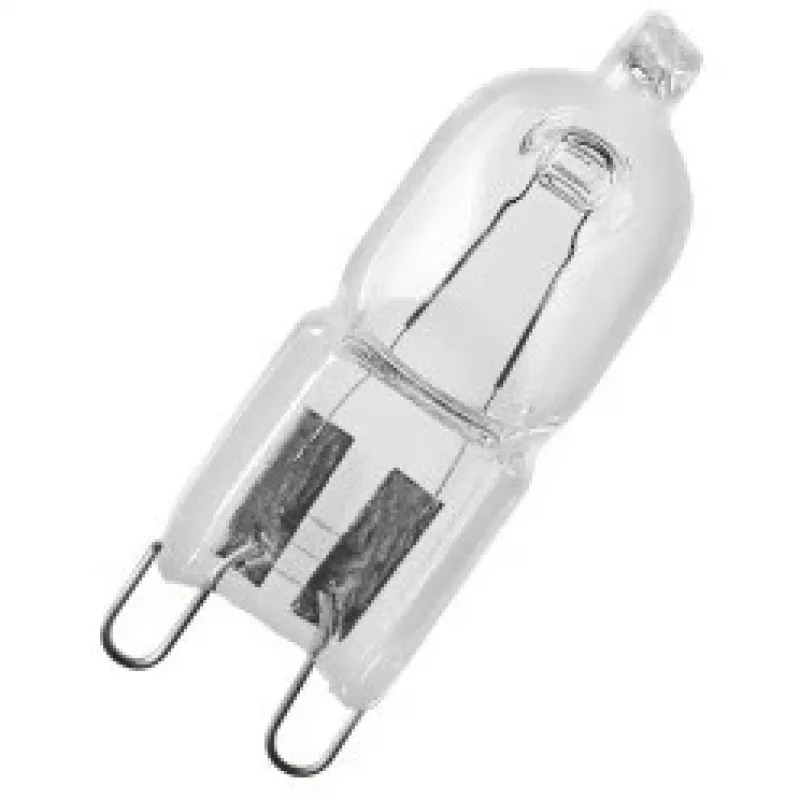

Lámpara halógena Osram Halopin Eco 20 W blanco cálido G9

The Osram Halopin Eco halogen bulb 20 W Warm white G9 is a compact G9‑base halogen lamp delivering 20 W of power and warm white light at 2700 K. With a luminous flux of 235 lm and an average life of 2,000 hours, it is suitable for a range of general and accent lighting applications. The lamp features a UV filter and an integrated fuse function, and is approved for use in open luminaires according to IEC 60598-1.

Advantages

The Halopin Eco provides efficient accent illumination with very small dimensions that enable new luminaire designs. Its robust filament benefits from a unique bulb‑pinch technology, reducing the risk of filament damage. The lamp complies with IEC 60432-2 due to the integrated fuse function, produces lower thermal output compared with the standard reference product, and includes a UV filter for reduced ultraviolet emission.

Suitable for

• General illumination in homes and small commercial spaces
• Workplace lighting where compact G9 lamps are required
• Reading lamps and bedside lighting
• Dining table and mirror lighting
• Accent and mood lighting in fixtures with small lamp compartments

Key specifications

• Brand: Ledvance (Osram Halopin Eco)
• Fitting/cap type: G9
• Bulb power: 20 W
• Luminous flux: 235 lm
• Colour temperature: 2700 K (Warm white)
• Average life: 2,000 h
• Dimmable: yes
• Color rendering index Ra: 100
• Approvals: approved for open luminaires (IEC 60598-1); complies with IEC 60432-2

How to use

Insert the Osram Halopin Eco into a compatible G9 socket with the power switched off. Ensure the luminaire is rated for halogen lamps and, if used in open luminaires, that it meets the applicable installation standards. The lamp is dimmable; use a dimmer compatible with halogen/G9 loads for smooth dimming performance. Replace the lamp when luminous output noticeably decreases or after the rated average life.

Recommendations

Use the Halopin Eco in fixtures that allow adequate ventilation to manage heat despite its lower thermal output. Avoid touching the bulb glass with bare hands during installation to prevent contamination that can shorten lamp life.
