Armario rack 19" 6U 600x600 gris perforado

Small network installations often struggle with disorganized equipment, tangled cables, and insufficient security. The Lanberg WF01-6606-23S wall-mount rack cabinet solves these issues by providing a compact, lockable enclosure that keeps your 19-inch devices neatly organized and protected. Ideal for offices, retail spaces, or home setups where floor space is limited, this 6U cabinet mounts securely to the wall, freeing up valuable floor area while maintaining easy access to your hardware.

Who is it for

This cabinet is perfect for IT administrators, system integrators, and small business owners who need to house networking gear such as switches, patch panels, and small servers in a space-efficient manner. Its wall-mount design is especially beneficial in environments where floor-standing racks are impractical, such as corridors, small server rooms, or behind desks. The perforated front door ensures passive airflow, keeping equipment cool without the need for additional fans, while the lockable design prevents unauthorized access.

Main features

• 19-inch standard compatibility with 6U rack capacity, suitable for a wide range of networking equipment.

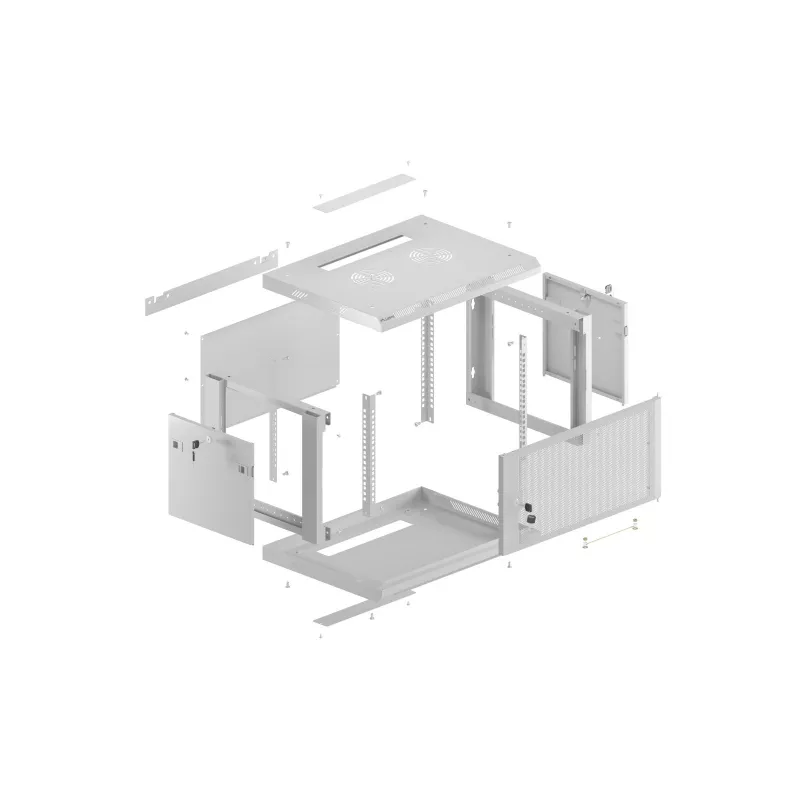

• Wall-mount design with flat-pack construction for easy transport and on-site assembly.

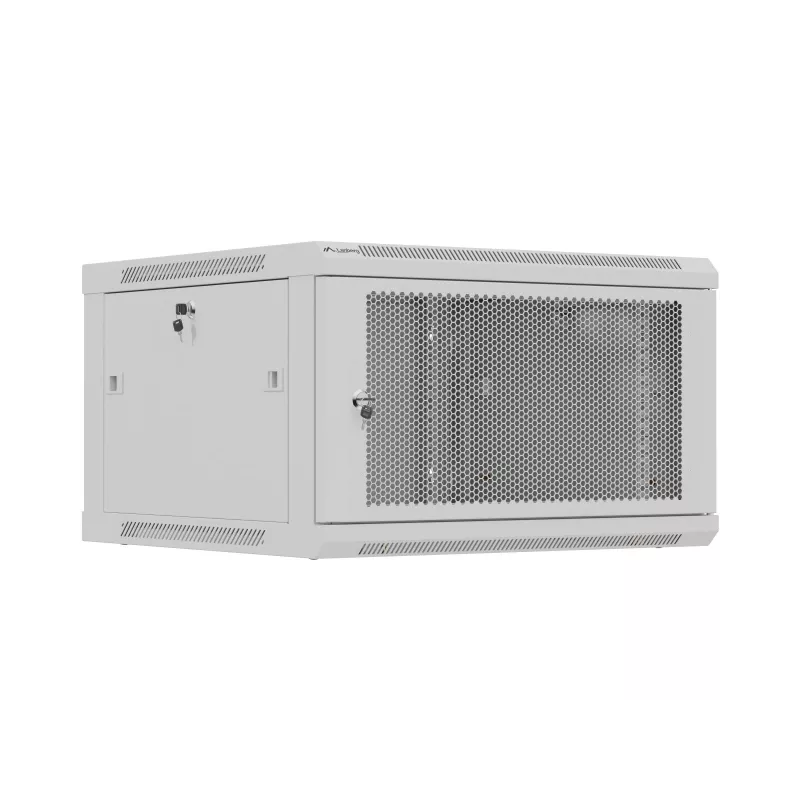

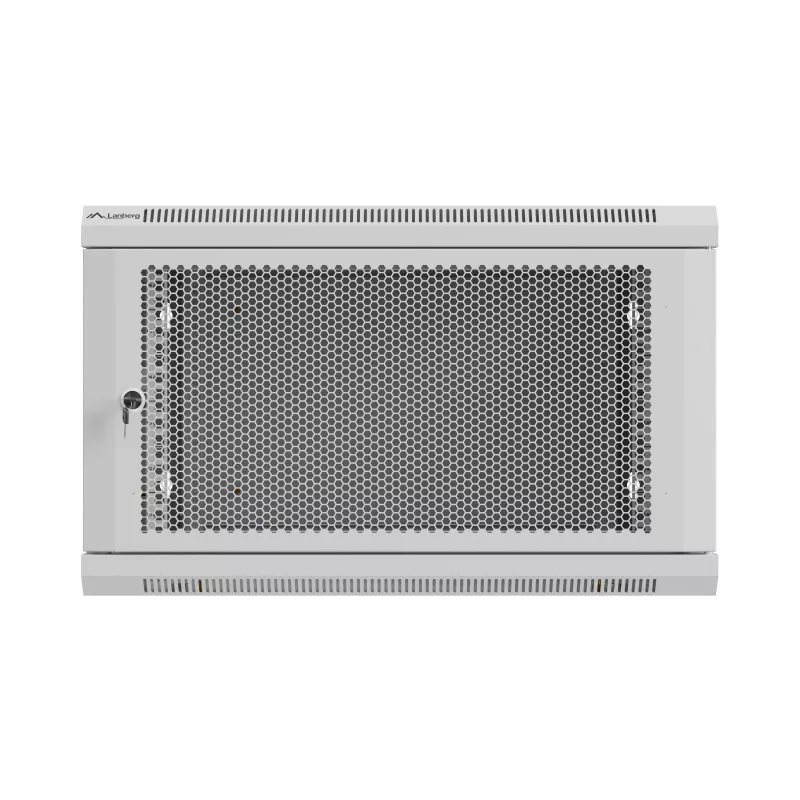

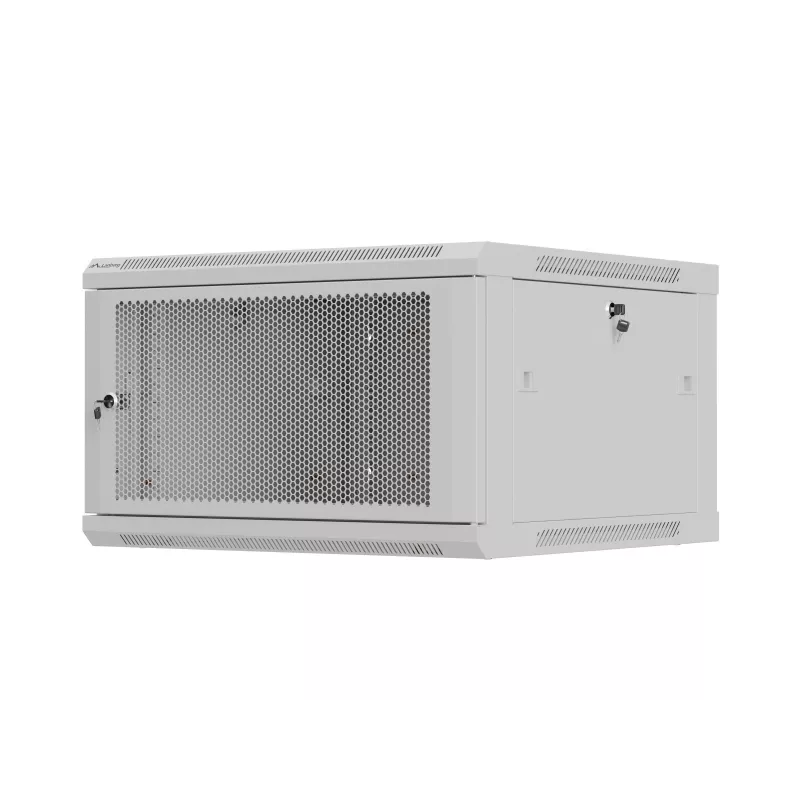

• Perforated steel front door with lock, providing security and ventilation.

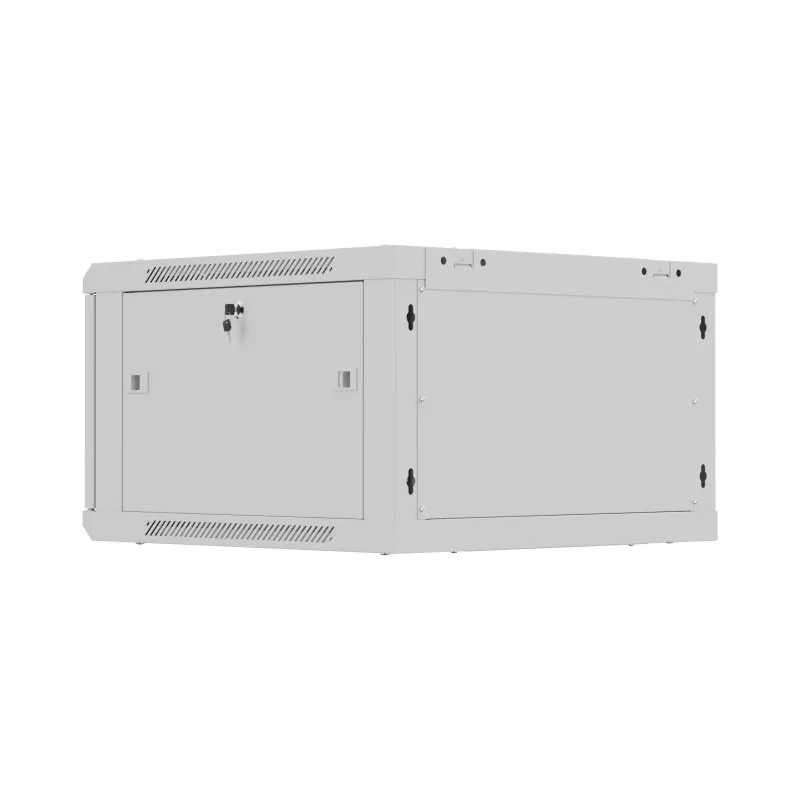

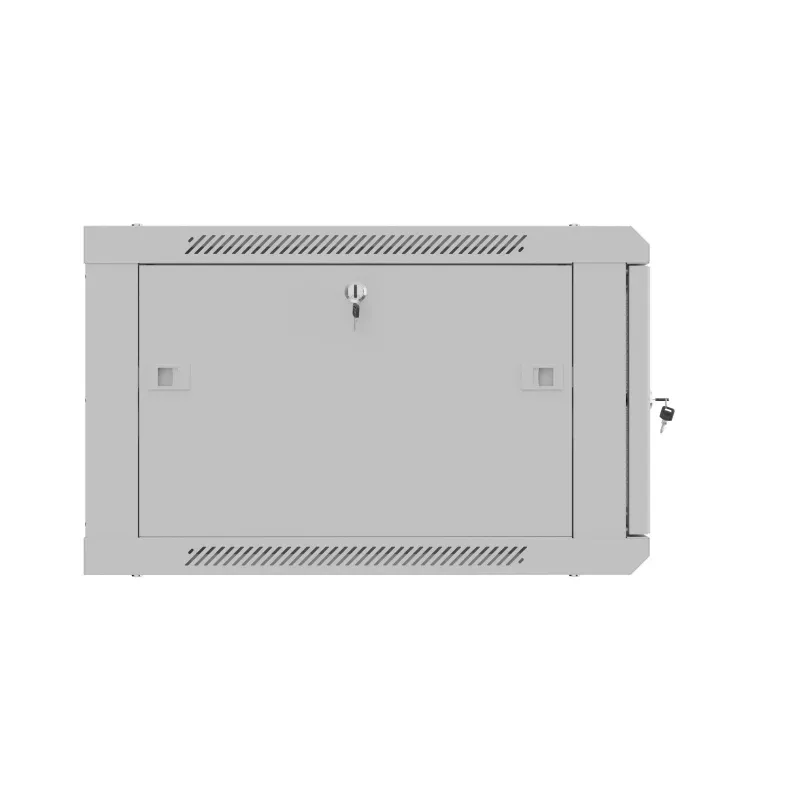

• Removable and lockable side panels for convenient equipment installation and maintenance.

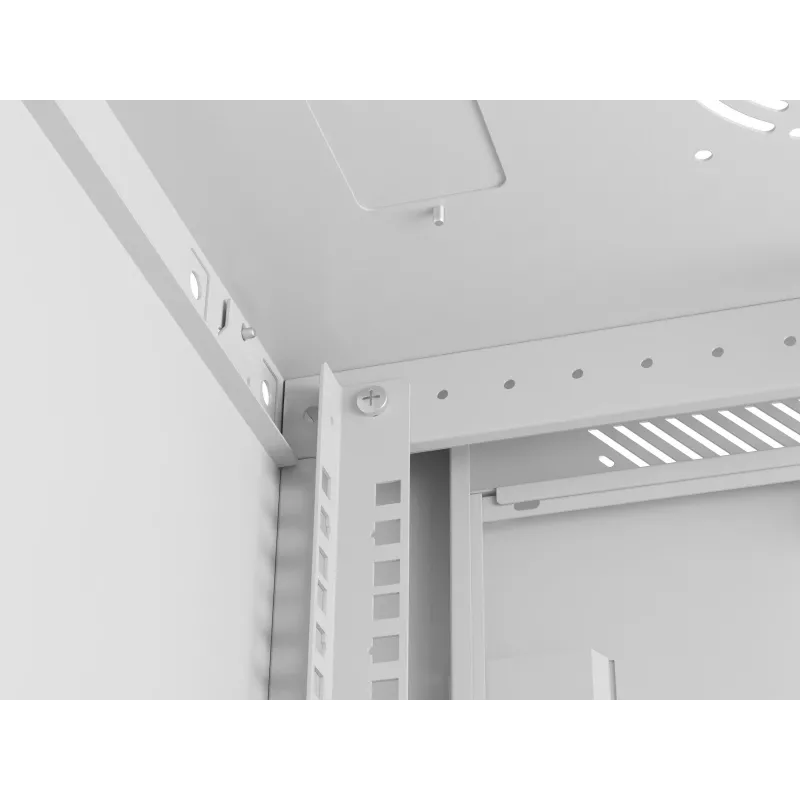

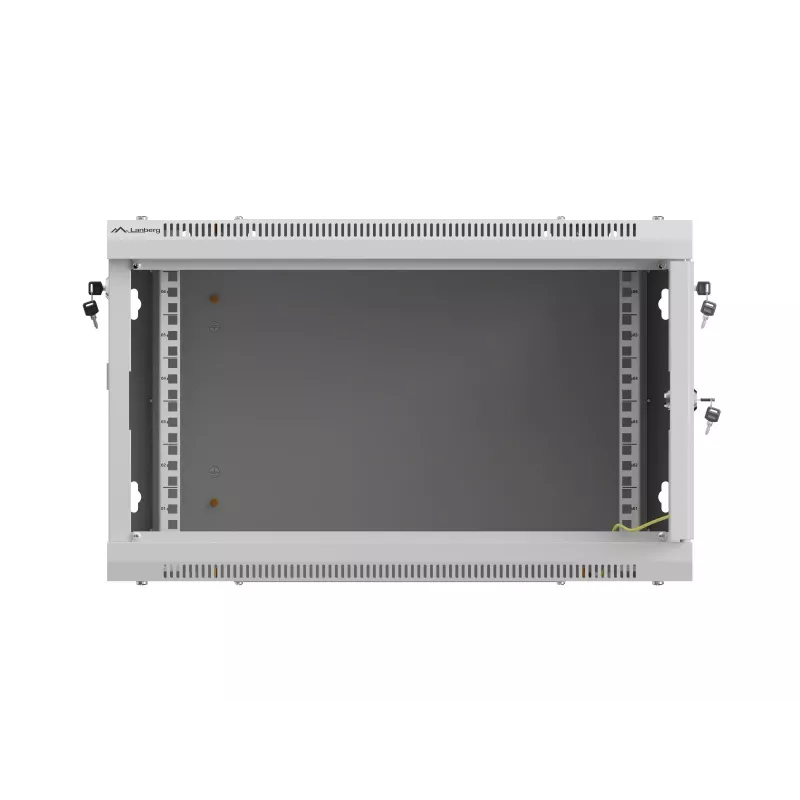

• Adjustable front and rear mounting rails, allowing flexible equipment depth positioning (mounting depth min/max: 250 mm to 550 mm).
• Top and bottom cable entry points for tidy cable management.
• Durable SPCC cold-rolled steel construction with a grey (RAL 7044) finish, static load capacity of 60 kg.
• IP20 protection rating, suitable for indoor use.
• Includes mounting kit and assembly instructions; assembly required.

Specifications

• Brand: Lanberg
• Model: WF01-6606-23S
• MPN: WF01-6606-23S
• EAN: 5901969447460
• Rack capacity: 6U
• External dimensions (W x D x H): 600 x 600 x 370 mm
• Internal dimensions (W x D x H): 540 x 550 x 260 mm
• Mounting depth: 250 mm (min) to 550 mm (max)
• Material: SPCC cold-rolled steel
• Steel thickness: frame 1.2 mm, mounting profile 1.5 mm, side panels 1.0 mm

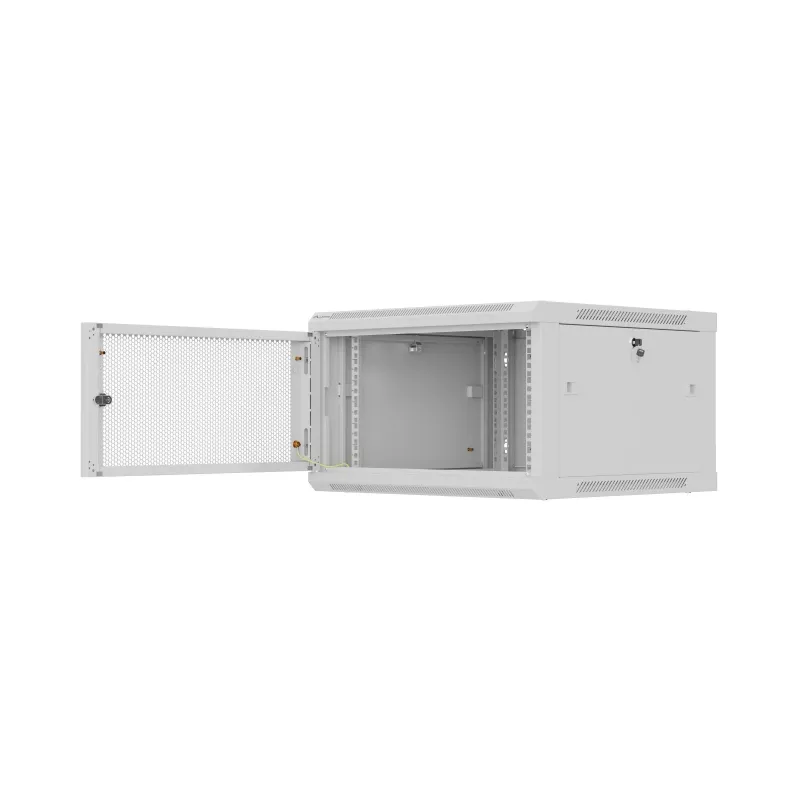

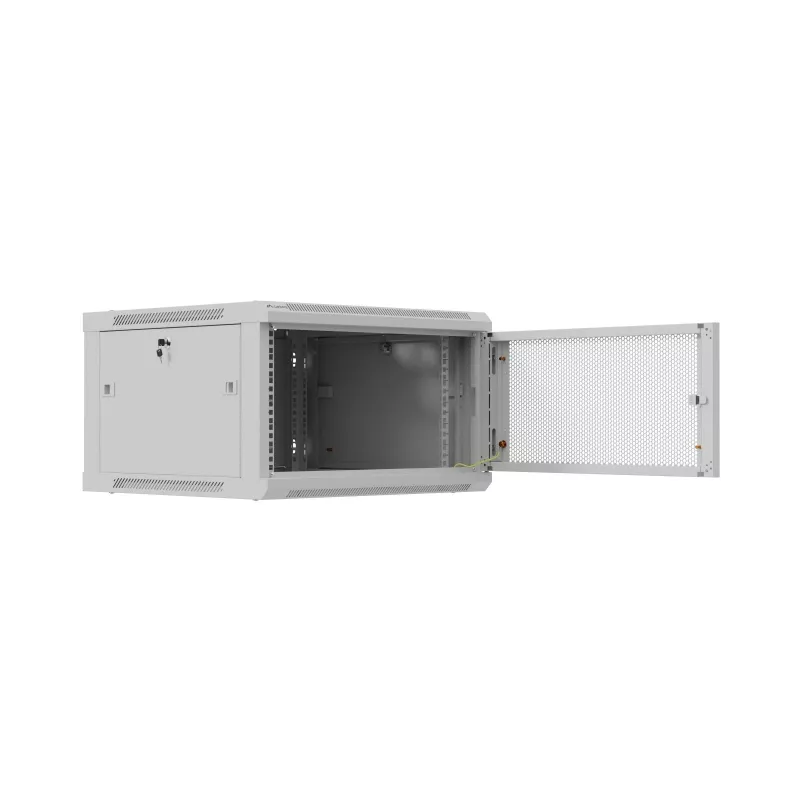

• Front door: Perforated steel, lockable, 180° opening angle
• Side panels: Removable, lockable
• Colour: Grey (RAL 7044)
• Protection rating: IP20
• Static load capacity: 60 kg

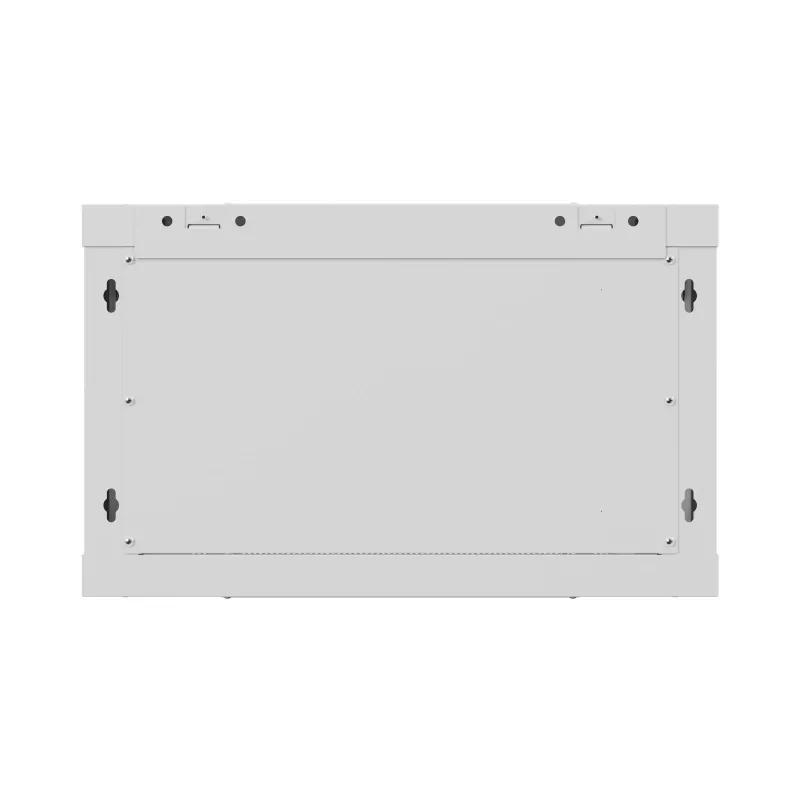

• Mounting type: Wall-mount

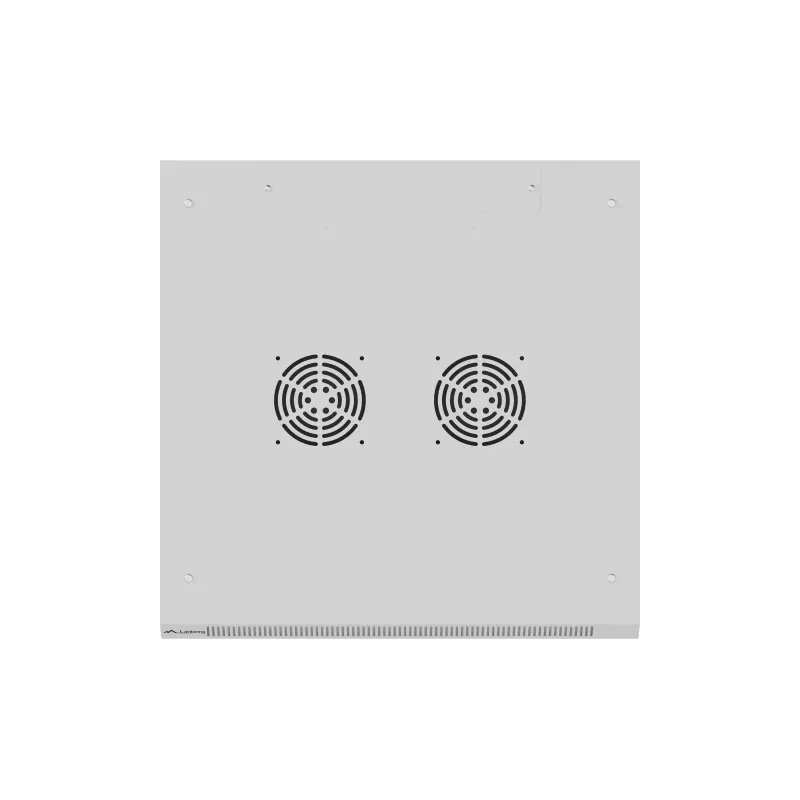

• Ventilation: Passive, fan ready
• Cable entry: Top and bottom
• Assembly required: Yes
• Included accessories: Mounting kit, screws, quick installation guide
• Package dimensions: 650 x 650 x 120 mm (approx.)
• Weight: 18.5 kg

Tips

Before installation, ensure the wall can support the combined weight of the cabinet and equipment (up to 60 kg). Use appropriate wall anchors for your wall type. For optimal airflow, leave at least 10 cm of clearance around the cabinet's vents. If you plan to install active equipment, consider adding a fan kit (not included) to enhance cooling. The adjustable rails make it easy to accommodate deep devices; just loosen the screws, slide the rails to the desired depth, and tighten. For cable management, route cables through the top or bottom entry points and use hook-and-loop straps to keep them organized.
