Lanberg módulo SFP BiDi, hasta 20 km, 1 Gb/s, 1310/1550 nm, LC/UPC, tipo B (SFP1-BIDI-LU-1-20-B)

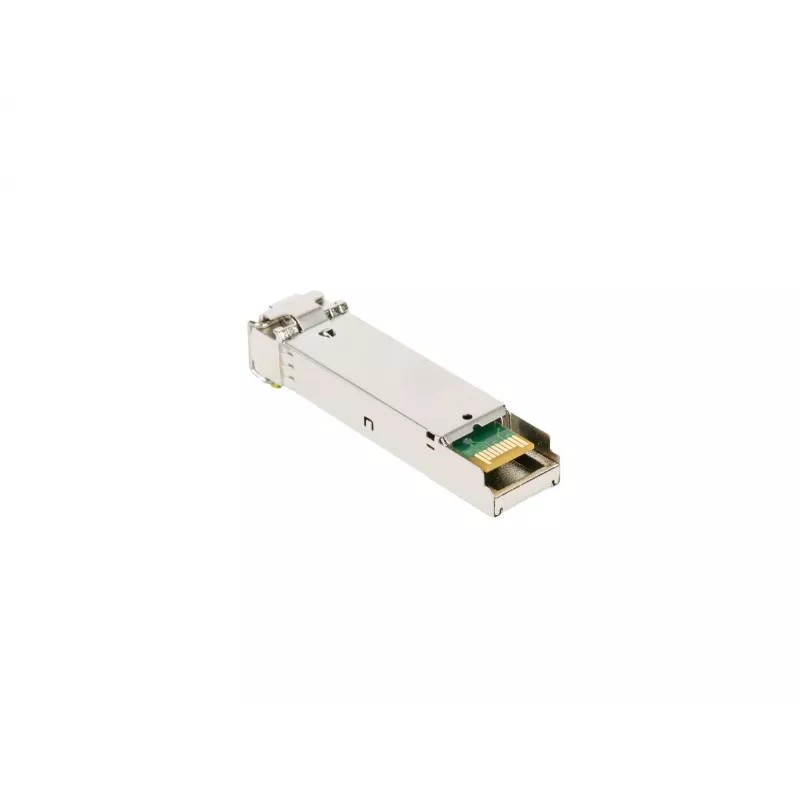

The Lanberg SFP1-BIDI-LU-1-20-B is a BIDI SFP transceiver module for Gigabit Ethernet over single-mode fiber. It uses two wavelengths, 1310 nm and 1550 nm, to enable bidirectional transmission over a single fiber, with a range of up to 20 km.

Key features

• BIDI technology for bidirectional data transmission over one single-mode fiber
• Supports data rates up to 1.25 Gb/s
• Simplex LC/UPC connector
• Hot-swappable SFP form factor
• BIDI B version: TX 1550 nm, RX 1310 nm
• Must be used as a complementary A + B pair

Specifications

• Brand: Lanberg
• MPN: SFP1-BIDI-LU-1-20-B
• Product type: Transceiver Module
• SFP transceiver type: SFP
• Maximum data transfer rate: 1 Gbps
• Ethernet LAN: Yes
• Single-mode fiber (SMF) supported: Yes
• Fiber optic connector: LC
• Connector: LC/UPC
• Range: 20 km
• Wavelengths: 1310 nm and 1550 nm
• Transmitter power (Tx Power): -9 to -3 dBm
• Receiver sensitivity (Rx Sens.): -22 dBm
• Receiver overload threshold (Rx Overload): -3 dBm
• Operating temperature: 0 - 70 °C
• Recommended ambient temperature: 0 - 70 °C
• Recommended ambient humidity: 5 - 85%
• Weight: 0.02
