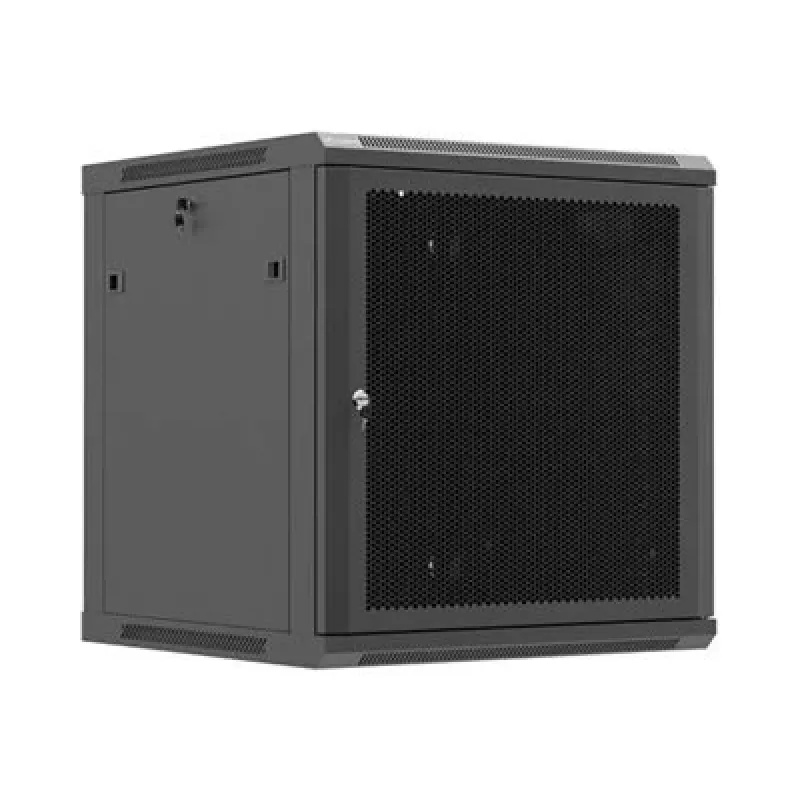

LANBERG WF01-6612-23B Armario rack de pared 19" 12U 600x600mm Flat Pack con puerta perforada negro

The Lanberg WF01 Series wall mountable rack cabinet is designed to support and organize various electronic components in a secure environment. Constructed from cold-rolled steel with a thickness of 1 mm, this installation cabinet features a perforated front door that optimizes airflow, ensuring proper ventilation for the devices inside. With a size of 600 x 600 mm and a height of 12 rack units, it is suitable for a range of applications while maintaining a weight capacity of 60 kg.

Advantages

This cabinet comes with assembly components including a grounding cable, mounting bracket, screws, front door lock, and side locks. The vented top panel enhances cooling efficiency, while the four vertical mounting rails provide flexible installation options. Compliance with various standards such as ETSI and DIN ensures reliability, making it a choice for structured cabling solutions in both commercial and residential settings.

Suitable for

• Network equipment installation in server rooms, offices, and data centers
• Structured cabling systems requiring secure wall-mounted enclosure
• Organizing patch panels, switches, and other 19-inch rack-mountable devices

Key specifications

• Rack Unit Height: 12U
• Rack Standard: 19 inch
• External Width: 600 mm
• External Depth: 600 mm
• External Height: 635 mm
• Internal Usable Depth: Approx. 550 mm
• Load Capacity: 60 kg
• Front Door Type: Perforated Steel
• Front Door Security: Lockable (with key)
• Side Panels: Removable, Lockable
• Rear Panel: Solid
• Material: Cold-rolled steel
• Construction Type: Flat Pack (Self-assembly)
• Color: Black (RAL 9004)
• Protection Class: IP20
• Cable Entry Points: Top and Bottom (adjustable)
• Fan Cutouts: Yes (for 2x 120mm fans on top/bottom)
• Mounting Type: Wall-mount
• Mounting Rails: Adjustable 19" front and rear
• Finish: Powder coated

Recommendations

For optimal performance, ensure proper ventilation and use the fan slots if needed. The cabinet is designed for indoor use only.
