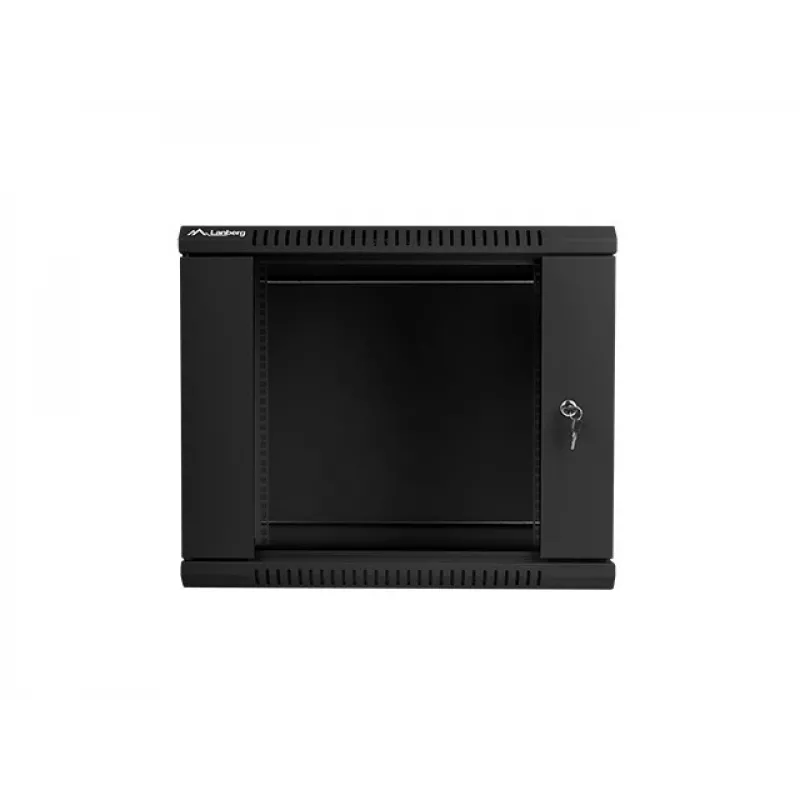

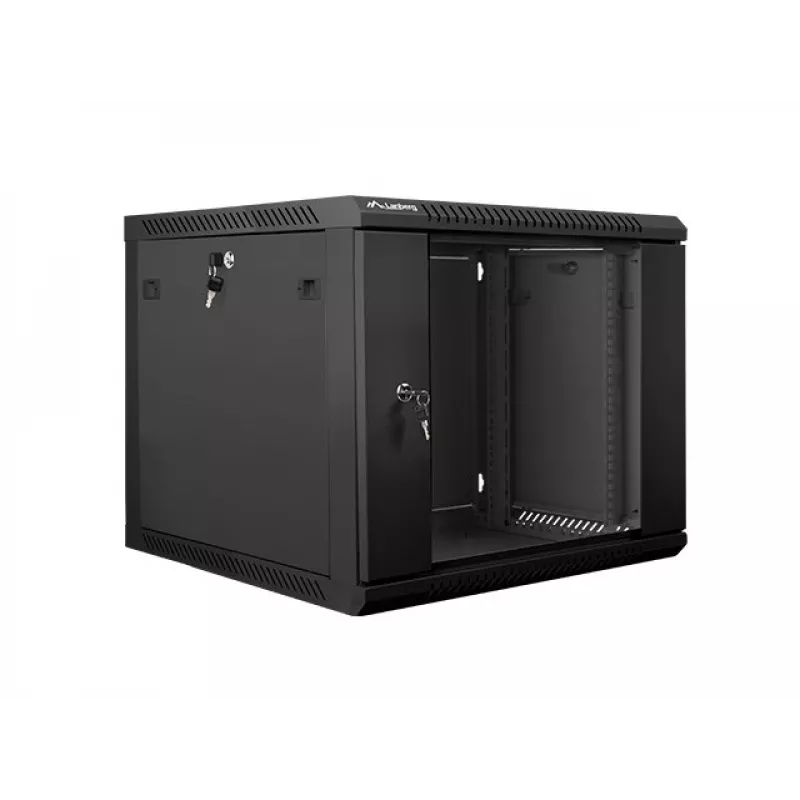

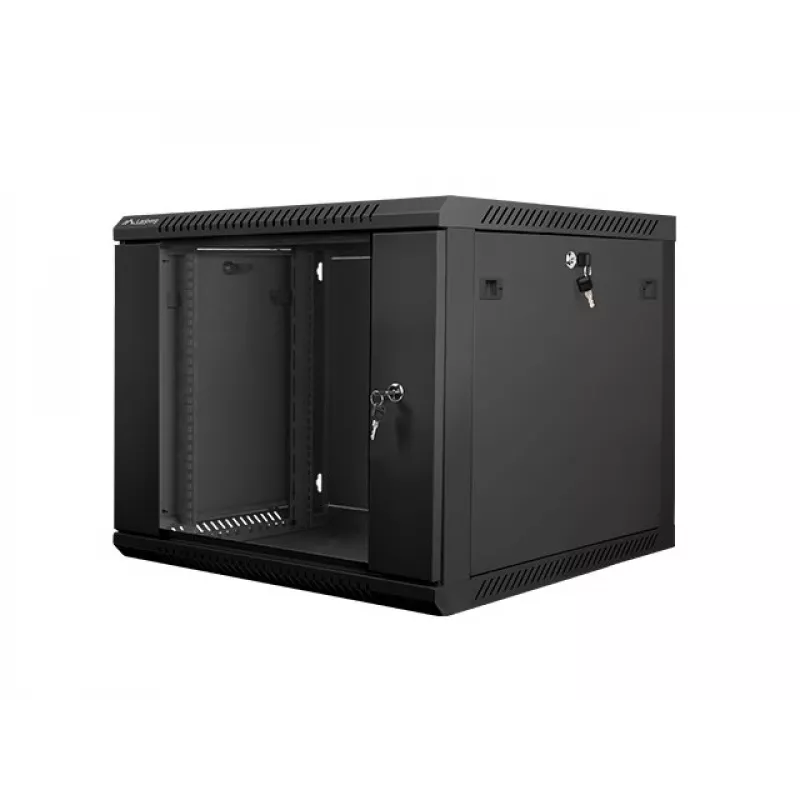

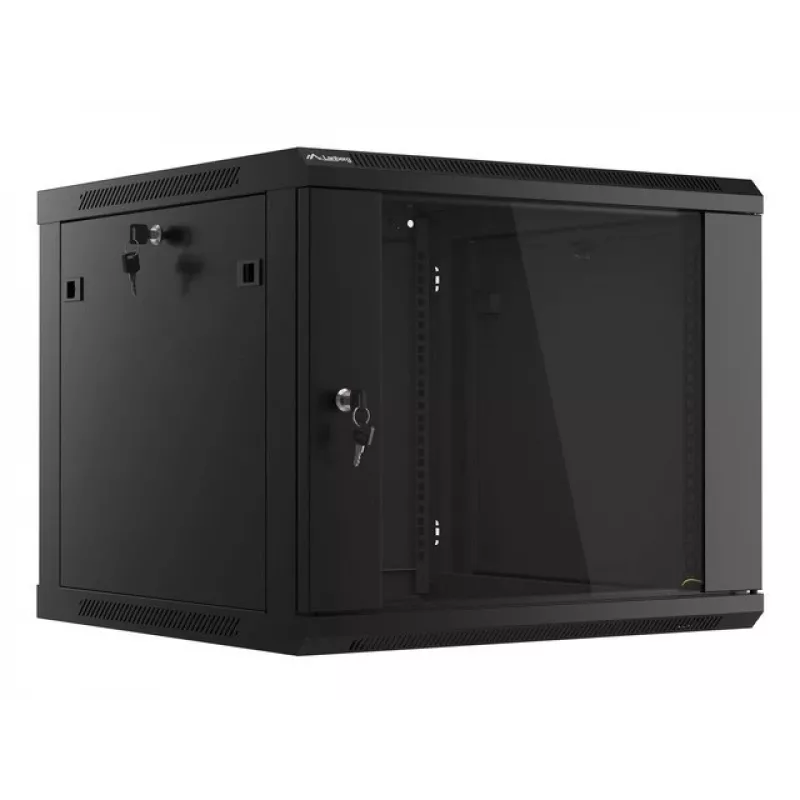

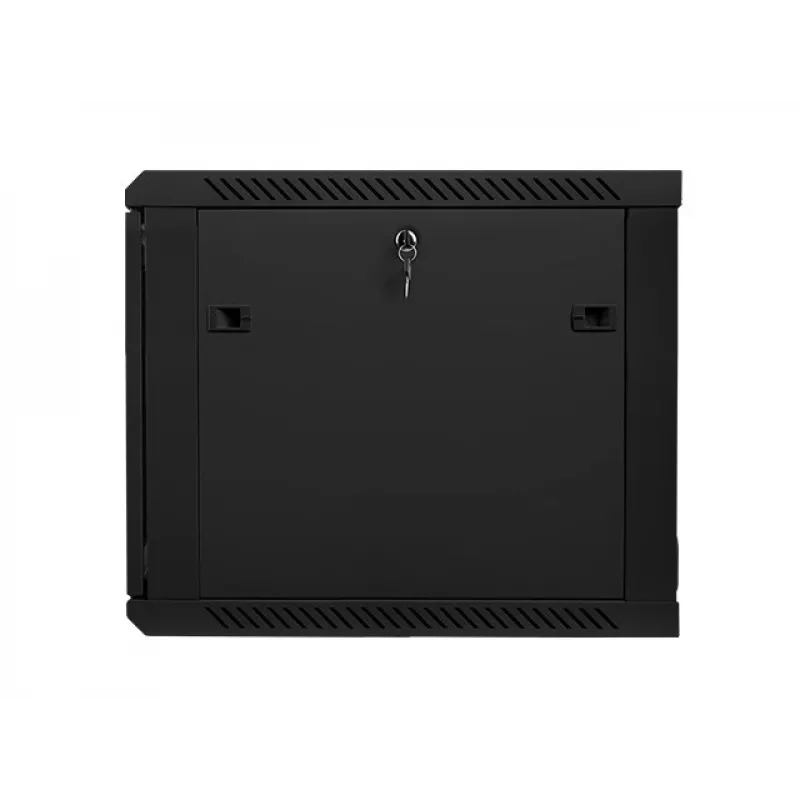

Caja de pared LANBERG 9U 19" WF01-6609-10B, 600×600×507 mm, 60 kg, IP20, negra

Managing network equipment in tight spaces often means compromising on security or accessibility. The Lanberg WF01-6609-10B wall-mounted rack cabinet solves this by providing a compact 9U enclosure that keeps your 19" devices organized, protected, and easy to service without occupying valuable floor space.

Who is it for

This cabinet is ideal for small to medium businesses, IT closets, and server rooms where floor space is limited. It suits installations of network switches, patch panels, CCTV recorders, and low-voltage systems such as alarm, access control, and fire protection.

Main features

• 9U capacity for standard 19-inch equipment
• Supports up to 60 kg of equipment load

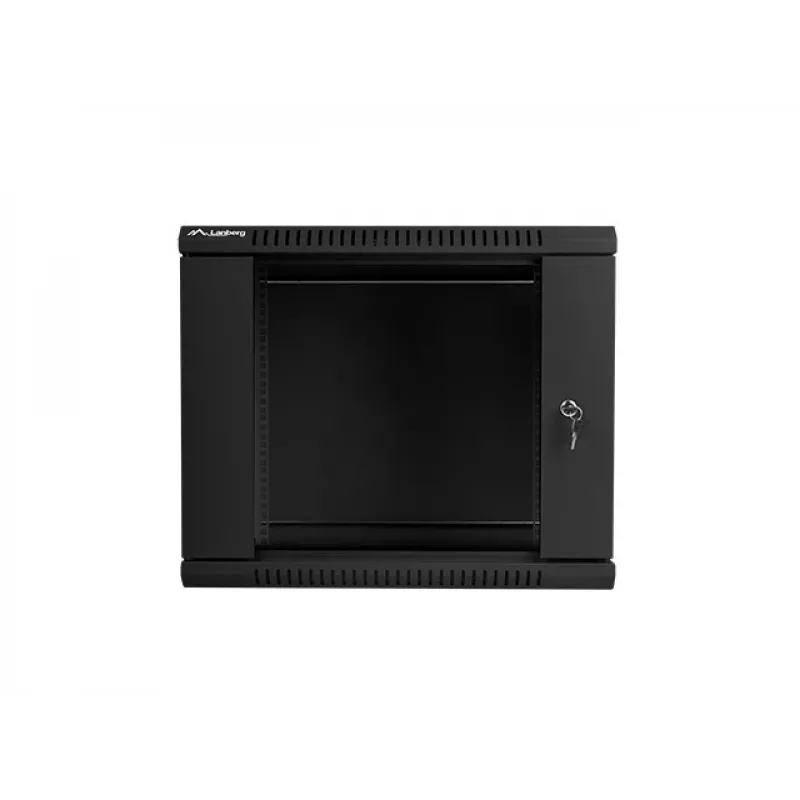

• Lockable tempered glass front door with 180° opening

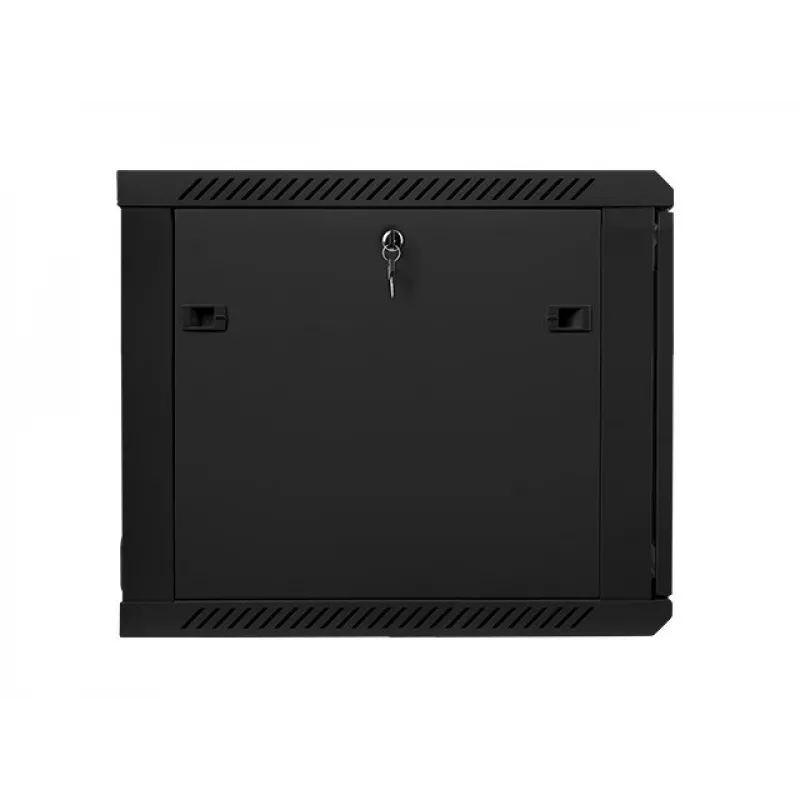

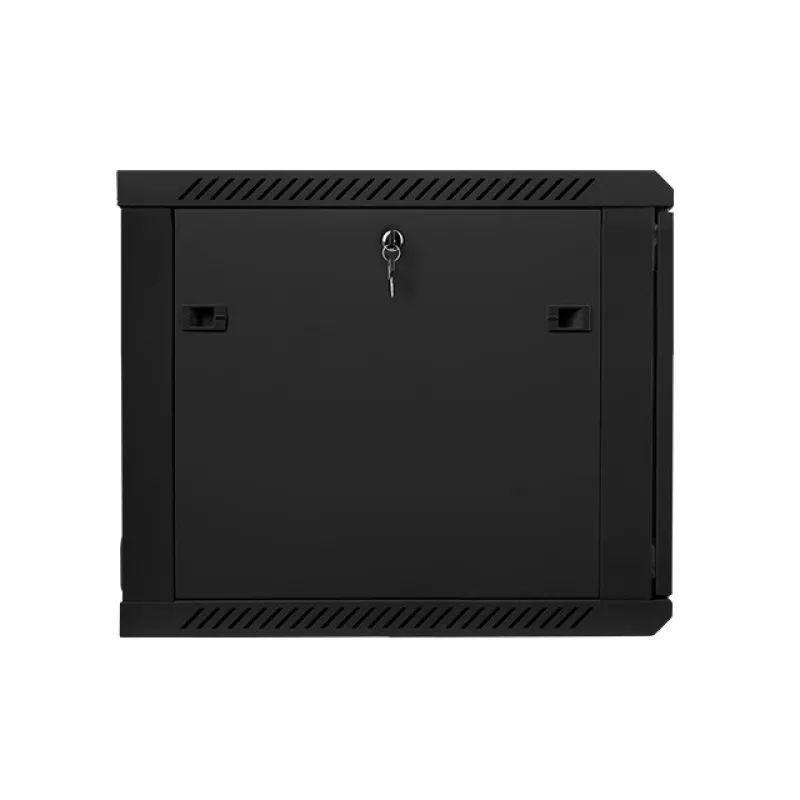

• Removable side panels with locks for easy maintenance
• Adjustable mounting rails for flexible equipment depth
• Top and bottom cable entry panels with blanking plates
• Passive ventilation and fan-ready top panel
• Flat-packed for efficient transport and self-assembly
• Durable cold-rolled steel construction with powder coating

Specifications

• Rack type: Wall-mounted
• Rack units: 9U
• Rack standard: 19-inch
• External dimensions (W×D×H): 600 × 600 × 507 mm
• Maximum load capacity: 60 kg
• IP protection rating: IP20 (indoor use)
• Colour: Black (RAL 9004)
• Material: Cold-rolled steel, powder coated
• Front door: Tempered glass with lock
• Side panels: Removable, with locks
• Mounting rails: Adjustable depth, front and rear
• Cable entry: Top and bottom with blanking panels
• Ventilation: Passive openings, fan-ready top panel
• Assembly: Required (flat pack)
• Included accessories: Mounting kit, 20 sets of M6 cage nuts, 2 keys for front door, 2 keys for side panels

Tips

Before mounting, ensure the wall can support the combined weight of the cabinet and equipment. Use the included cage nuts to secure devices to the adjustable rails, and route cables through the top or bottom entry panels for a clean installation.
