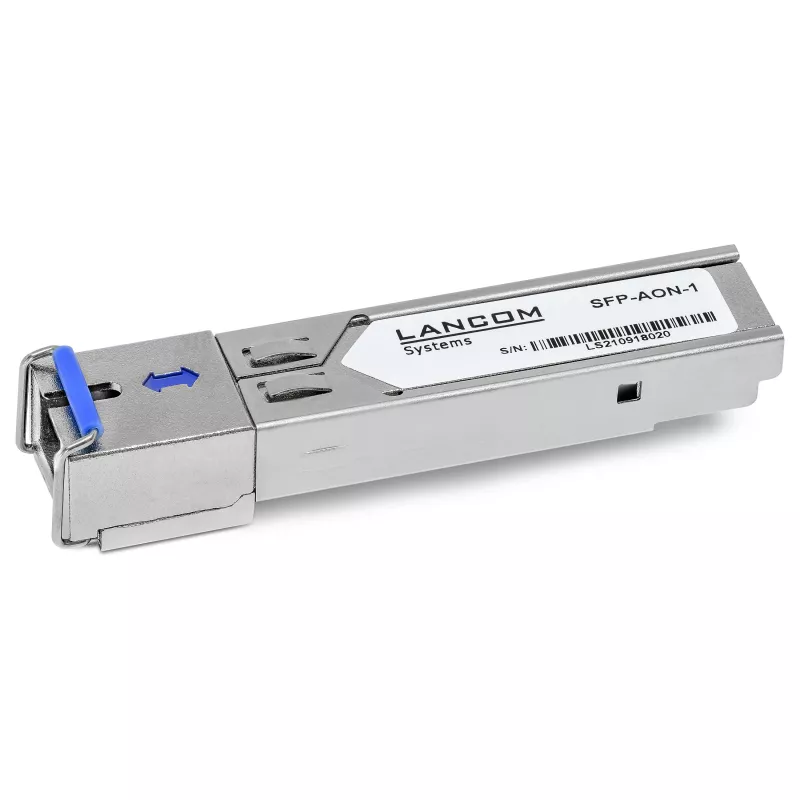

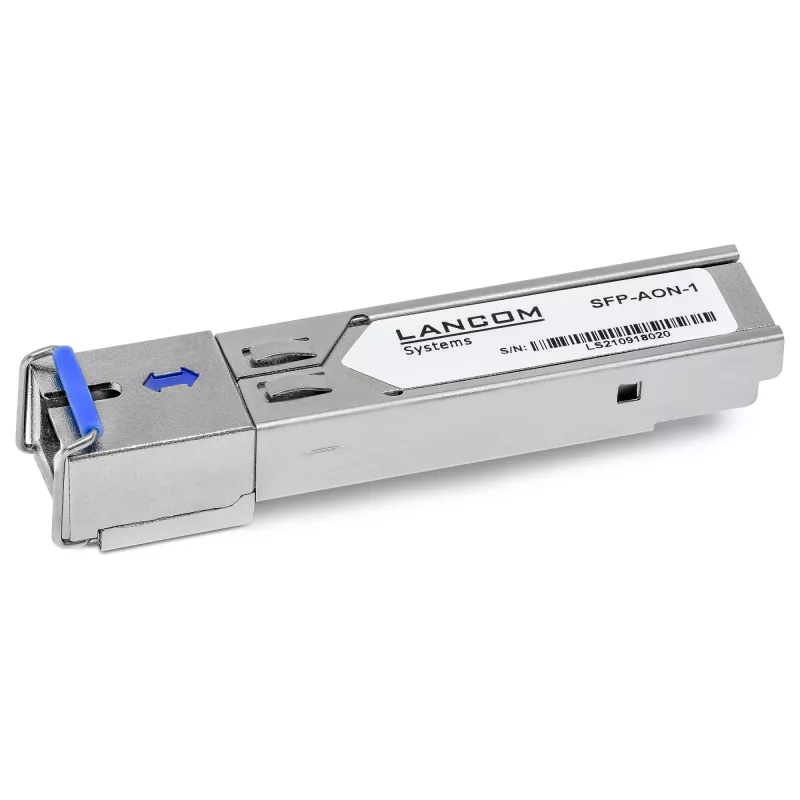

LANCOM SFP-AON-1 transceptor SFP 1.25 Gbps 1310 nm 10 km LC monomodo

The LANCOM SFP-AON-1 is a high-performance SFP (Small Form-Factor Pluggable) transceiver module designed for reliable data transmission over single-mode fiber. With a data rate of 1.25 Gbps and a wavelength of 1310 nm, it supports distances up to 10 km, making it ideal for enterprise and service provider networks. This hot-pluggable module features an LC duplex connector and complies with IEEE 802.3z 1000BASE-LX standards, ensuring seamless integration with compatible networking equipment.

Advantages

This transceiver offers exceptional value with its robust design, low power consumption (<1W), and support for Digital Diagnostic Monitoring (DDM/DOM) for real-time performance monitoring. Its metal housing ensures durability, while RoHS compliance guarantees environmental responsibility. The SFP-AON-1 is a cost-effective solution for extending network reach without compromising on speed or reliability.

Suitable for

• Enterprise network switches and routers
• Data center interconnects
• Metropolitan area networks (MAN)
• Telecommunications infrastructure
• Fiber-to-the-x (FTTx) applications

Key specifications

• Form Factor: SFP
• Data Rate: 1.25 Gbps
• Wavelength: 1310 nm
• Max. Distance: 10 km
• Fiber Type: Single-mode (OS1/OS2)
• Connector: LC Duplex
• DDM/DOM: Yes
• Standard: IEEE 802.3z 1000BASE-LX
• TX Power: -9 to -3 dBm
• RX Sensitivity: -21 dBm
• Optical Budget: 12 dB
• Power Supply: 3.3V
• Power Consumption: <1W
• Operating Temperature: 0°C to 70°C
• Hot-Pluggable: Yes
• Housing: Metal
• RoHS: Yes

Recommendations

For optimal performance, pair the LANCOM SFP-AON-1 with compatible LANCOM switches or routers that support SFP modules. Ensure the use of single-mode fiber patch cables (OS1/OS2) with LC connectors for distances up to 10 km. This module is an excellent choice for upgrading network infrastructure to support high-speed, long-distance connections.
