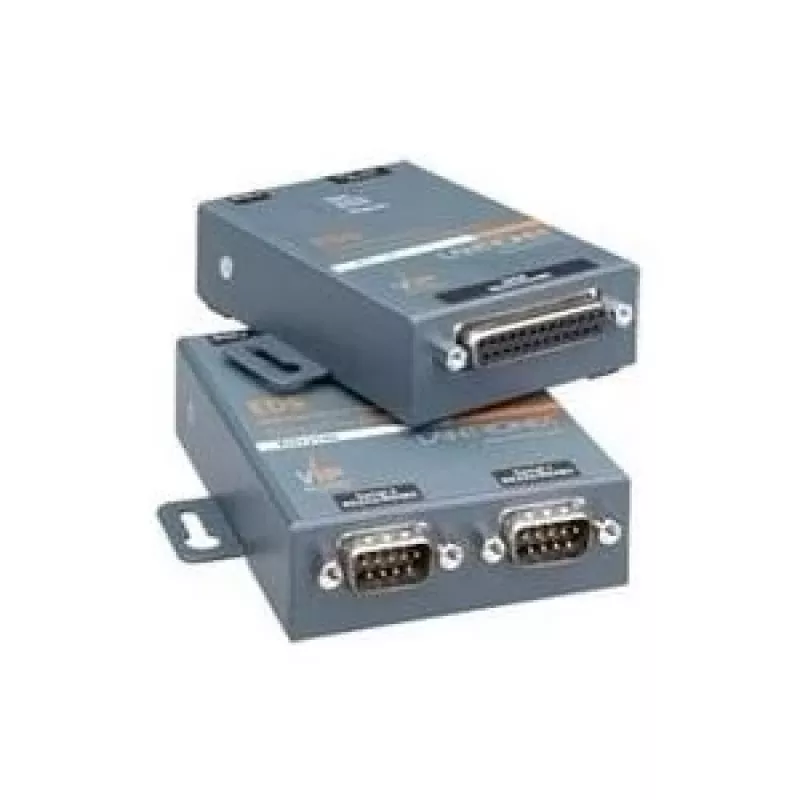

Lantronix EDS1100 Servidor de dispositivos seguro, 1 puerto serie (ED1100002-01)

Industrial automation engineers and system integrators use the Lantronix EDS1100 to connect legacy serial equipment—such as PLCs, barcode scanners, or sensors—to Ethernet networks. This single-port device server converts RS-232/422/485 data to TCP/IP, enabling remote monitoring and control in factory floors, utility substations, and building management systems.

Key specifications

• 1 serial port, software-selectable RS-232/422/485
• 1 x 10/100Base-T Ethernet port (RJ45)
• Security: SSL/TLS, SSH, AES, 3DES, RC4, SHA-1, MD5, FIPS 197 certified AES, Secure Boot, Secure Firmware-Over-The-Air (FOTA)
• Supported protocols: TCP/IP, UDP/IP, DHCP, DNS, HTTP, HTTPS, FTP, TFTP, Telnet, SSH, SNMP, SMTP, ICMP, ARP, RARP, SYSLOG, NTP, RFC2217, PPP, SLIP
• Management: Web Manager (HTTP/HTTPS), CLI (Telnet/SSH), XML, SNMP, Lantronix DeviceInstaller
• Input voltage: 5-30 VDC
• Operating temperature: 0°C to 60°C (32°F to 140°F)
• Baud rate: 300 bps to 230 Kbps
• Data bits: 7, 8; Parity: Odd, Even, None; Stop bits: 1, 2
• Flow control: XON/XOFF, RTS/CTS, DTR/DSR
• Virtual COM Port (VCP) support
• Rugged metal enclosure; wall mount, DIN rail mount (with optional kit)

Why choose it

The EDS1100 provides robust, secure serial-to-Ethernet connectivity with a wide input voltage range and industrial temperature tolerance. Its FIPS 197 certified AES encryption and secure boot features make it suitable for environments where data integrity and device authenticity are critical.

Ideal use cases

• Retrofitting legacy serial devices into modern IP-based SCADA systems
• Remote access to serial consoles of network equipment
• Connecting serial instrumentation in laboratories or production lines
• Building automation and energy management systems

Good to know

The device supports multiple management interfaces, allowing configuration via web browser, command line, or SNMP. Its compact metal housing and optional DIN rail mounting kit enable flexible installation in control cabinets or on walls.
