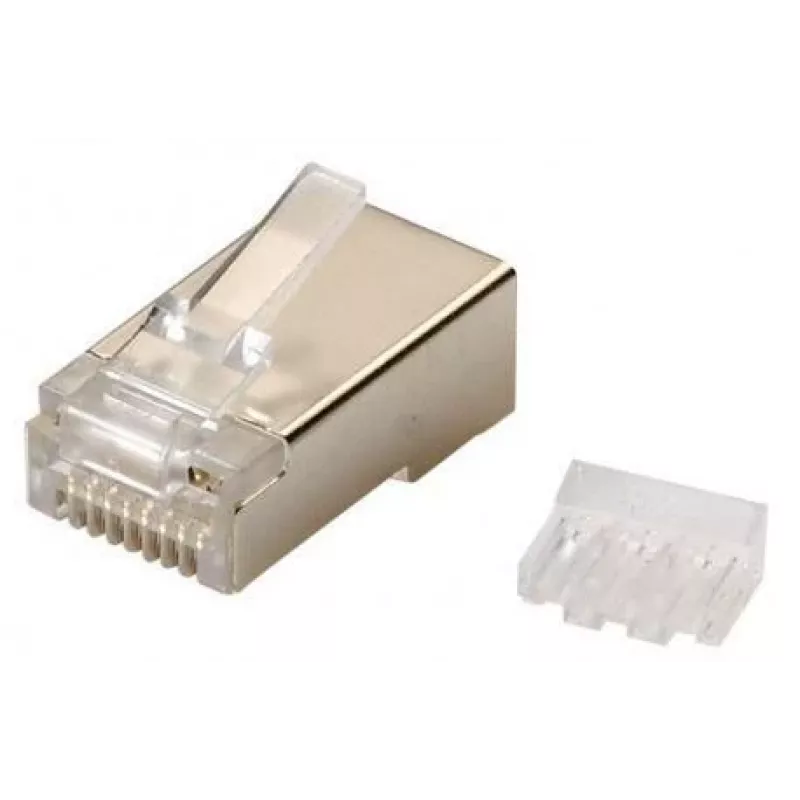

Lanview LVN125419 Conector macho RJ45, metálico

Lanview LVN125419 RJ45 wire connector is a male RJ45 plug designed for direct mounting on network cable with conductor sizes up to AWG 24–26. The connector has a metallic finish and is intended for shielded installations, commonly used in IP camera and other network device installations where a secure, shielded connection is required.

Advantages

The RJ45 plug offers a compact metal-bodied design that supports shielded cabling and provides reliable terminations for field-installed Ethernet lines. Its dimensions (12 mm width, 21 mm depth) and light weight (90 g) make it suitable for tight installation spaces. Supplied as a single connector per pack, it is convenient for point repairs or individual device installations.

Suitable for

• Field termination of shielded Ethernet cables (AWG 24–26)
• Installation of IP cameras and network devices requiring a shielded RJ45 connection
• On-site repairs or single-connector replacements

Key specifications

• Brand: Lanview
• Model / MPN: LVN125419
• EAN: 5704174320579
• Type: Male RJ45 wire connector (plug) for direct cable mounting
• Suitable conductor size: AWG 24–26
• Finish: Metallic (shielded)
• Weight: 90 g
• Dimensions: 12 mm (W) × 21 mm (D)
• Pack quantity: 1 connector per pack

How to use

Prepare the shielded Ethernet cable by stripping the outer jacket and exposing the individual conductors and overall shield according to standard practice. Insert and terminate the conductors into the RJ45 plug following the connector's wiring orientation, ensuring proper contact and shield continuity. After termination, assemble any housing or strain relief if provided and verify the connection with a network tester before final installation.

Recommendations

Use this connector with shielded twisted-pair cable and maintain continuous shield contact from cable to connector. Verify conductor size compatibility (AWG 24–26) and test the terminated link to confirm correct wiring and signal integrity.
