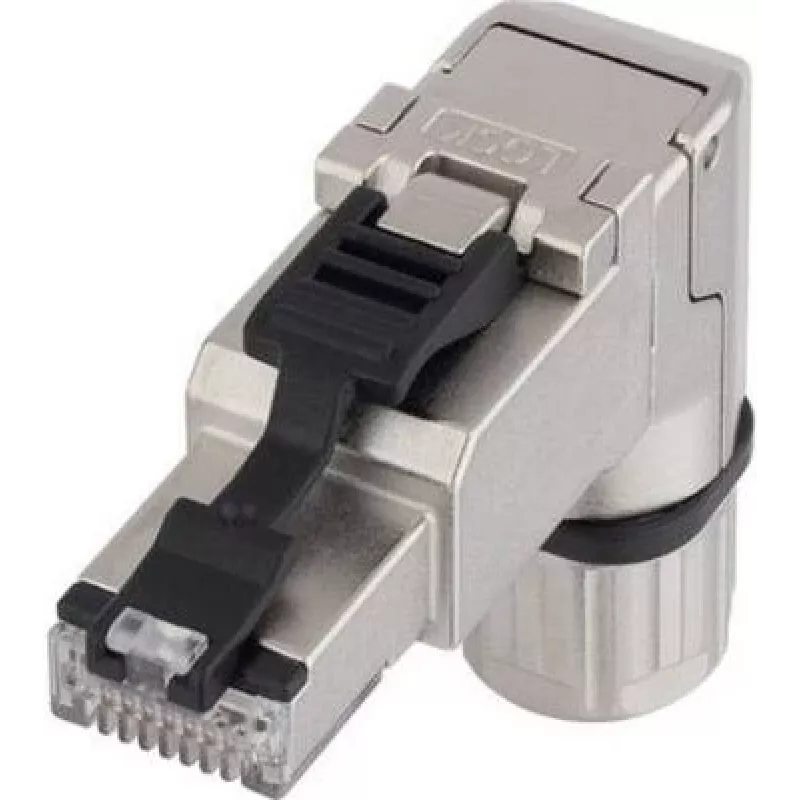

LAPP ED-IE-90-6A-PN-20-FC conector RJ45 industrial Cat.6A acodado montable en campo 21700638

Terminate solid or stranded industrial Ethernet cable up to 10 Gigabit speeds without tools — the LAPP ED-IE-90-6A-PN-20-FC delivers Cat.6A performance in a compact 90° angled RJ45 plug. Its zinc die-cast nickel-plated housing and shielded IDC contacts withstand harsh environments, while the 5.0–9.0 mm cable clamp accommodates a wide range of cable diameters. Field-attachable and reusable, this connector is built for fast, reliable on-site assembly in automation, machinery, and control cabinet applications.

Overview

This angled RJ45 plug is engineered for industrial Ethernet networks where space is tight and reliability is non-negotiable. The 90° cable exit reduces strain and allows connections in confined areas. With support for Power over Ethernet up to PoE++ (IEEE 802.3bt), it can power devices directly through the data cable. The tool-free IDC termination accepts both solid conductors (AWG 24/1–22/1) and stranded conductors (AWG 26/7–22/7), making it versatile for different cable types. Its Cat.6A rating ensures full 10GBASE-T performance up to 500 MHz, compliant with ISO/IEC 11801 and TIA/EIA-568 standards.

What stands out

• 90° angled design for tight spaces and reduced cable stress
• Tool-free IDC termination — no special tools required
• Supports 10 Gigabit Ethernet and PoE++ (IEEE 802.3bt)
• Robust zinc die-cast nickel-plated housing, IP20 rated
• Wide cable diameter range: 5.0–9.0 mm
• High mating cycles (>750) for long service life

Technical details

• Connector type: RJ45 plug, male, 8P8C
• Performance category: Cat.6A (IEC 61935-2)
• Shielding: Shielded (STP)
• Termination: Field-attachable, tool-free IDC
• Conductor compatibility: Solid AWG 24/1–22/1, stranded AWG 26/7–22/7
• Cable diameter: 5.0–9.0 mm
• Housing material: Zinc die-cast, nickel-plated
• Operating temperature: -40°C to +70°C
• Standards: IEC 60603-7-51, ISO/IEC 11801, EN 50173, TIA/EIA-568
• Application: Industrial Ethernet

Our verdict

For industrial network installers, the LAPP ED-IE-90-6A-PN-20-FC is a top-tier choice. Its angled form factor solves space constraints, while the tool-free termination speeds up assembly without sacrificing Cat.6A performance. The rugged metal housing and wide temperature range make it suitable for demanding environments. If you need a reliable, high-speed field connector for industrial Ethernet, this is an excellent investment.
