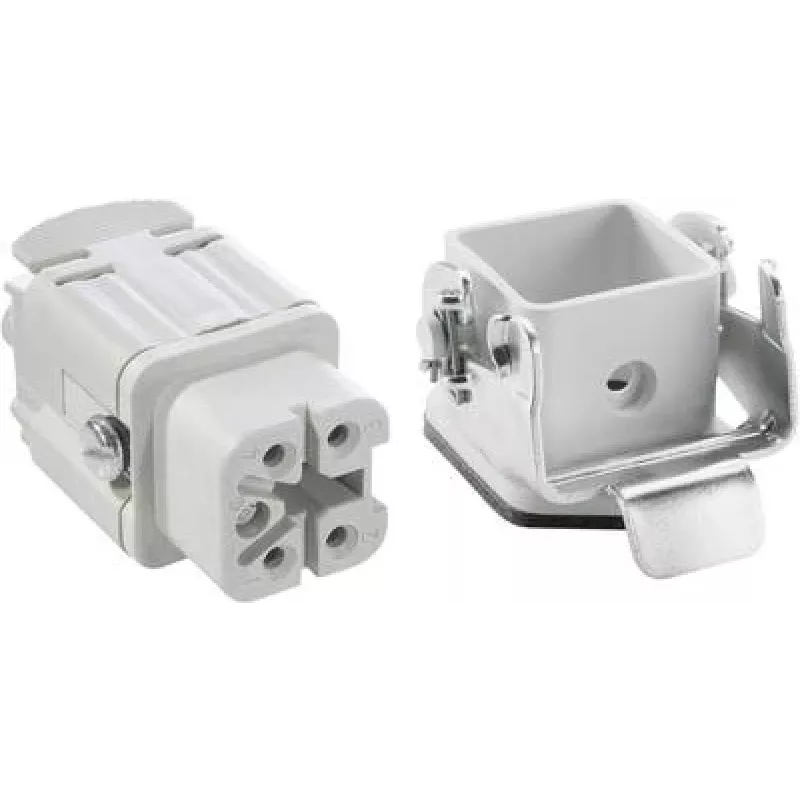

LAPP EPIC KIT H-A 4 set de conectores con bornes de tornillo 4+PE 75009617

The LAPP EPIC KIT H-A 4 connector set provides a complete rectangular industrial connector solution in one package, including hood, base, and a 4+PE screw terminal insert. This kit simplifies assembly for machinery and panel wiring where a reliable, field-serviceable connection is required.

Highlights

• Complete kit: hood, base, and insert with screw terminals
• 4 power contacts plus protective earth (PE)
• Screw termination for tool-free field wiring
• Die-cast aluminium housing with grey finish
• Rated for 250 V and 10 A

In daily use

The screw terminals accept conductors from 0.5 to 2.5 mm² (AWG 20–14), making the kit suitable for a wide range of industrial power and signal applications. The single-lever locking mechanism ensures quick and secure mating, while the M20 cable gland thread accommodates standard cable glands for strain relief and sealing.

Full specifications

• Connector series: EPIC® H-A
• Number of contacts: 4 + PE
• Termination type: screw terminal
• Rated voltage: 250 V
• Rated current: 10 A
• Housing material: die-cast aluminium
• Insert material: polycarbonate (PC)
• Contact material: copper alloy, silver plated
• Protection rating: IP65 when mated
• Operating temperature range: -40°C to +100°C
• Flammability rating: UL94 V-0
• Conductor cross-section: 0.5 - 2.5 mm² (AWG 20-14)
• Cable gland thread: M20
• Locking mechanism: single lever
• Number of mating cycles: 100
• Connector type: rectangular industrial
• Housing colour: grey

Final note

The EPIC KIT H-A 4 is a practical choice for engineers and technicians who need a dependable, easy-to-assemble connector set for industrial environments.
