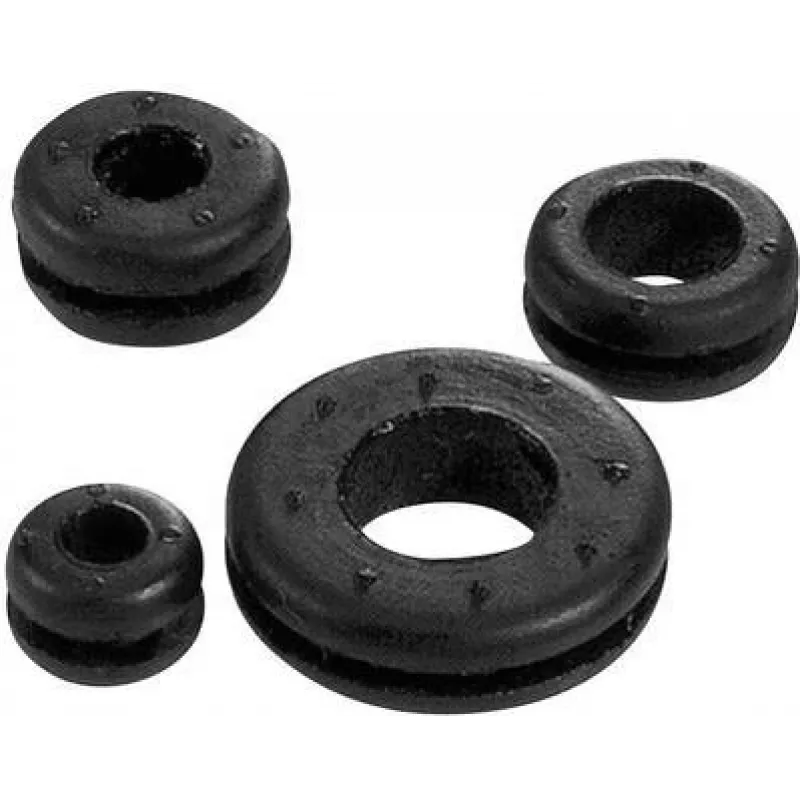

LAPP SKINDICHT LA 6 prensaestopas, caucho de cloropreno, negro, rango de apriete 4-6 mm, pack de 100 61713550

Cable sealing bush from the SKINDICHT LA series, crafted from chloroprene rubber (CR) for reliable cable entry, strain relief, and sealing in enclosures and housings. Its self-extinguishing material and IP54 protection ensure safe operation even under demanding conditions.

Advantages

The SKINDICHT LA 6 offers excellent resistance to acids, alkalis, oils, and greases, making it suitable for industrial environments. The halogen-free chloroprene rubber is UV-resistant and maintains flexibility across a wide temperature range from -30°C to +100°C. With a clamping range of 4 to 6 mm and a bore hole diameter of 8 mm, it provides a secure fit for cables while protecting against dust and splashing water (IP54).

Suitable for

• Cable entry and sealing in control cabinets, junction boxes, and machinery
• Strain relief for cables with diameters between 4 and 6 mm
• Applications requiring resistance to oils, greases, and chemicals
• Outdoor installations thanks to UV resistance
• Use in environments where halogen-free materials are required

Key specifications

• Material: Chloroprene rubber (CR), black (RAL 9005)
• Clamping range: 4 - 6 mm
• Bore hole diameter: 8 mm
• Outer diameter: approx. 9.5 mm, height: approx. 6 mm
• Protection class: IP54
• Temperature range: -30°C to +100°C
• Flame retardant: self-extinguishing
• Halogen-free and UV-resistant
• Pack quantity: 100 pieces

Recommendations

For optimal sealing, ensure the bore hole is clean and free of burrs. The bush can be easily pressed into the hole and accommodates cables within the specified clamping range. Store in a cool, dry place away from direct sunlight to maintain material properties.
