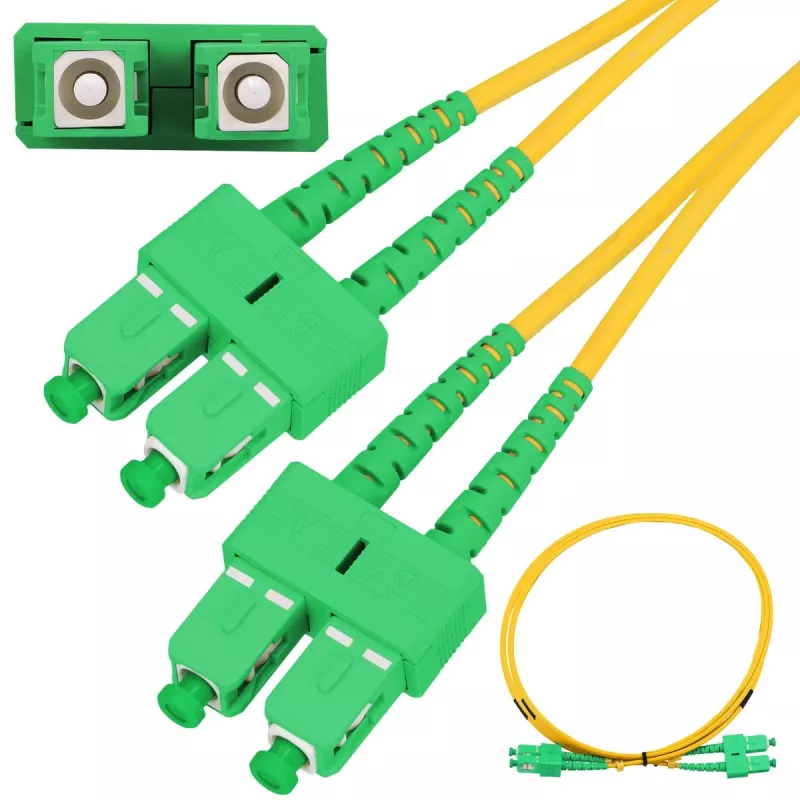

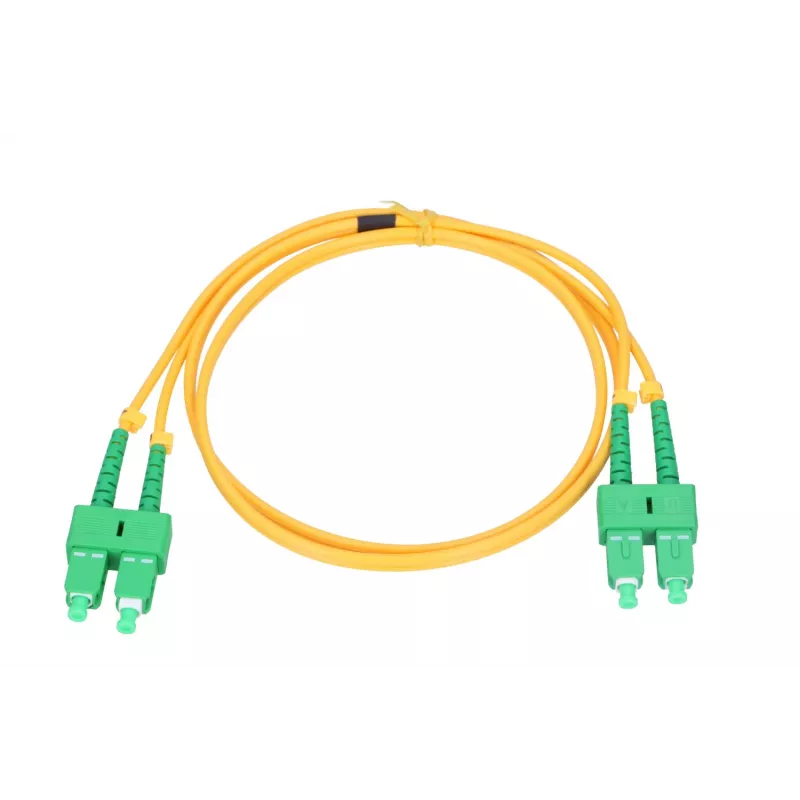

Latiguillo Extralink SC/APC–SC/APC monomodo dúplex G.657.A1 3 mm 5 m

Patchcord Extralink SC/APC–SC/APC Singlemode Duplex G.657.A1 3 mm 5 m is a singlemode duplex fibre optic patchcord with SC/APC connectors on both ends and a 5 m length. The cable uses bend-insensitive G.657.A1 fibre in a 3 mm jacket and is intended for full-duplex signal transmission in optical networks, splice cabinets, ONT connections and indoor FTTH installations where compact routing and low bend loss are required.

Advantages

This patchcord provides low bend loss thanks to G.657.A1 bend-insensitive fibre and maintains stable singlemode performance for long-distance and access network links. The duplex SC/APC–SC/APC termination ensures APC angled mating for reduced back reflection, suitable for optical equipment requiring low return loss. The 3 mm jacket offers mechanical protection and easier handling in indoor installations, while the 5 m length covers typical connection distances between distribution points, ONTs and active devices.

Suitable for

• FTTH indoor connections between ONT/ONU and customer-premises equipment
• Patch panels and splice cabinets in access networks
• Interconnections between optical transceivers, switches and converters
• Environments requiring compact routing and minimized fibre bend loss

Key specifications

• Fibre type: singlemode G.657.A1 bend-insensitive
• Connector type: SC/APC to SC/APC duplex
• Mode: duplex for full-duplex transmission
• Cable diameter: 3 mm
• Cable length: 5 m
• Jacket: indoor-rated protective sheath

How to use

Connect each SC/APC connector to the corresponding SC/APC receptacle on the devices or patch panel, ensuring proper alignment and a secure push-in engagement until it clicks. Route the 3 mm cable along cable management paths or inside ducting, avoiding sharp bends and tight knots; the G.657.A1 fibre provides increased bend tolerance but standard handling practices should be observed. For duplex connections ensure transmit and receive ports are correctly paired to establish full-duplex communication.

Recommendations

Before installation, inspect connector endfaces for contamination and clean if necessary with appropriate fibre-cleaning tools. Avoid repeated sharp bending and maintain minimum bend radius as recommended for indoor fibre cabling; secure the cable with clips or ties without compressing the jacket. Use this patchcord for indoor FTTH and equipment interconnects where low back reflection and bend insensitivity are required.
