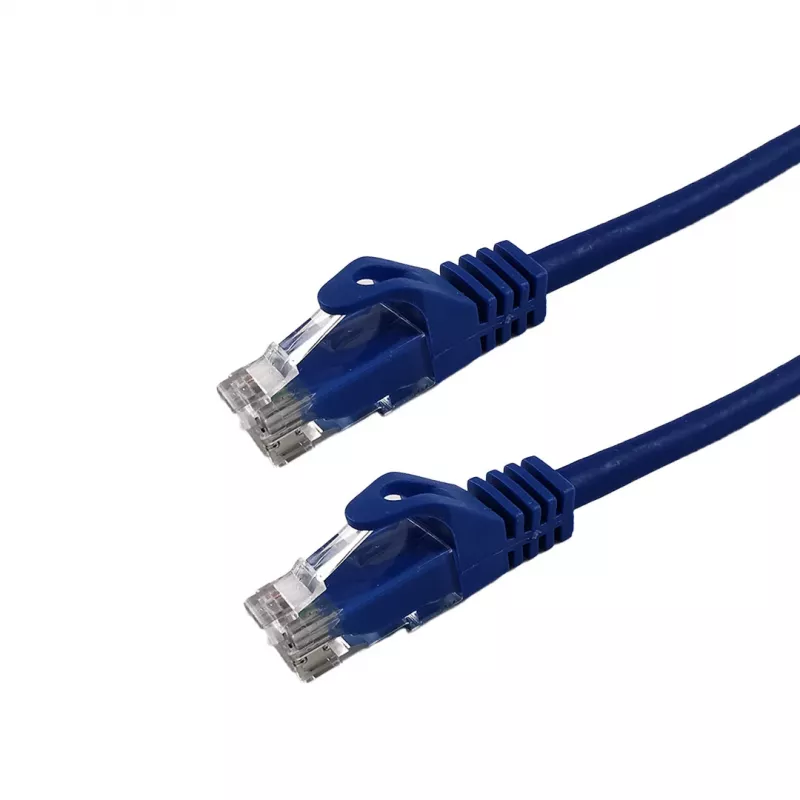

Latiguillo Grafenthal CAT6 S/FTP CU LSZH 7,50m azul

The Grafenthal Patch Cable CAT6 S/FTP CU LSZH 7.50m Blue is a high-performance network cable designed for reliable Gigabit Ethernet connections. With pure copper conductors and S/FTP shielding, it ensures minimal crosstalk and interference, making it ideal for data centers, server rooms, and professional LAN installations. The LSZH jacket provides enhanced fire safety, emitting low smoke and zero halogen in case of fire.

Advantages

This patch cable offers superior signal integrity and durability. The gold-plated contacts ensure corrosion resistance and optimal conductivity. The stranded construction provides flexibility for easy routing in tight spaces. Compliant with RoHS and CE standards, it meets environmental and safety requirements.

Suitable for

• Network connections in offices, data centers, and home networks
• Connecting computers, switches, routers, and patch panels
• 10/100/1000BASE-T Ethernet networks
• 10GBASE-T applications up to 55 meters

Key specifications

• Cable Type: Patch Cable
• Category: CAT6
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Conductor Material: Pure Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 7.5 meters
• Color: Blue
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated contacts (50µm)
• Wire Gauge: 26 AWG
• Cable Construction: Stranded
• Bandwidth: Up to 250 MHz
• Data Transfer Rate: Up to 1 Gbps (supports 10 Gbps up to 55m)
• Impedance: 100 Ohm
• Wiring Standard: TIA/EIA-568-B.2-1
• Operating Temperature: -20°C to 60°C
• Number of Pairs: 4 Twisted Pairs

Recommendations

For optimal performance, use with CAT6 compatible devices. Ensure proper cable management to avoid bending beyond the minimum bend radius. This cable is suitable for permanent installations where fire safety is a priority.
