Latiguillo Grafenthal CAT6A S/FTP CU LSZH 2,00m amarillo

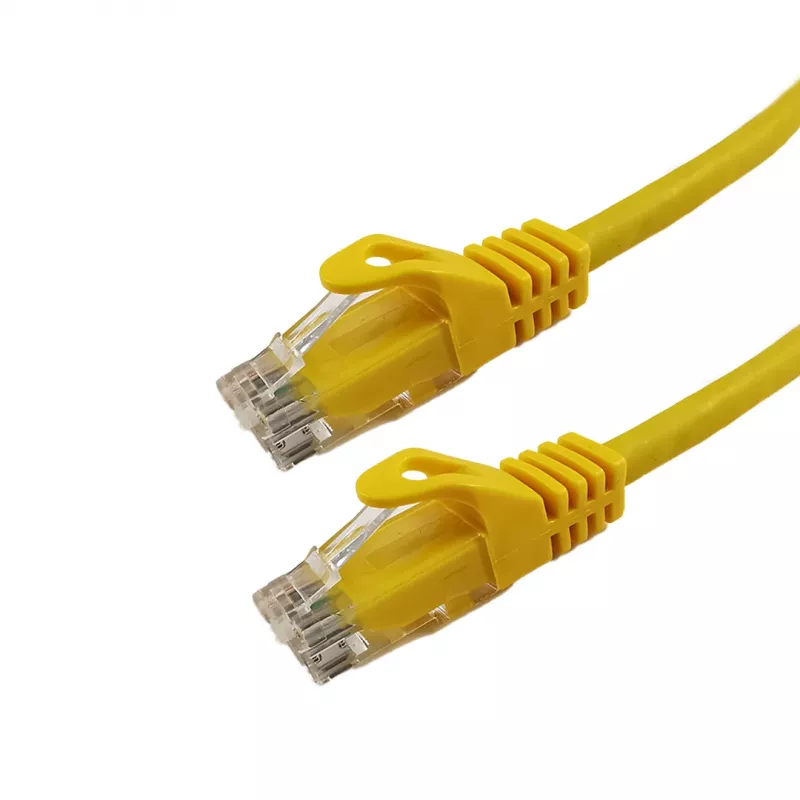

The Grafenthal Patch Cable CAT6A S/FTP CU LSZH 2.00m Yellow is a high-performance Ethernet cable designed for reliable 10 Gigabit network connections. Manufactured with 100% copper conductors and S/FTP shielding, it ensures minimal crosstalk and interference, making it ideal for data centers, server rooms, and professional IT environments.

Advantages

This patch cable offers superior signal integrity and data transfer rates up to 10 Gbps, supporting bandwidths of up to 500 MHz. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic emissions in case of fire. Snagless boots protect the RJ45 connectors during installation and removal, while PoE compatibility (PoE, PoE+, UPoE) allows power delivery over the same cable.

Suitable for

• Data centers and server rooms requiring high-speed, reliable connections
• 10GBASE-T networks in enterprise environments
• Structured cabling systems where low smoke and halogen-free materials are mandated
• Power over Ethernet applications such as IP cameras, wireless access points, and VoIP phones

Key specifications

• Cable Type: Patch Cable
• Cable Category: CAT6A (Category 6a)
• Shielding Type: S/FTP (Screened/Foiled Twisted Pair)
• Conductor Material: 100% Copper (Cu)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Length: 2.0 meters
• Cable Color: Yellow
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Wiring Standard: TIA/EIA-568B
• Conductor Gauge: 26 AWG
• Contact Plating: Gold-plated (50µm)
• Boot Type: Snagless
• PoE Support: Yes (PoE, PoE+, UPoE compatible)
• Operating Temperature: -20°C to +60°C
• Compliance: RoHS, CE
• Outer Diameter: Approx. 6.2 mm
• Number of Pairs: 4 Twisted Pairs

Recommendations

For optimal performance in high-speed networks, pair this CAT6A patch cable with compatible switches and network interface cards. Ensure proper cable management to maintain signal integrity and avoid physical damage.
