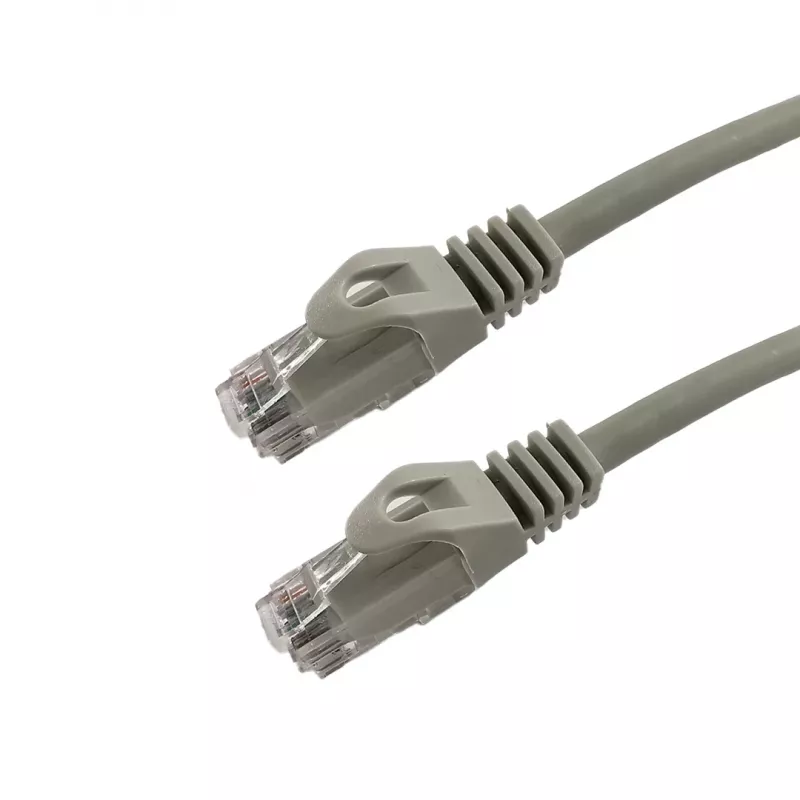

Latiguillo Grafenthal CAT6A S/FTP CU LSZH 2,00m gris

The Grafenthal Patch Cable CAT6A S/FTP CU LSZH 2.00m Grey is a high-performance Ethernet cable designed for reliable, high-speed data transmission in professional network environments. Manufactured with pure copper conductors and S/FTP shielding, this cable ensures excellent signal integrity and protection against electromagnetic interference. The LSZH (Low Smoke Zero Halogen) jacket makes it ideal for use in public and commercial spaces where safety is a priority.

Advantages

This patch cable offers superior performance for 10 Gigabit Ethernet networks, supporting bandwidths up to 500 MHz. The S/FTP shielding (screened and foiled twisted pairs) provides robust protection against crosstalk and external noise, ensuring stable and fast data transfer. The pure copper conductors guarantee optimal conductivity and durability. The LSZH jacket reduces toxic smoke and halogen emissions in case of fire, making it suitable for installations in schools, hospitals, offices, and other sensitive environments.

Suitable for

• Data centers and server rooms requiring high-speed connections
• Enterprise networks with 10GBASE-T applications
• Power over Ethernet (PoE) devices such as IP cameras, access points, and VoIP phones
• Structured cabling in commercial and residential buildings
• Any environment where low smoke and halogen-free materials are required

Key specifications

• Cable Type: Patch Cable
• Category: CAT6A (Category 6A)
• Shielding Type: S/FTP (Screened/Foiled Twisted Pair)
• Conductor Material: Pure Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 2.00 meters
• Colour: Grey
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gbps (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Conductor Gauge: 26 AWG
• Wiring Standard: TIA/EIA-568B
• Connector Plating: Gold-plated (50µm)
• Cable Construction: Stranded
• Outer Diameter: Approx. 6.0 mm
• Flame Retardancy: IEC 60332-1-2
• Halogen Free: Yes
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Recommendations

For optimal performance in high-speed networks, pair this CAT6A patch cable with compatible Gigabit or 10 Gigabit switches and network interface cards. Ensure proper cable management to maintain signal integrity and reduce strain on connectors.
