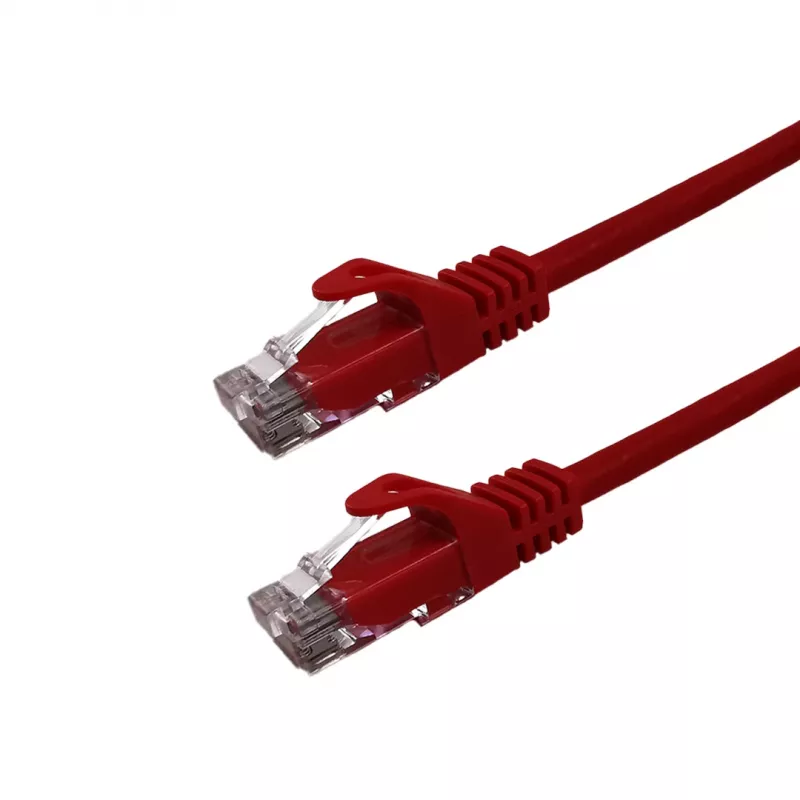

Latiguillo Grafenthal CAT6A U/UTP CU LSZH 0,50m rojo

The Grafenthal Patch Cable CAT6A U/UTP CU LSZH 0.50m Red is a high-performance Ethernet patch cable designed for reliable 10 Gigabit network connections. Manufactured with 100% bare copper conductors and a Low Smoke Zero Halogen (LSZH) jacket, this cable ensures safety and signal integrity in data centers, server rooms, and office networks.

Advantages

This CAT6A cable supports bandwidth up to 500 MHz and data transfer rates up to 10 Gbps, making it ideal for high-speed applications. The U/UTP (unshielded) design reduces crosstalk and interference, while the LSZH jacket minimizes toxic smoke and fumes in case of fire, ensuring compliance with safety regulations. Gold-plated RJ45 connectors provide corrosion-resistant, reliable connections.

Suitable for

• Data centers and server rooms
• Enterprise local area networks (LAN)
• Home office and professional networking
• 10GBASE-T applications
• Structured cabling systems

Key specifications

• Cable Type: Ethernet Patch Cable
• Category: CAT6A (Category 6a)
• Shielding: U/UTP (Unshielded Twisted Pair)
• Conductor Material: 100% Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 0.50 m
• Color: Red
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Conductor Gauge: 26 AWG
• Wiring Standard: TIA/EIA-568-B.2 (T568B)
• Construction: Stranded Copper Conductors
• Number of Pairs: 4 Twisted Pairs
• Connector Plating: Gold-plated contacts
• Compliance: RoHS, CE, TIA/EIA-568-C.2
• Flammability Rating: IEC 60332-1
• Outer Diameter: Approx. 6.0 mm
• Operating Temperature: -20°C to 60°C

Recommendations

For optimal performance, use this cable with CAT6A compatible network equipment. Ensure proper cable management to avoid kinking or sharp bends. This cable is suitable for permanent installations where low smoke and halogen-free materials are required.
