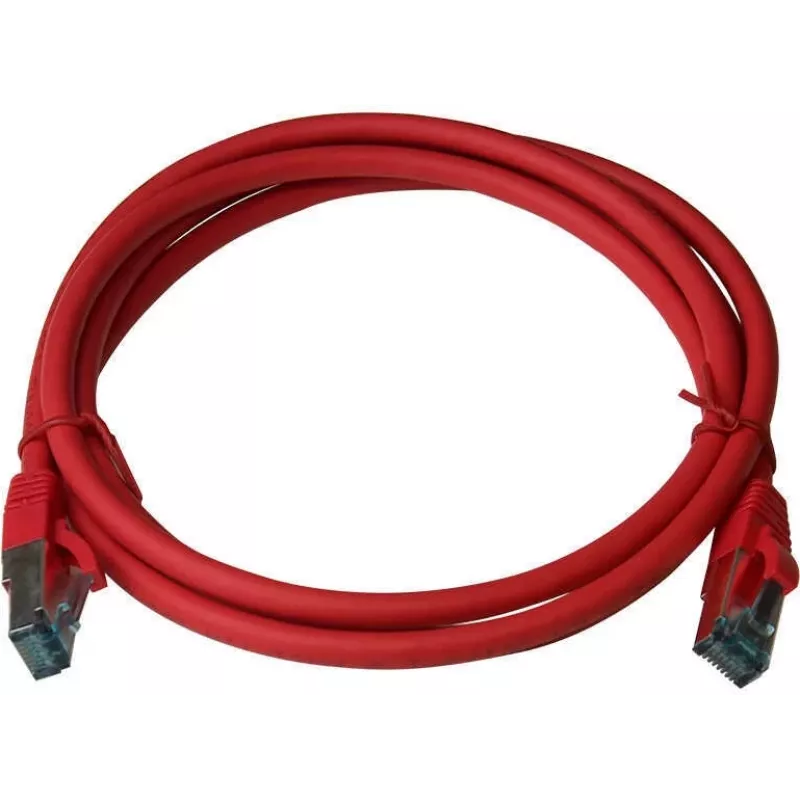

Latiguillo IT-BUDGET Full Copper Premium - Cat.6A - 500 MHz - libre de halógenos - PoE+ - AWG 26/7 - rojo - 0,15 m

The IT-BUDGET Full Copper Premium Patch Cable is a high-performance Cat.6A Ethernet cable designed for demanding network environments. With a bandwidth of 500 MHz and support for 10 Gigabit Ethernet (10GBASE-T), this cable ensures fast and reliable data transmission. The cable features full copper conductors (AWG 26/7 stranded) and a low smoke zero halogen (LSZH) jacket, making it ideal for use in areas where safety and signal integrity are critical. It supports PoE+ (IEEE 802.3at) for powering devices such as IP cameras and wireless access points. The 0.15 m length is perfect for short connections in patch panels or between nearby devices.

Advantages

Full copper conductors provide superior conductivity and signal quality compared to copper-clad aluminum (CCA) cables. The LSZH jacket reduces toxic smoke and fumes in case of fire, making it suitable for public buildings and data centers. The stranded conductor design offers flexibility and durability for frequent handling. PoE+ support allows simultaneous data and power transmission up to 30W per port.

Suitable for

• Data networking in server rooms, data centers, and telecommunications closets
• Connecting network switches, routers, and patch panels
• Powering PoE+ devices such as IP cameras, VoIP phones, and wireless access points
• High-speed applications requiring 10 Gigabit Ethernet

Key specifications

• Ethernet Category: Cat.6A
• Bandwidth: 500 MHz
• Data Transfer Rate: Up to 10 Gbps
• Conductor Material: Full Copper (Cu)
• Conductor Gauge: AWG 26/7 (stranded)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• PoE Support: PoE+ (IEEE 802.3at)
• Cable Length: 0.15 m
• Cable Color: Red
• Connector Type: RJ45 Male to RJ45 Male
• Shielding: U/UTP (Unshielded Twisted Pair)
• Wiring Standard: TIA/EIA 568B

Recommendations

For optimal performance, use this cable with Cat.6A or higher compatible network equipment. Ensure proper cable management to avoid kinking or sharp bends. This cable is backward compatible with Cat.6, Cat.5e, and Cat.5 networks.
