Lavavajillas integrable Bosch Serie 4 SMV4HVX11E — 14 cubiertos, totalmente integrable 60 cm, clase energética C

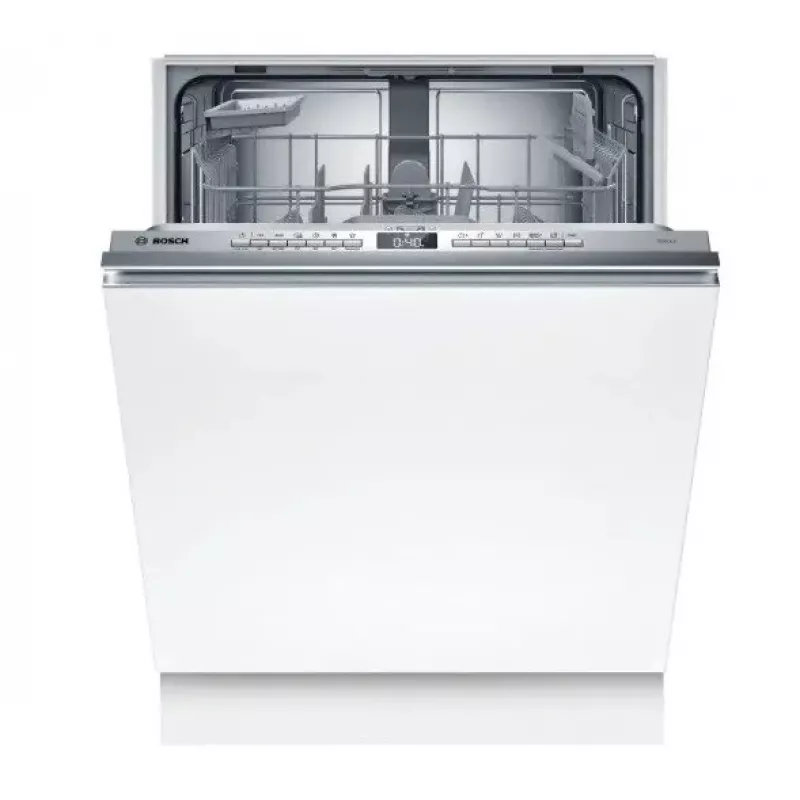

Bosch Serie 4 SMV4HVX11E is a fully built-in, full-size (60 cm) dishwasher designed for 14 place settings. It offers six wash programs including Quiet 50°C, a heat-exchanger drying system and a Vario cutlery basket. The appliance has an adjustable upper basket, AquaStop leak protection, half-load option and Wi‑Fi control. Energy efficiency class C, 9 L water consumption per cycle and a noise level of 46 dB make it suitable for household kitchens where integrated installation and quiet operation are required.

Advantages

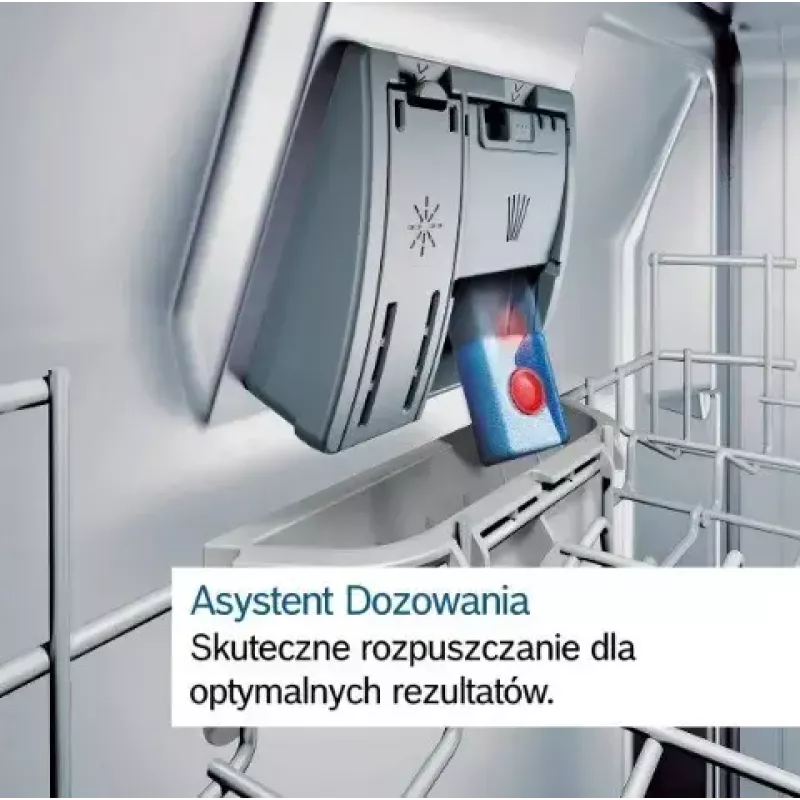

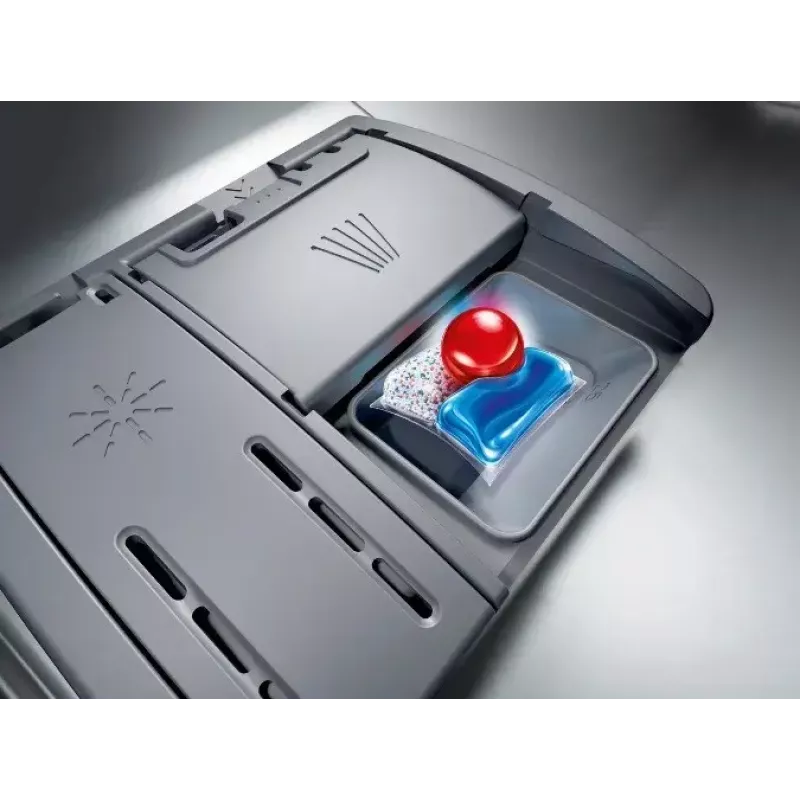

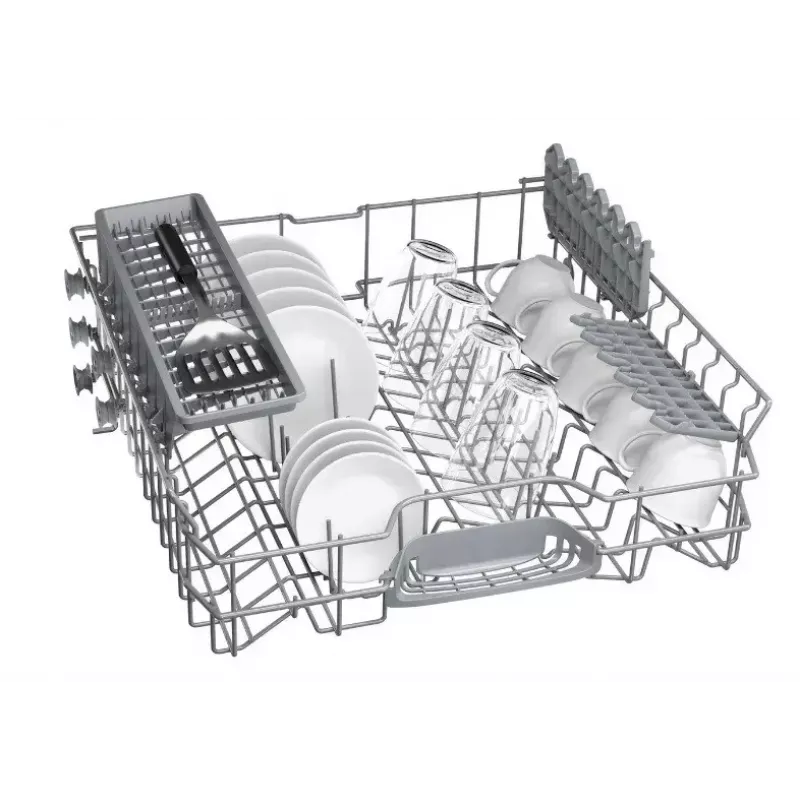

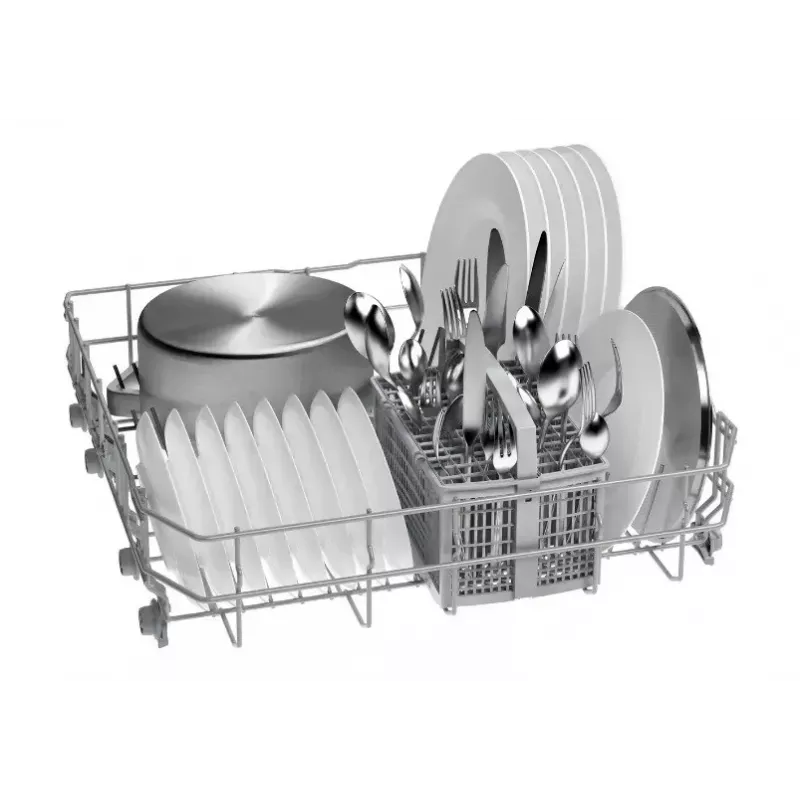

The dishwasher combines a full-size capacity for 14 place settings with compact built-in dimensions and a heat-exchanger drying system that reduces temperature shock to dishes. Quiet 50°C program and a 46 dB noise level enable low-noise operation. Practical features such as an adjustable upper basket, Vario cutlery basket, half-load option, delayed start up to 24 hours and Wi‑Fi control provide flexible loading and scheduling. AquaStop offers continuous leak protection and the dosage assistant helps optimize detergent use.

Suitable for

• Families or households requiring a 14-place setting dishwasher
• Fully built-in kitchen installations with a 60 cm cabinet space
• Users who prefer quiet operation and delayed start scheduling
• Homes where water- and energy-efficient daily dishwashing is needed

Key specifications

• Type: Fully built-in, full-size (60 cm)
• Capacity: 14 place settings
• Number of wash programs: 6 (including Quiet 50°C)
• Energy efficiency class: C (scale A to G)
• Water consumption: 9 L per cycle
• Energy consumption: 75 kWh per 100 cycles
• Noise level: 46 dB (noise emission class C)
• Drying system: Heat exchanger with extra dry option

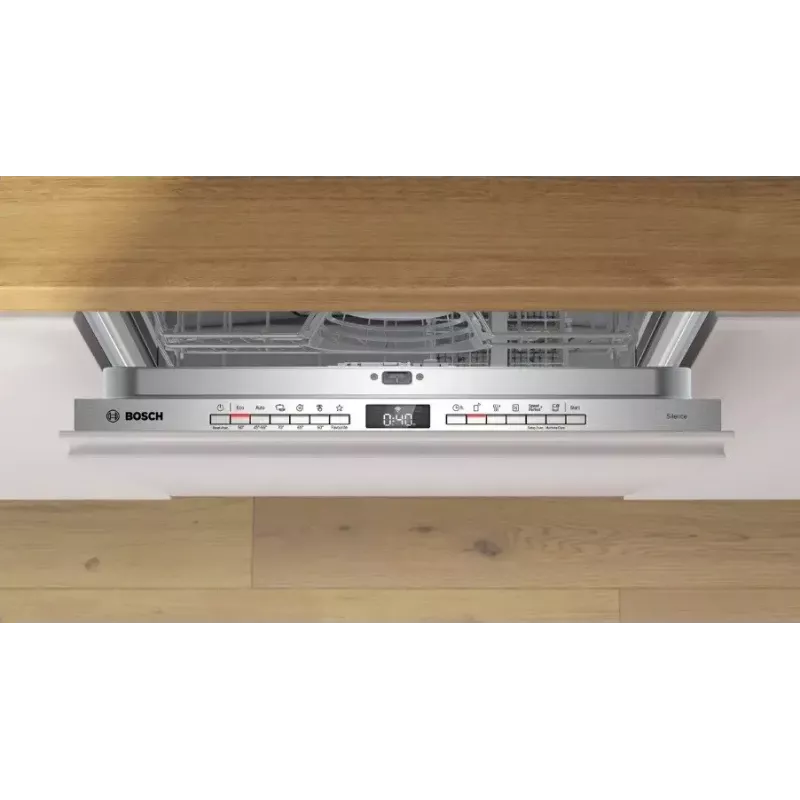

• Controls: Buttons with built-in display and Wi‑Fi control

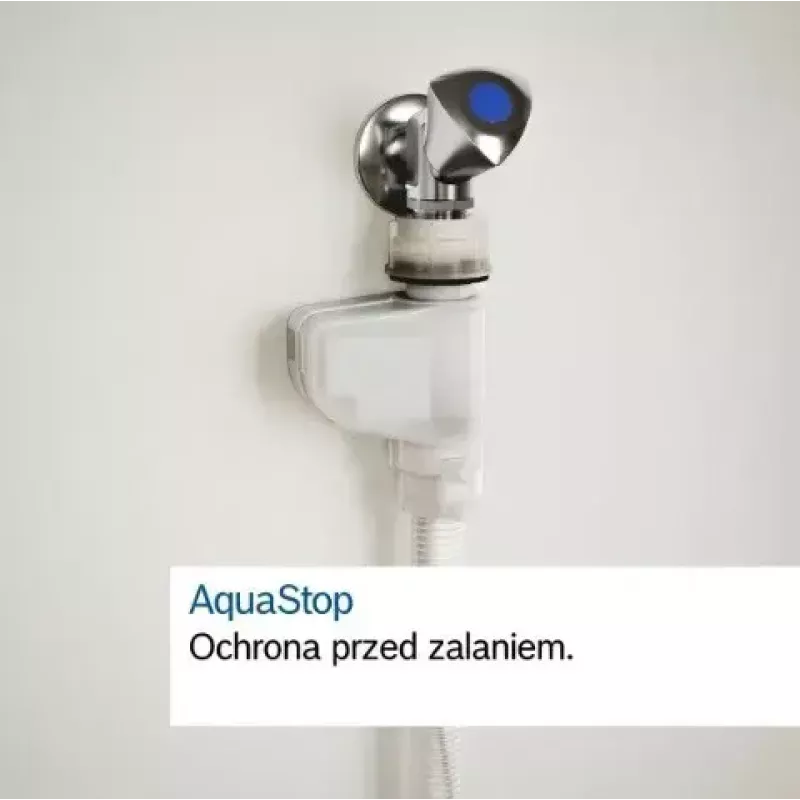

• Protection: AquaStop leak protection

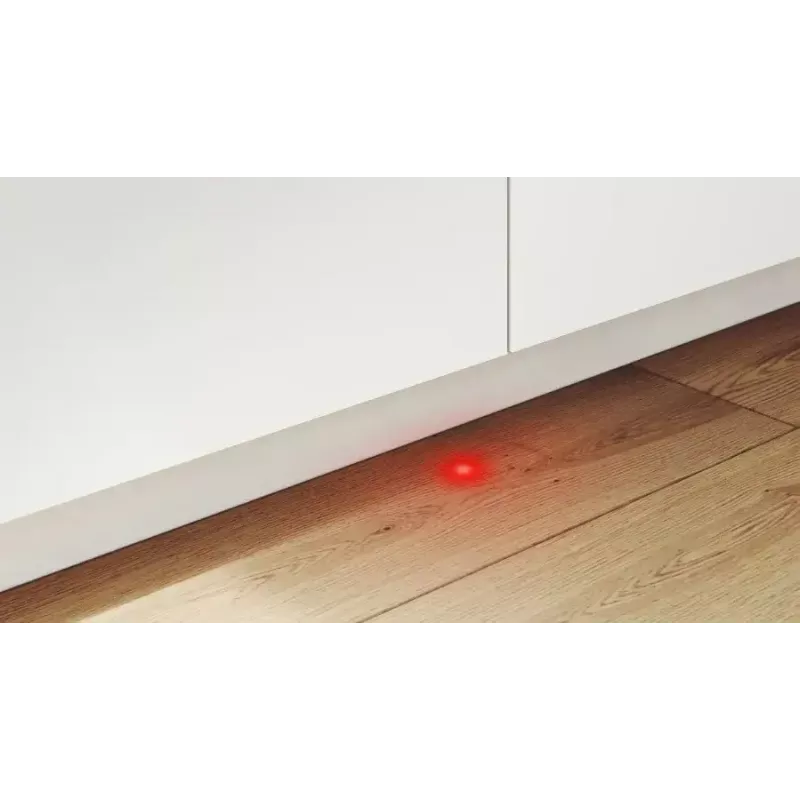

• Additional functions: Half-load, delayed start (up to 24 h), dosage assistant, remaining time indication, floor indicator light

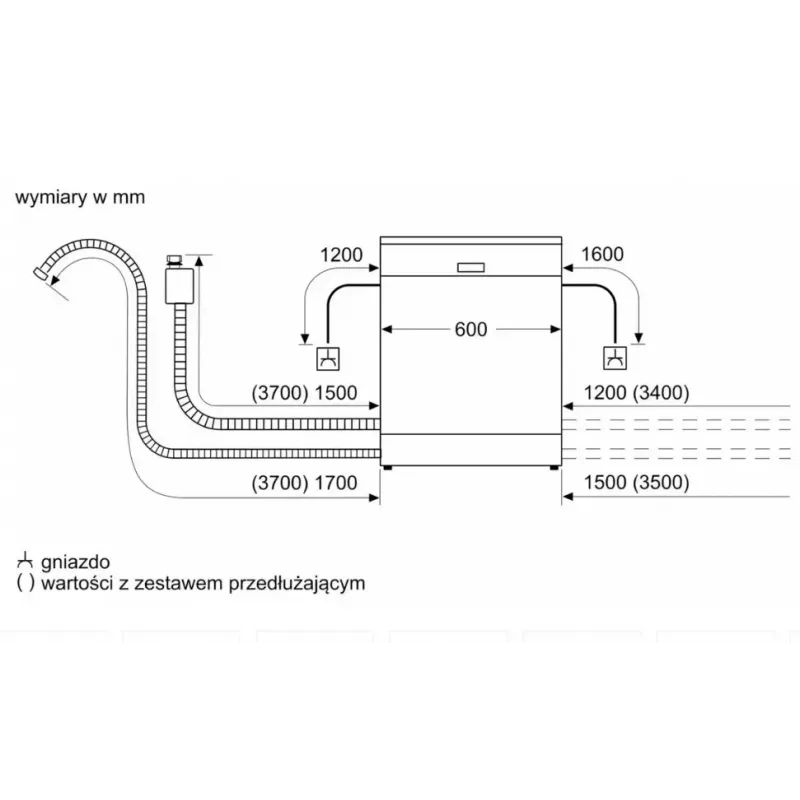

• Hoses and cord: Inlet hose 1.65 m, outlet hose 1.90 m, cord 1.75 m
• Power: 220–240 V, 50 Hz, connected load 2400 W, current 10 A

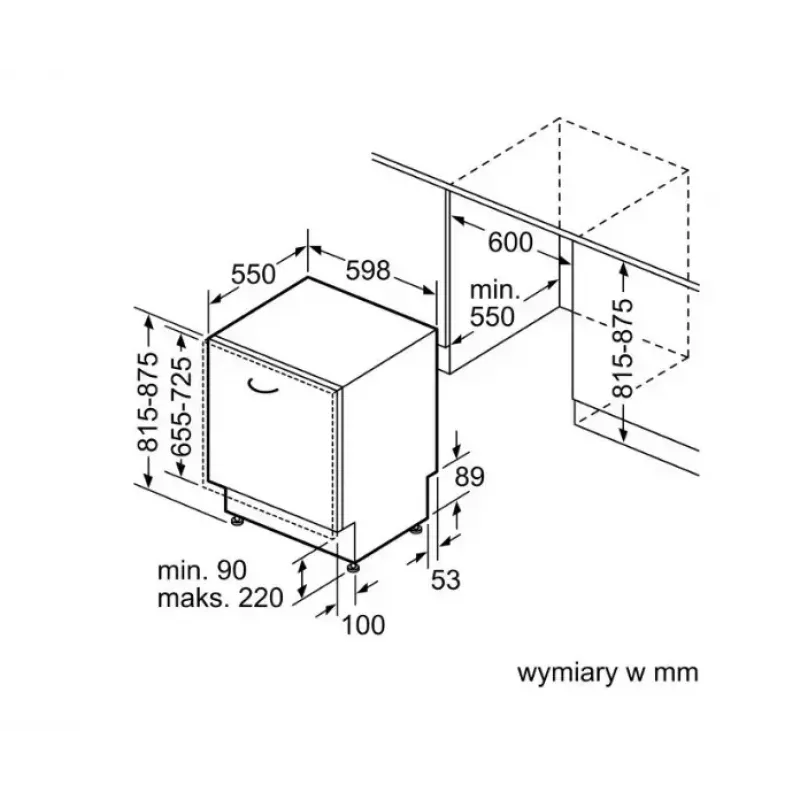

• Dimensions (W×H×D): approx. 598 mm × 815–875 mm (installation height range 81.5–87.5 cm) × 550 mm
• Weight: 33.9 kg

How to use

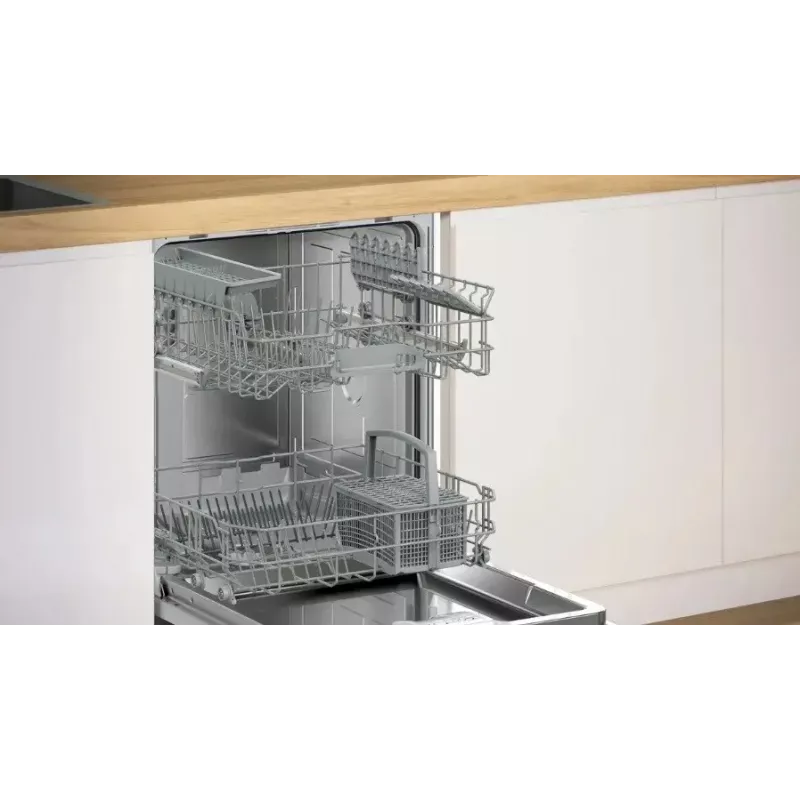

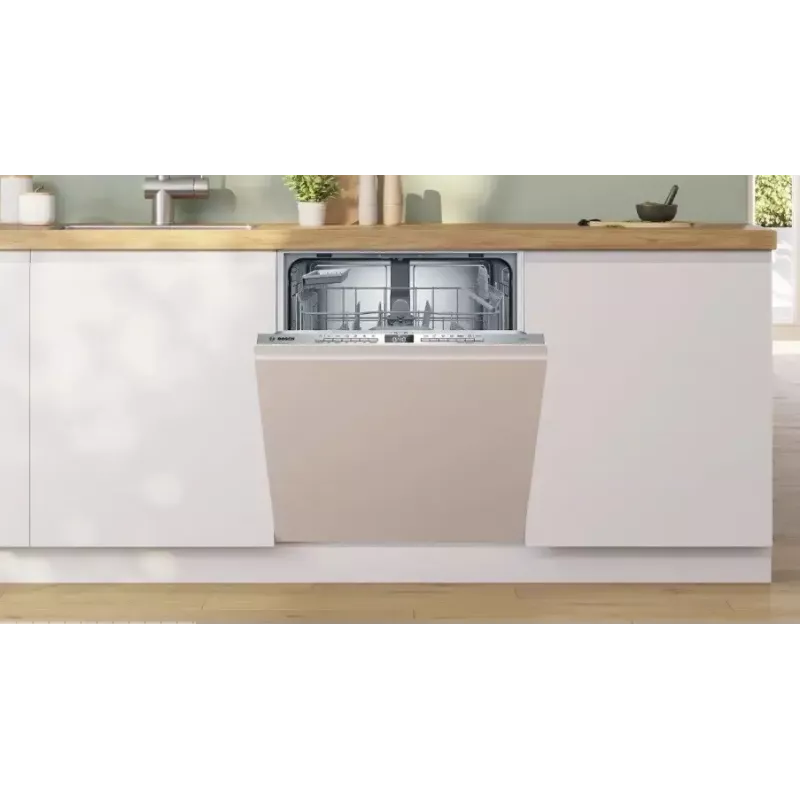

Install the appliance as a fully built-in unit in a 60 cm wide cabinet opening and connect water inlet, outlet hoses and electrical supply according to the installation instructions. Load dishes according to the adjustable baskets and Vario cutlery basket, add detergent and select the appropriate wash program. Use the half-load option for smaller loads, set delayed start up to 24 hours if required, and monitor remaining time on the display. Use Wi‑Fi control for remote program selection and status monitoring where available.

Recommendations

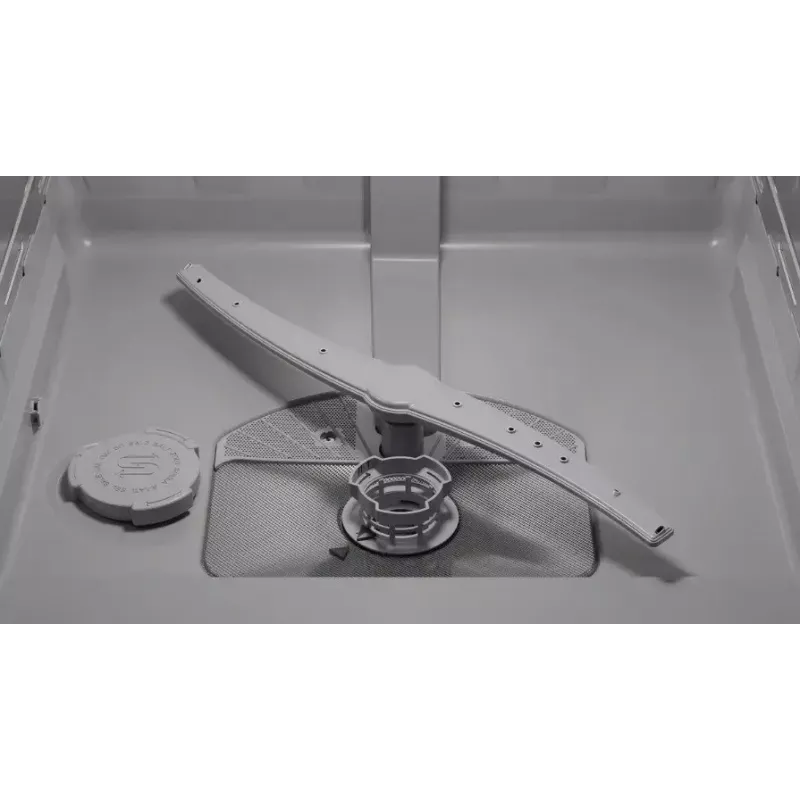

Ensure regular cleaning and maintenance of filters, spray arms and seals; follow the manufacturer’s service instructions to maintain performance and ensure AquaStop protection functions correctly.
