Lavavajillas integrable Bosch Serie 4 SPV4HMX49E – Slimline 45 cm, 10 cubiertos, 44 dB, 6 programas

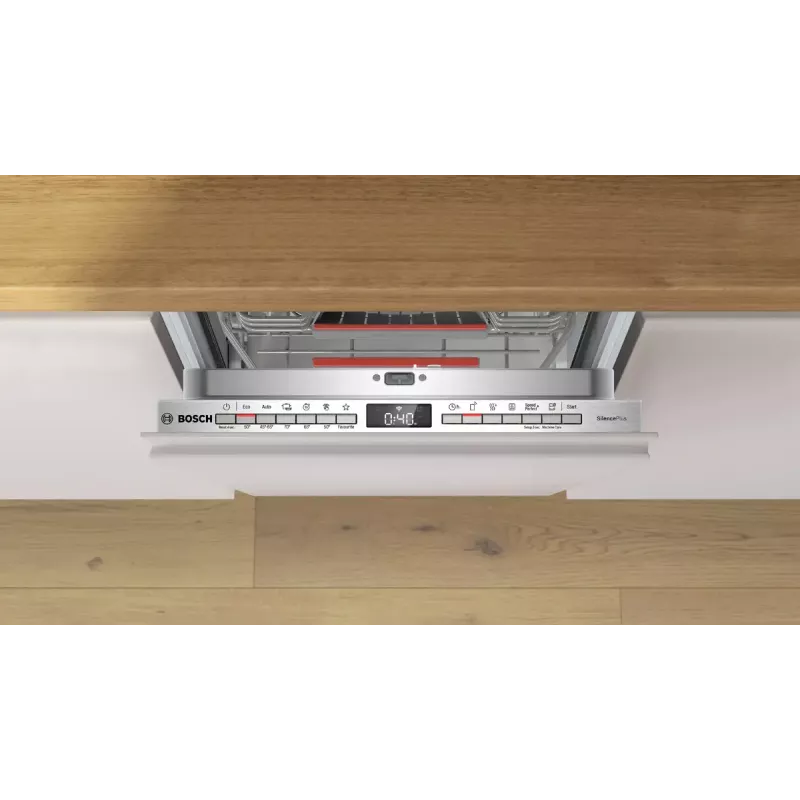

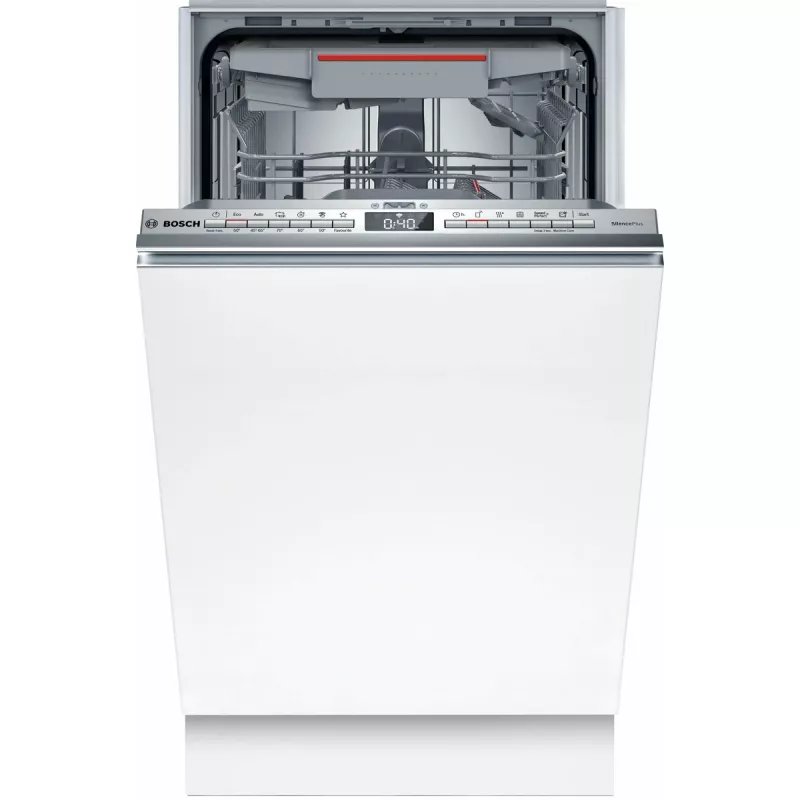

The Bosch Serie 4 SPV4HMX49E is a fully built-in slimline (45 cm) dishwasher designed for compact kitchens where space efficiency and straightforward operation are required. This model fits into a standard 448 mm width cabinet and 550 mm depth, offering 10 place settings capacity with a measured noise level of 44 dB. It includes a stainless steel control panel, heat exchanger drying system, and supports Bosch Home Connect for remote monitoring and program selection. The appliance has an energy efficiency rating of E and uses approximately 9.5 litres of water per standard cycle.

Advantages

The dishwasher combines a small footprint with practical functionality: a slimline design that maximizes installation options while providing six washing programs covering Auto 45–65°C, Eco 50°C, Intensive 70°C and Quick 65°C among others. Heat exchanger drying improves drying performance without open heating elements. A low operational noise level of 44 dB ensures quiet operation. Built-in overflow protection and a floor indicator light increase safety and convenience. Bosch Home Connect allows monitoring and control from a compatible device.

Suitable for

• Small households or apartments with limited kitchen space

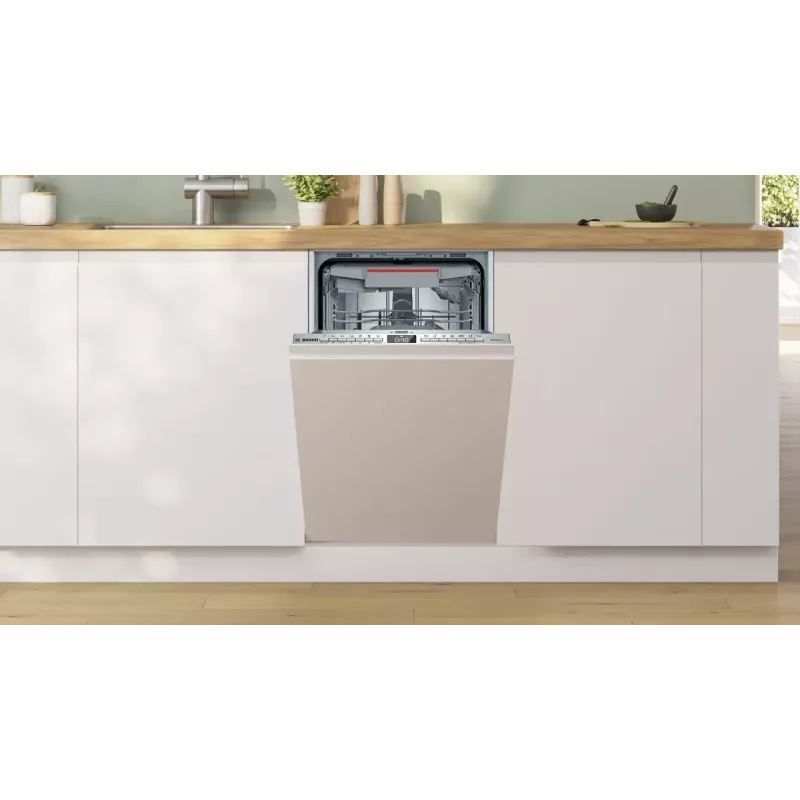

• Users who need a built-in slimline dishwasher for a 45 cm cabinet
• Those seeking quieter operation for open-plan living spaces
• People who want remote monitoring and basic smart features
• Households needing several wash program options for varied crockery

Key specifications

• Capacity: 10 place settings
• Dimensions (approx.): width 448 mm, depth 550 mm, height 815 mm (adjustable feet +60 mm)
• Noise level: 44 dB

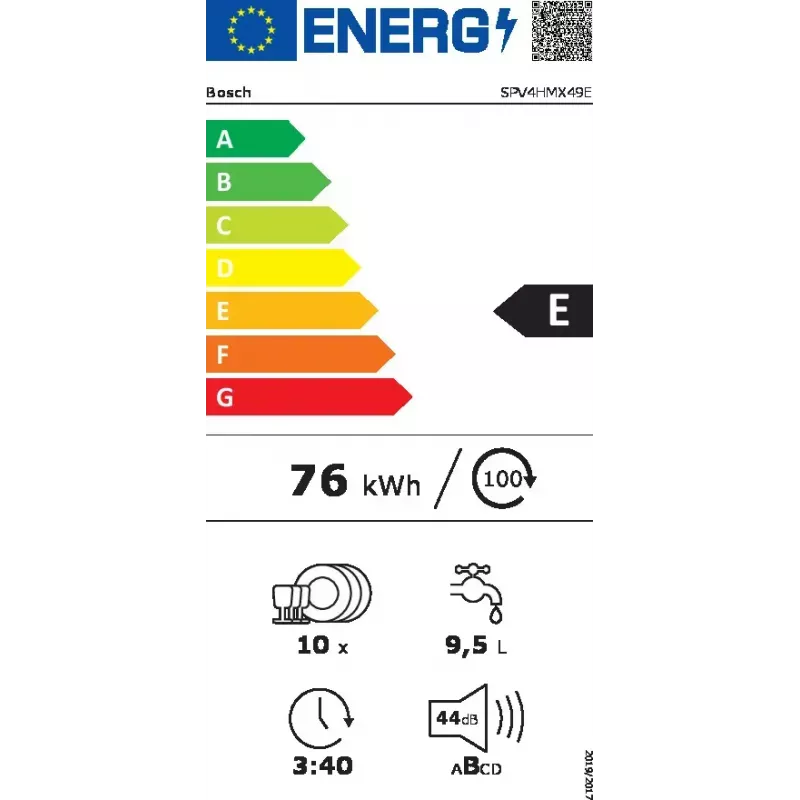

• Energy efficiency class: E
• Water consumption: 9.5 L per cycle (standard program)
• Number of washing programs: 6
• Wash programs: Auto 45–65°C, Eco 50°C, Favorite, Intensive 70°C, Quick 65°C
• Drying system: Heat exchanger
• Delayed start: Yes
• Half-load: Not available

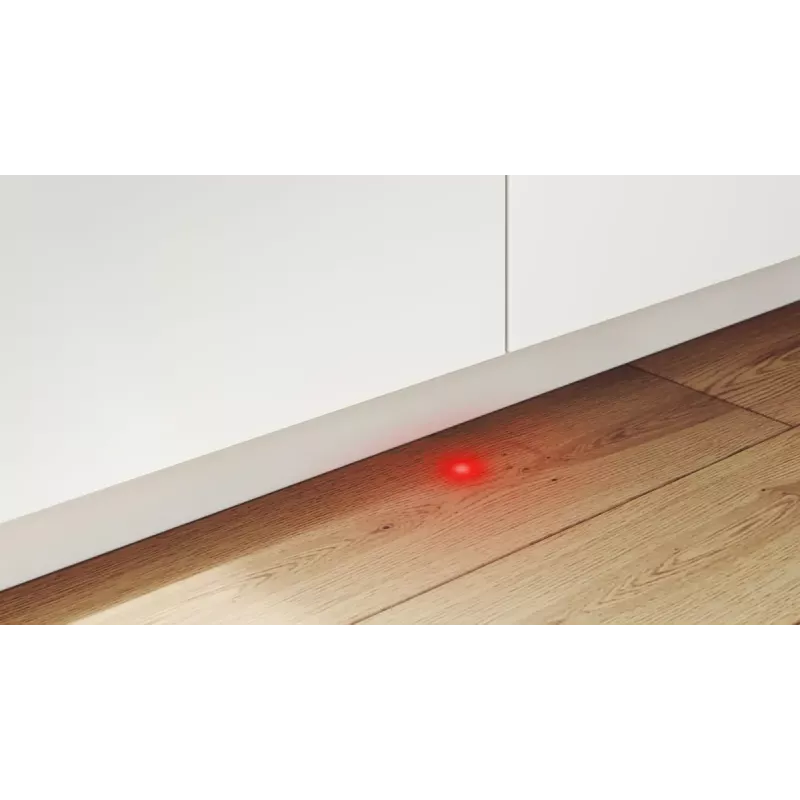

• Safety features: Overflow protection, floor indicator light

How to use

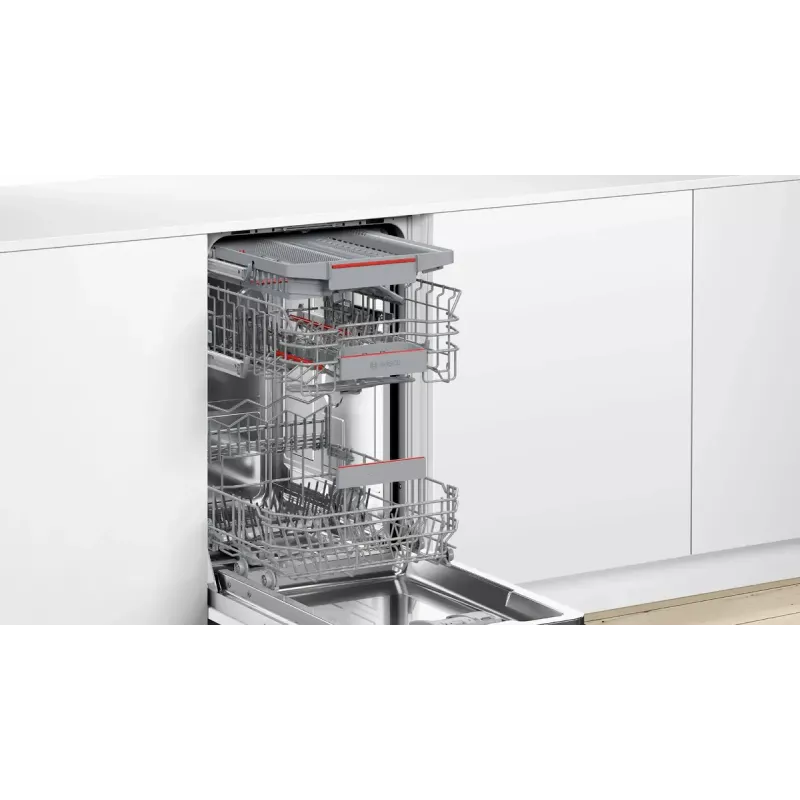

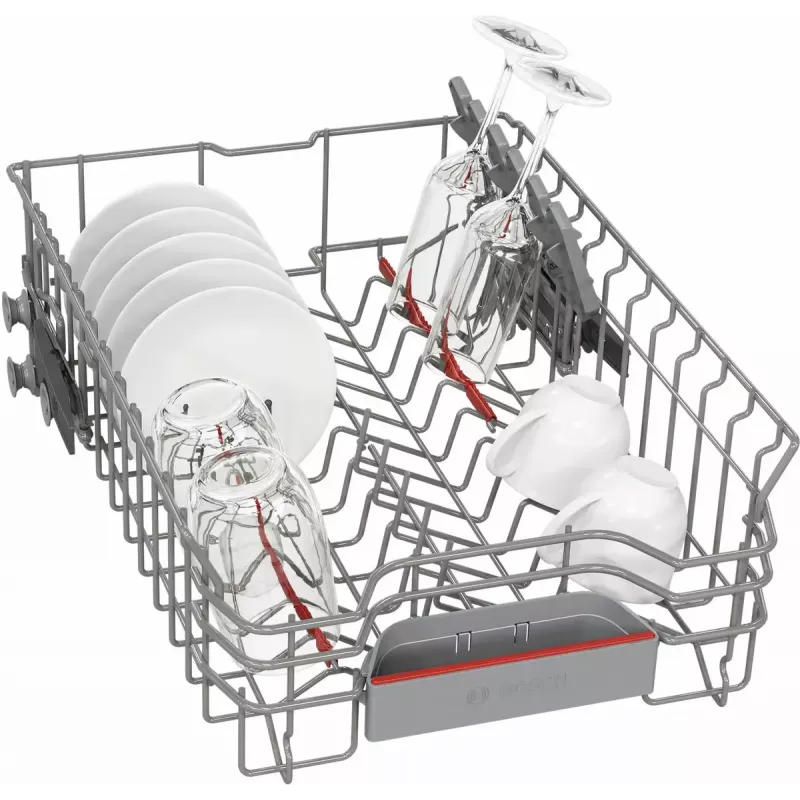

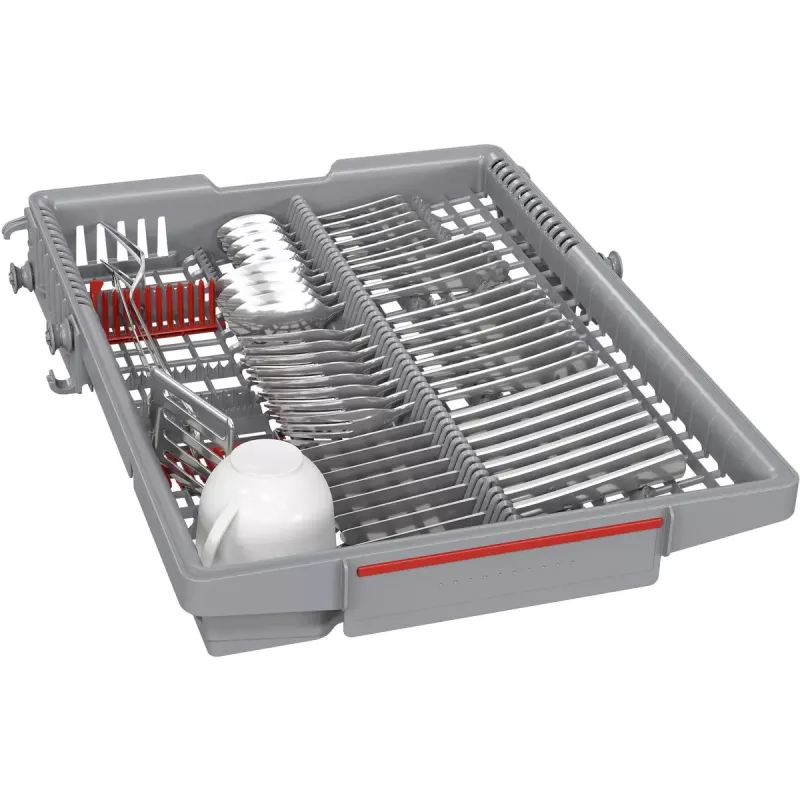

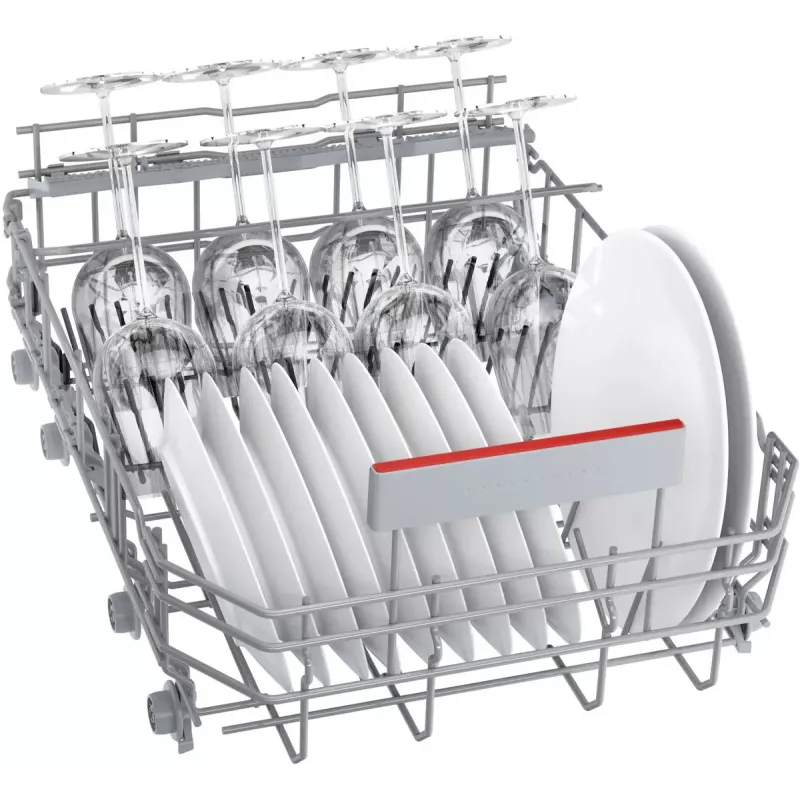

Install the dishwasher into a standard 45 cm built-in cabinet according to the installation manual and connect water, drain and power sources to qualified personnel if required. Load crockery and cutlery into the baskets, taking care to avoid blocking spray arms and to place items according to material and degree of soiling. Select the appropriate program for load size and dirt level—Eco for normally soiled everyday loads, Intensive for heavily soiled pots, and Quick for lightly soiled items. Use recommended dishwasher detergents and follow water hardness settings if applicable. Activate the delayed start feature when required and monitor program progress via the control panel or Bosch Home Connect app where supported.

Recommendations

For best results, pre-clear large food residues, avoid rinsing under running water to save water, and use the heat exchanger drying program for improved energy-efficient drying. Regularly check and clean filters and spray arms, and run a maintenance cycle monthly to prevent build-up. Adjust the baskets and feet during installation to optimize loading and ensure a level fit within the cabinet.
