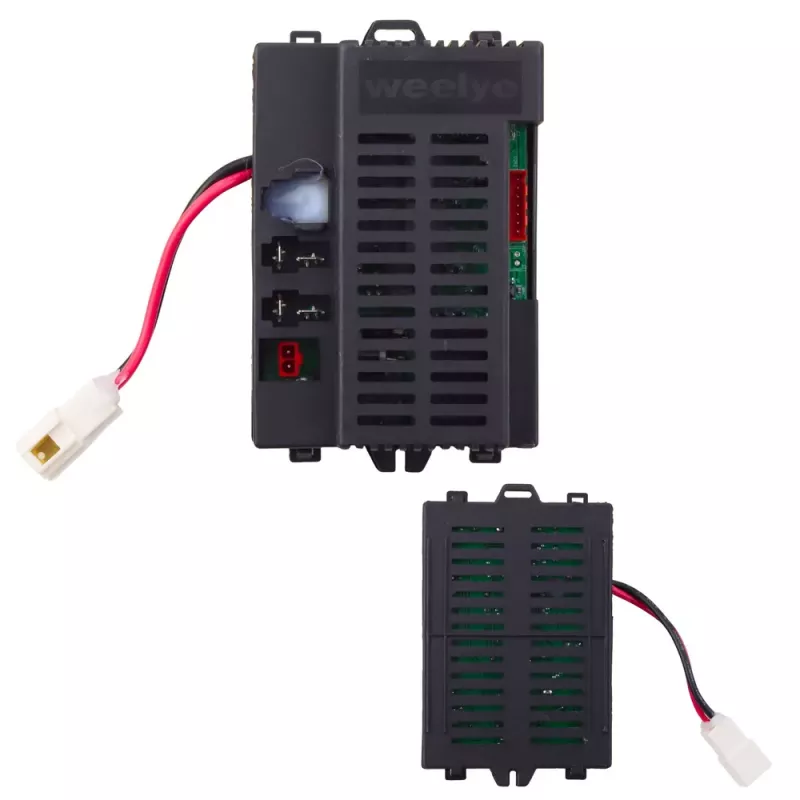

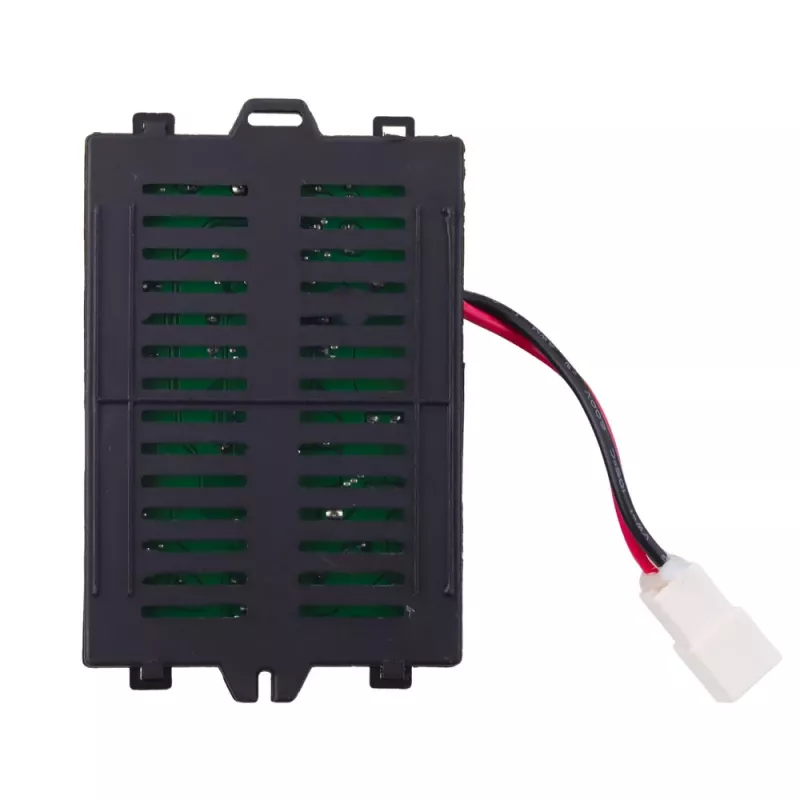

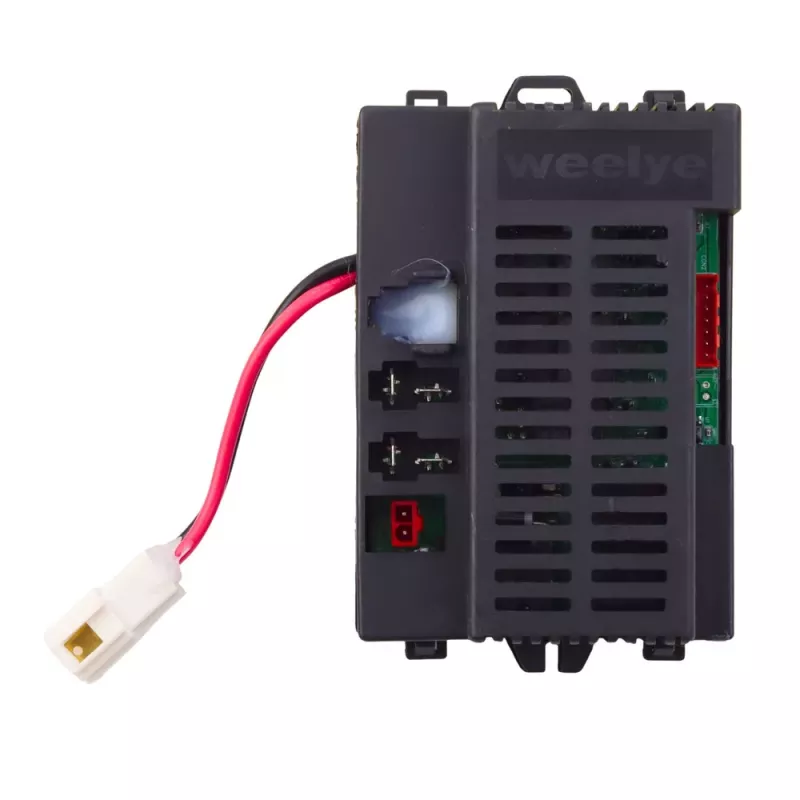

LEAN TOYS Módulo central RX101 24V para coches infantiles eléctricos

The LEAN TOYS RX101 24V Central Module is a high-performance control unit designed for electric ride-on cars. Operating at 24V DC, this module provides reliable remote control functionality using KEELOQ® dynamic code encryption for enhanced security. It is compatible with ELMES Elektronik 433.92 MHz transmitters and supports up to 112 transmitters, making it ideal for multi-user applications.

Advantages

This central module offers flexible operating modes including monostable, bistable, and timed, with adjustable timing from 1 second to 4 hours. The relay output with NO/NC contacts allows integration with various electrical systems. Its low standby current consumption (20 mA) ensures energy efficiency, while the LED indicators provide clear status feedback for power, relay, and programming.

Suitable for

• Electric ride-on cars and toys
• Remote control systems requiring 24V operation
• Applications needing secure dynamic code encryption
• Multi-transmitter setups (up to 112 transmitters)

Key specifications

• Operating Voltage: 24V DC (range 20-30V DC)
• Radio Frequency: 433.92 MHz
• Number of Channels: 1
• Output Type: Relay (NO/NC contacts)
• Relay Contact Rating: 1A / 30V DC, 0.5A / 125V AC
• Transmitter Memory Capacity: 112 transmitters
• Operating Modes: Monostable, Bistable, Timed
• Monostable Time Range: 1 second to 4 hours (adjustable)
• Current Consumption: 20 mA (standby), 40 mA (relay ON)
• Modulation: ASK (Amplitude Shift Keying)
• Operating Temperature: -20°C to +55°C
• Security Protocol: KEELOQ® Dynamic Code
• Indicators: LED for power, relay status, and programming
• Connection Type: Screw Terminals
• Enclosure Type: Open PCB Module

Recommendations

For optimal performance, use only compatible ELMES Elektronik 433.92 MHz transmitters. Ensure the power supply is within the specified range (20-30V DC) to avoid damage. The module is designed for indoor use; protect from moisture and extreme temperatures.
