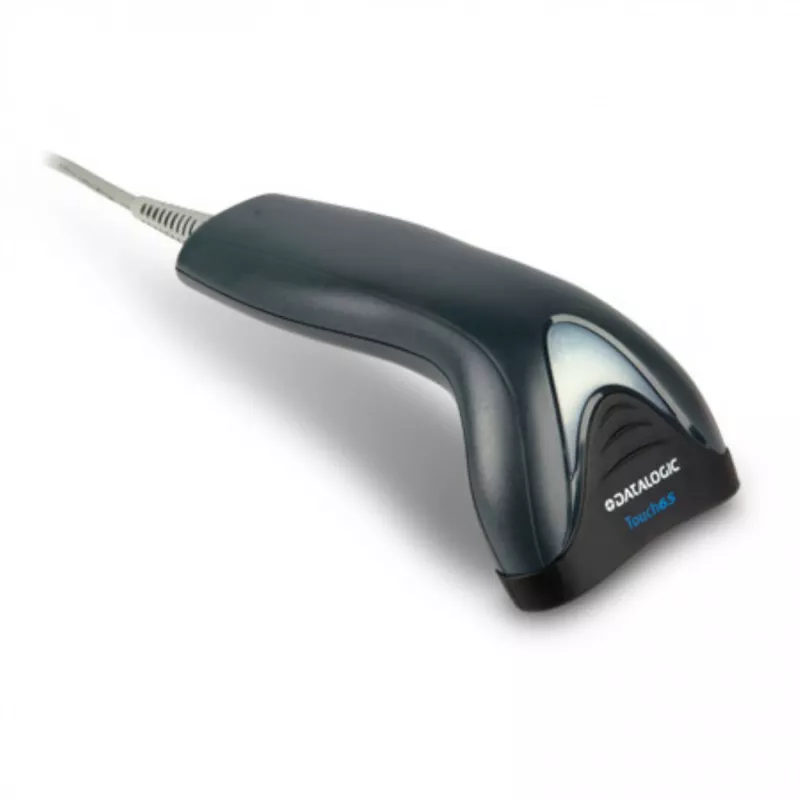

Lector de códigos de barras Datalogic Touch 90 Lite negro

The Datalogic Touch 90 Lite Black is a compact barcode scanner with a 90 mm reading window designed to capture wide barcodes. It supports USB connectivity, has a 640 nm illumination wavelength, and a lightweight construction of 153 g. The device offers tilt and pitch reading angles of -45° to 45° and -65° to 65° respectively, an IP30 protection rating, and operates from a 5 V input with typical power consumption of 100 mA.

Advantages

The Touch 90 Lite Black provides a wide reading window for larger or wide-format barcodes while maintaining a compact, lightweight design. USB connectivity ensures simple integration with POS systems and computers. The scanner's specified tilt and pitch angles improve flexibility when positioning labels for quick reads, and the IP30 rating gives basic protection in typical indoor retail or office environments.

Suitable for

• Retail point-of-sale systems with wide barcode labels
• Inventory management where larger or wide-format barcodes are used
• Office or light industrial scanning tasks requiring a compact USB scanner

Key specifications

• Model: Datalogic Touch 90 Lite Black (TD1120-BK-90K1)
• Reading window: 90 mm (3.5 in) for wide barcodes
• Illumination wavelength: 640 nm
• Reading angles: Tilt -45° to 45°, Pitch -65° to 65°
• Interface: USB
• Protection rating: IP30
• Power: 5 V input, 100 mA typical
• Weight: 0.153 kg
• Colour: Black
• Compliance: RoHS

How to use

Connect the scanner to a host device using the USB interface. Position the barcode within the 90 mm reading window and align it within the scanner's tilt and pitch ranges for optimal detection. Move items or the scanner steadily across the code until a successful read is indicated by the scanner’s feedback. Cables, power cords and additional supplies are sold separately and should be chosen according to the host system requirements.

Recommendations

Use the Touch 90 Lite Black in well-lit indoor environments and ensure barcodes are within the specified reading window and angular ranges. For integration with point-of-sale or inventory software, verify USB connectivity and any required drivers or configuration settings on the host system.
