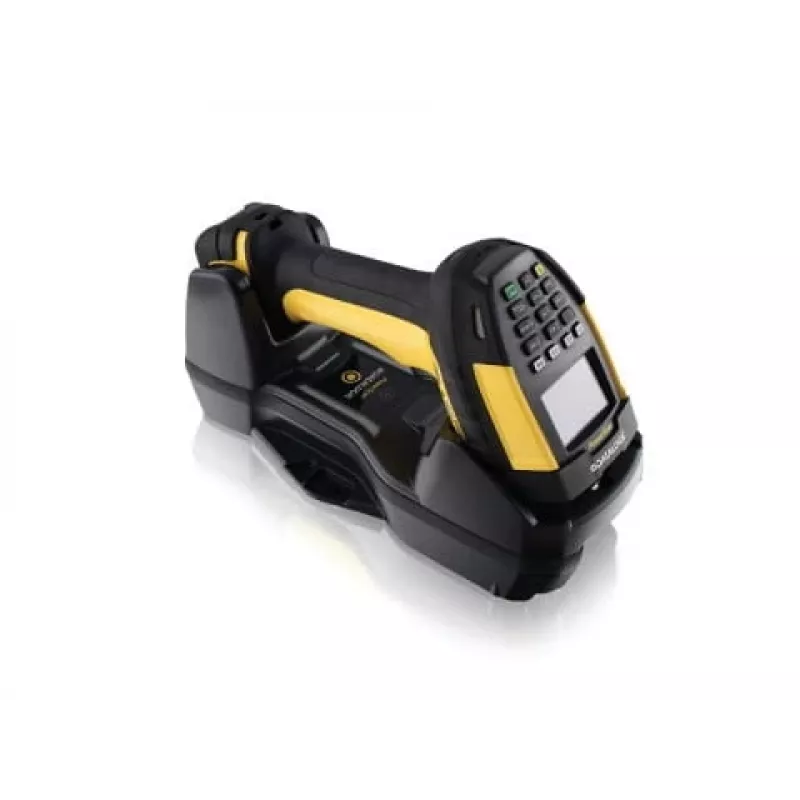

Lector de códigos de barras de mano Datalogic PM9600-DKAR433RK10 1D/2D inalámbrico negro amarillo

The Datalogic PM9600-DKAR433RK10 is a handheld industrial barcode scanner for reading 1D and 2D codes. Built to IP65 and IP67 standards, it resists dust and water and survives drops to hard concrete. The device is available in corded and cordless variants and supports multiple connectivity options via exchangeable modules in the cradle or inline for wired configurations. Wireless charging and a robust trigger mechanism contribute to reliable operation in manufacturing, intralogistics and retail environments.

Advantages

The PM9600 series offers a rugged housing rated for industrial use, wireless charging to eliminate failure-prone charging contacts, and a trigger tested for millions of actuations. Exchangeable communication modules and plug-and-play cradle configuration simplify integration with PCs, industrial PCs, tablets or PLCs and allow switching between interfaces such as RS-232, USB/USB-C, Ethernet, EtherNet/IP and PROFINET. Multiple reading performance levels are available, including standard, high-performance and document-capture models, and cordless variants provide bidirectional radio feedback or Bluetooth® 5.0 pairing.

Suitable for

• Traceability in manufacturing and assembly lines
• Intralogistics and warehouse scanning
• Retail point-of-sale and back-of-store operations
• Quality control and document capture (color imaging model)

Key specifications

• Reads 1D and 2D barcodes
• Wireless range up to 150 m (model-dependent)
• Battery: 3350 mAh Lithium‑Ion (removable/rechargeable)
• Ingress protection: IP65 and IP67
• Drop resistance: tested to 2.5 m onto concrete
• Wireless charging (inductive) supported by compatible cradle
• Connectivity: configurable between RS-232, USB/USB-C, Ethernet, EtherNet/IP, PROFINET via cradle or inline modules
• Optional models: standard range, high performance (dual camera), document capture (color imaging), Auto Range (AR) and DPX DPM-targeted variants

How to use

Power on the scanner and pair it with the chosen base station or connect via the wired interface selected in the cradle. Aim the scanner at the barcode and pull the trigger; the device provides white light illumination and confirms successful reads with an on-device green spot and visual feedback on the OLED display. For cordless operation, keep the scanner charged in its inductive cradle when not in use and monitor battery health via the cradle or device indicators.

Recommendations

Use the wireless charging cradle to avoid degraded performance caused by dirty or damaged charging contacts. Choose the performance tier (standard, high-performance, or document capture) that matches your typical scan distance and application needs, and select the AR or DPX variants for long-range or direct part marking environments respectively.
