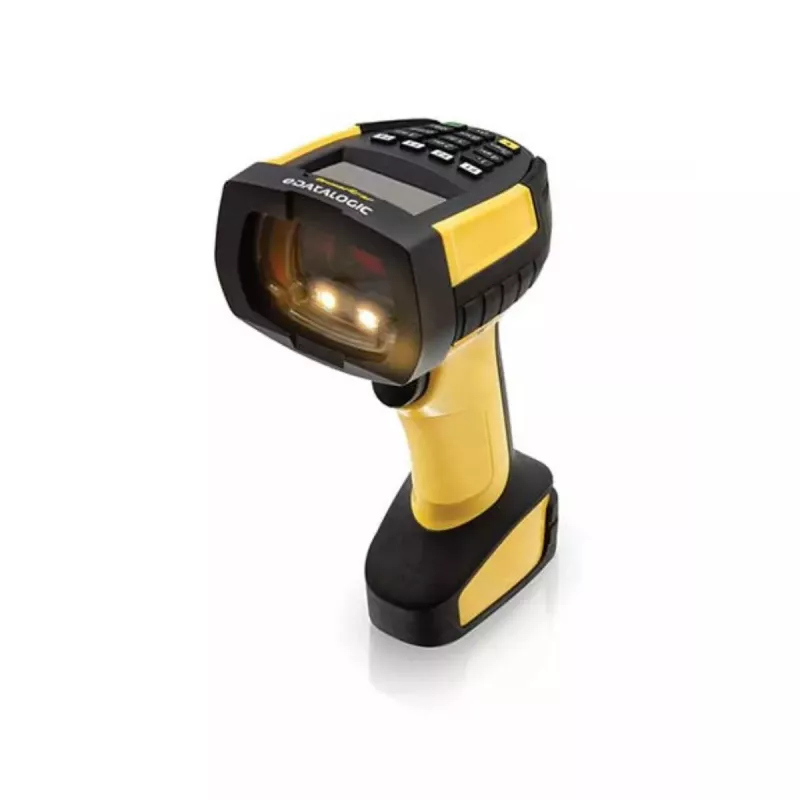

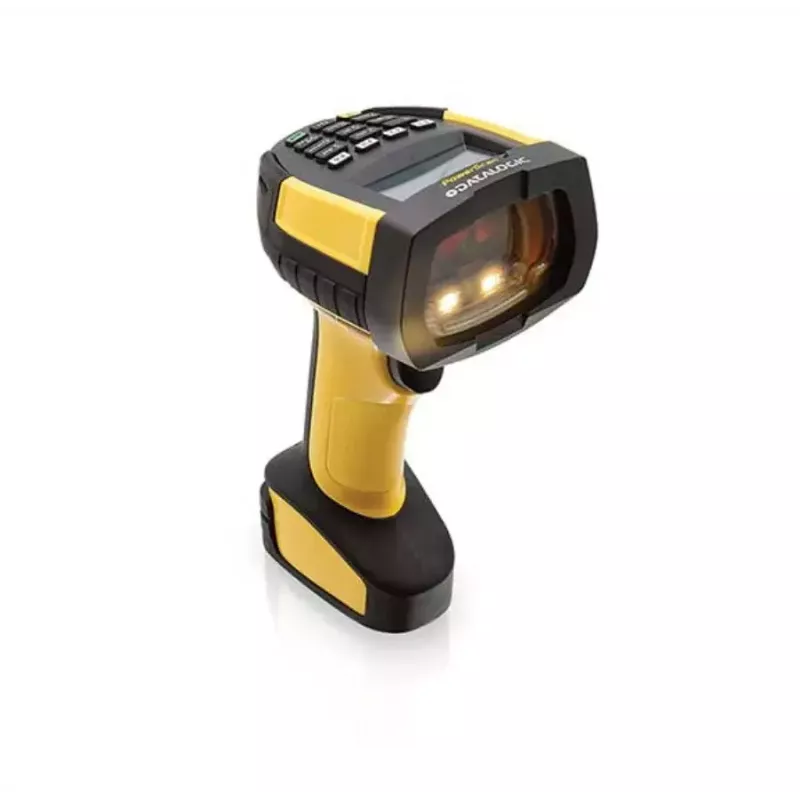

Lector de códigos de barras de mano Datalogic PM9600-DKHP433RB 1D/2D láser negro amarillo

The Datalogic PowerScan PM9600-DKHP433RB is a high-performance handheld barcode reader for 1D and 2D codes designed for industrial environments. Operating at 433 MHz with both wired and wireless options, the device offers rugged protection with IP65/IP67 ratings, removable Lithium-Ion battery and a bright OLED display with a 16-key keypad. It is built to withstand harsh conditions, including repeated drops and exposure to dust and water.

Advantages

The PowerScan PM9600 delivers industrial-grade durability and long-term reliability: it resists 2.5 m drops, is rated IP65/IP67 for dust and water protection, and uses wireless charging in the cradle to avoid failure from corroded contacts. Modular communication modules support RS-232, USB, USB-C, Ethernet, Ethernet I/P or Profinet for easy integration. The device family offers three performance levels including a High Performance dual-camera model for extended range and enhanced read rates, plus a Document Capture option for color imaging. Smart battery management and cradle diagnostics reduce total cost of ownership.

Suitable for

• Manufacturing traceability and assembly line scanning
• Warehouse and intralogistics scanning and inventory control
• Retail backroom and shipping/receiving operations
• Quality control and document capture when color imaging is required

Key specifications

• Model: Datalogic PowerScan PM9600-DKHP433RB
• Code types: 1D and 2D barcodes
• Wireless: 433 MHz (STAR proprietary narrow-band available), up to 16 devices per cradle
• Connectivity: configurable modules — RS-232, USB, USB-C, Ethernet, Ethernet I/P, Profinet
• Protection: IP65 and IP67
• Battery: removable Lithium‑Ion; wireless charging in cradle

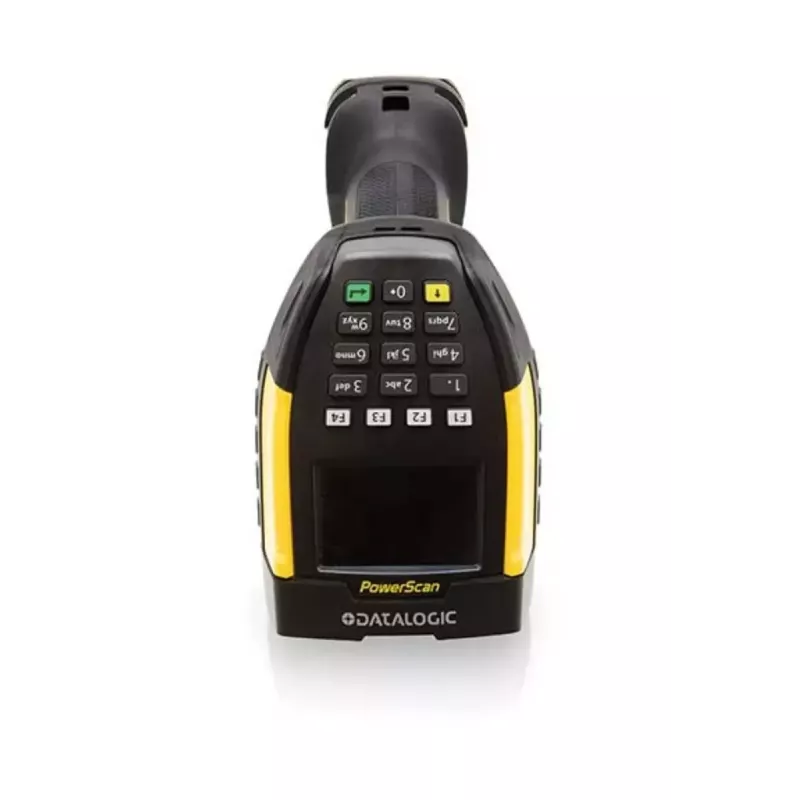

• Keypad/Display: 16-key keypad, bright OLED display
• Drop resistance: tested to 2.5 m onto concrete
• Power consumption: typical 15 W

How to use

Install the appropriate communication module in the cradle or connect the wired interface required by your host system. Charge the removable Lithium‑Ion battery in the wireless cradle before first use. Use the 16-key keypad and OLED display to navigate device settings and view scan feedback. Aim the scanner at 1D or 2D barcodes and pull the trigger; successful reads provide a green spot and on-screen confirmation. For longer distances, use the High Performance dual-camera variant; for color capture tasks, use the Document Capture model. Follow workplace procedures for handling rugged devices and replace batteries according to the battery health indicator.

Recommendations

Use the STAR narrow-band radio in high-density industrial environments to avoid interference from Wi‑Fi or Bluetooth devices, configure the cradle modules to match your network standard for plug-and-play integration, and enable cradle diagnostics and smart battery features to plan predictive maintenance and minimize downtime.
