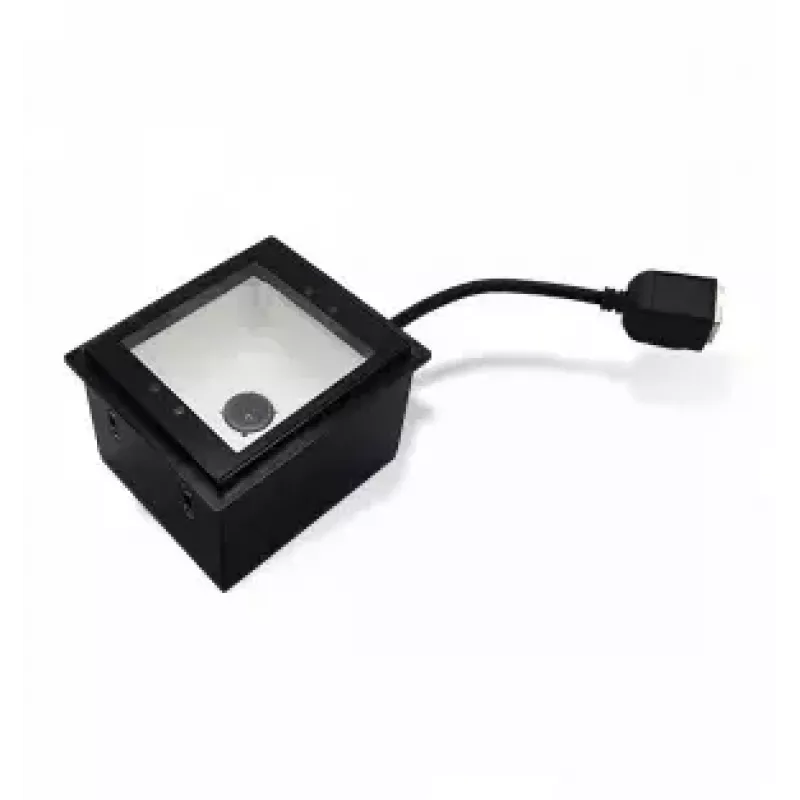

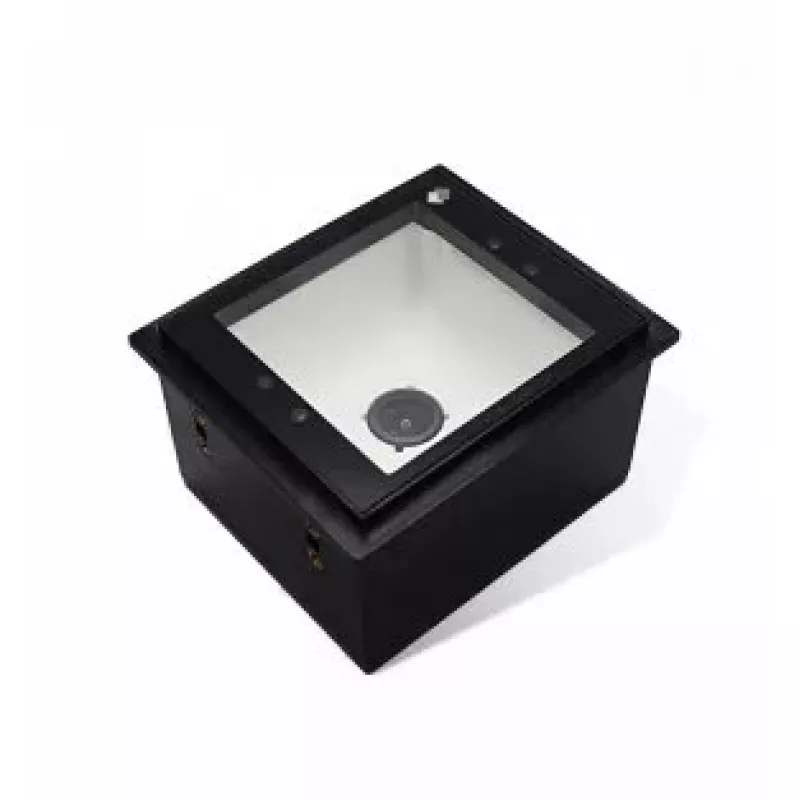

Lector de códigos de barras fijo Newland FM30

The Newland FM3080 Hind is a compact fixed barcode reader from the FM30 series, designed for reliable 1D and 2D barcode capture in kiosks, POS terminals and other fixed installations. Equipped with Newland's sixth-generation UIMG® technology and a CMOS sensor, the FM3080 Hind handles on-screen barcodes and high-density codes while offering wired USB connectivity, low power consumption and IP65 protection against dust and water.

Advantages

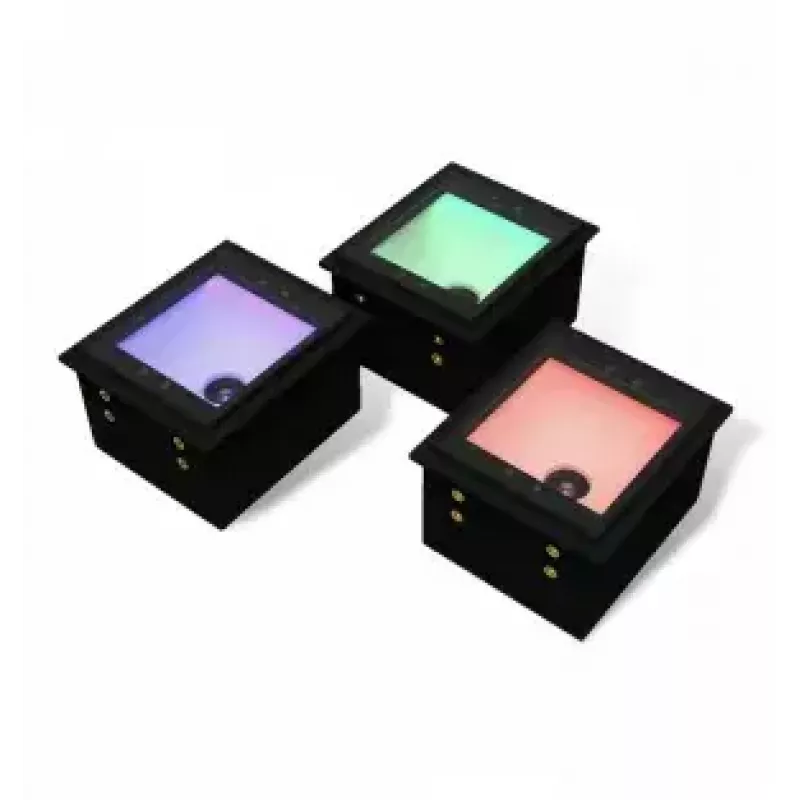

The FM3080 Hind delivers fast on-screen barcode capture through a CPU-based imaging engine optimized for data-dense codes. A white scanning window can illuminate each scan in up to four selectable colors to provide instant visual feedback for successful reads or different barcode types. Its small footprint (78.7 x 67.7 x 47.5 mm) and light weight (approximately 132 g) make it easy to integrate into kiosks and POS setups. An IR sensor combined with a light sensor improves trigger sensitivity for presented barcodes, while an anti-reflection coating on the underside of the glass reduces glare when reading screens.

Suitable for

• Kiosk and self-service terminals
• Point of sale counters in retail
• Access control and ticket validation
• Fixed scanning stations in logistics and warehousing

Key specifications

• Scanner type: 1D/2D
• Sensor type: CMOS
• Supported 1D codes: ISBN, UPC-E, UPC-A, Plessey, Matrix 2 of 5, Interleaved 2 of 5, Industrial 2 of 5, ITF-6, ITF-14, ISSN, GS1 DataBar, EAN-8, EAN-13, Code 93, Code 39, Code 128, Code 11, Codabar
• Supported 2D codes: QR Code, Aztec Code, Data Matrix, Micro QR Code, PDF417
• Connectivity: Wired (USB)
• Power: 5 V, typical current 250 mA
• Ingress protection: IP65 (dust and water resistant)
• Dimensions: 78.7 x 67.7 x 47.5 mm
• Weight: 0.132 kg
• Colour: Black
• MPN: FM3080V2-20

How to use

Install the FM3080 Hind in a fixed position within the kiosk or at the POS so the scanning window faces the expected presentation area. Connect the device via the wired USB interface to the host system and ensure power is supplied (5 V). Present barcodes—including on-screen codes—within the scanner's field of view; the IR and light sensors will detect the presence of a barcode and trigger the scan. Configure the device using the vendor's setup tools to adjust illumination color, decode preferences and any required symbology settings.

Recommendations

For reliable on-screen reads, enable the anti-reflection option and choose a scan-window illumination color that contrasts with the device surroundings. Keep the glass surface clean and ensure the scanner is mounted to minimize ambient glare and direct reflections from external light sources.
