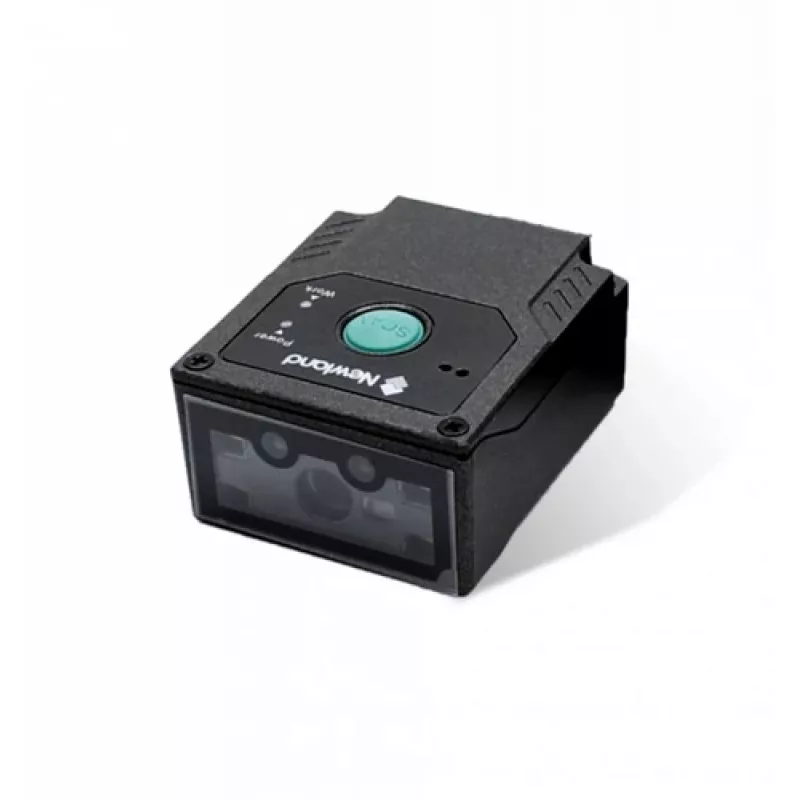

Lector de códigos de barras fijo Newland FM430 Barracuda 1D/2D CMOS con cable USB negro

The Newland FM430 Barracuda is a fixed mount barcode reader designed for fast and reliable capture of 1D and 2D codes. Equipped with a megapixel CMOS camera, IR sensor, light sensor and white illumination, the FM430 reads barcodes from labels and mobile screens and is available with an optional laser aimer. Its compact wired USB design and IP54 rating allow installation in kiosks, production lines and other semi-protected indoor or outdoor locations.

Advantages

The FM430 Barracuda delivers quick decoding of both small and standard 1D/2D barcodes thanks to its high-resolution camera and intelligent programming that adjusts lighting automatically. An IR sensor and strong white light maintain reliable performance in low-light conditions, while the unit supports both handsfree automatic scanning and manual trigger operation. With an IP54 enclosure rating and a lightweight form factor, the scanner is suitable for fixed installations exposed to dust and moisture without impacting scanning performance.

Suitable for

• Self-service kiosks and ticketing machines
• Parcel and express delivery sorting points
• Access control, loyalty and mobile payment terminals
• Postal services and transport boarding/pass scanning
• Production line fixed scanning and gaming cash-out stations

Key specifications

• Imaging: megapixel CMOS camera for 1D and 2D barcodes
• Connectivity: wired USB interface (includes 2 m USB extension cable)
• Illumination: adjustable white light with IR sensor; green LED aimer (standard) and optional red laser cross aimer
• Operation modes: handsfree fixed scanning or manual trigger
• Environmental protection: IP54 rating for dust and splash resistance
• Weight: approximately 75 g

How to use

Install the FM430 in a fixed position and connect it to a host system via the USB interface. Configure the scanner for either handsfree automatic reading or manual trigger, and adjust mounting distance and aiming based on the target barcode size and application. The device’s programming and sensors will automatically adapt illumination to optimize read performance from labels and mobile device screens.

Recommendations

The scanner performs best when mounted at a stable angle and within the recommended read range for the expected barcode sizes; enable the IR and light sensors for reliable operation in variable lighting and consider the optional laser aimer to assist inexperienced users.
